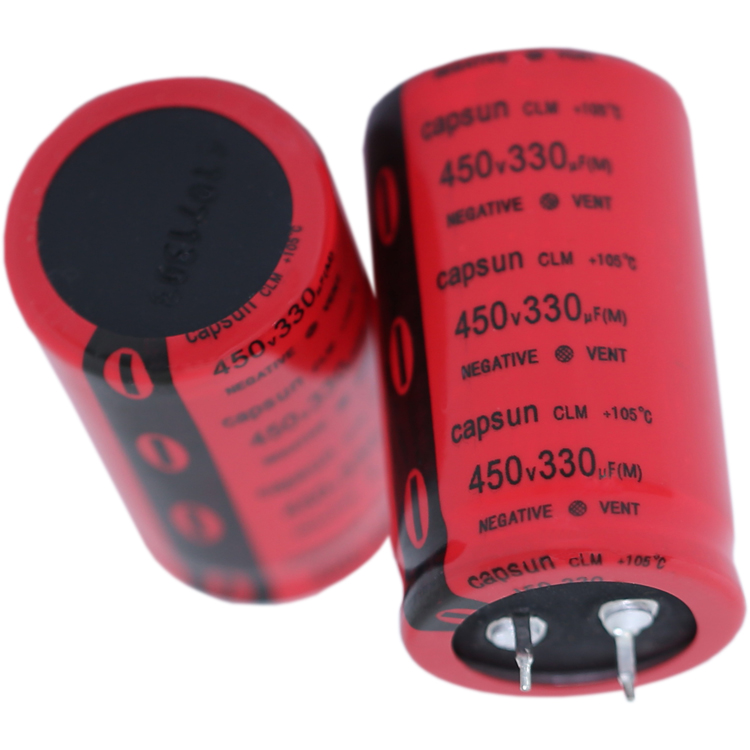

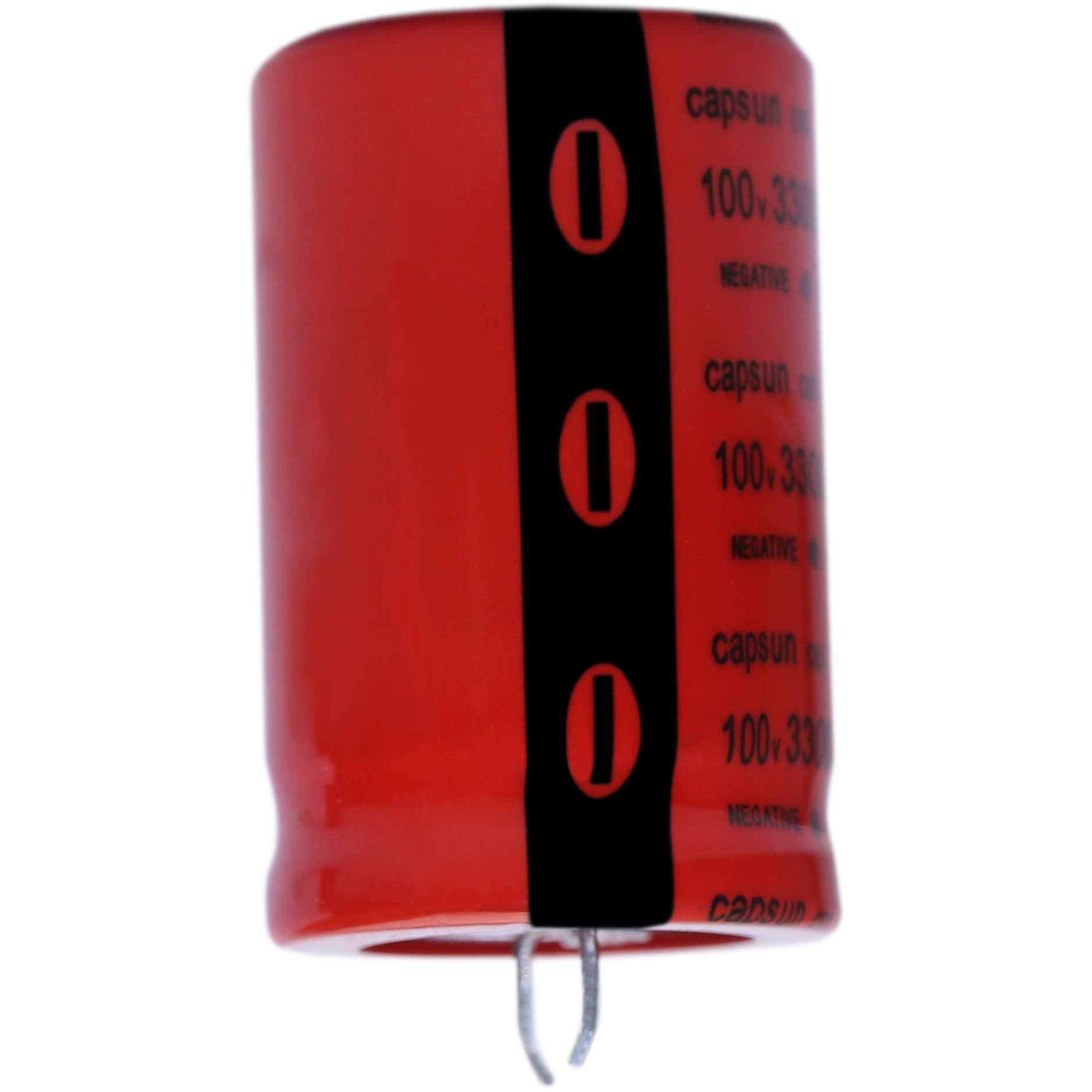

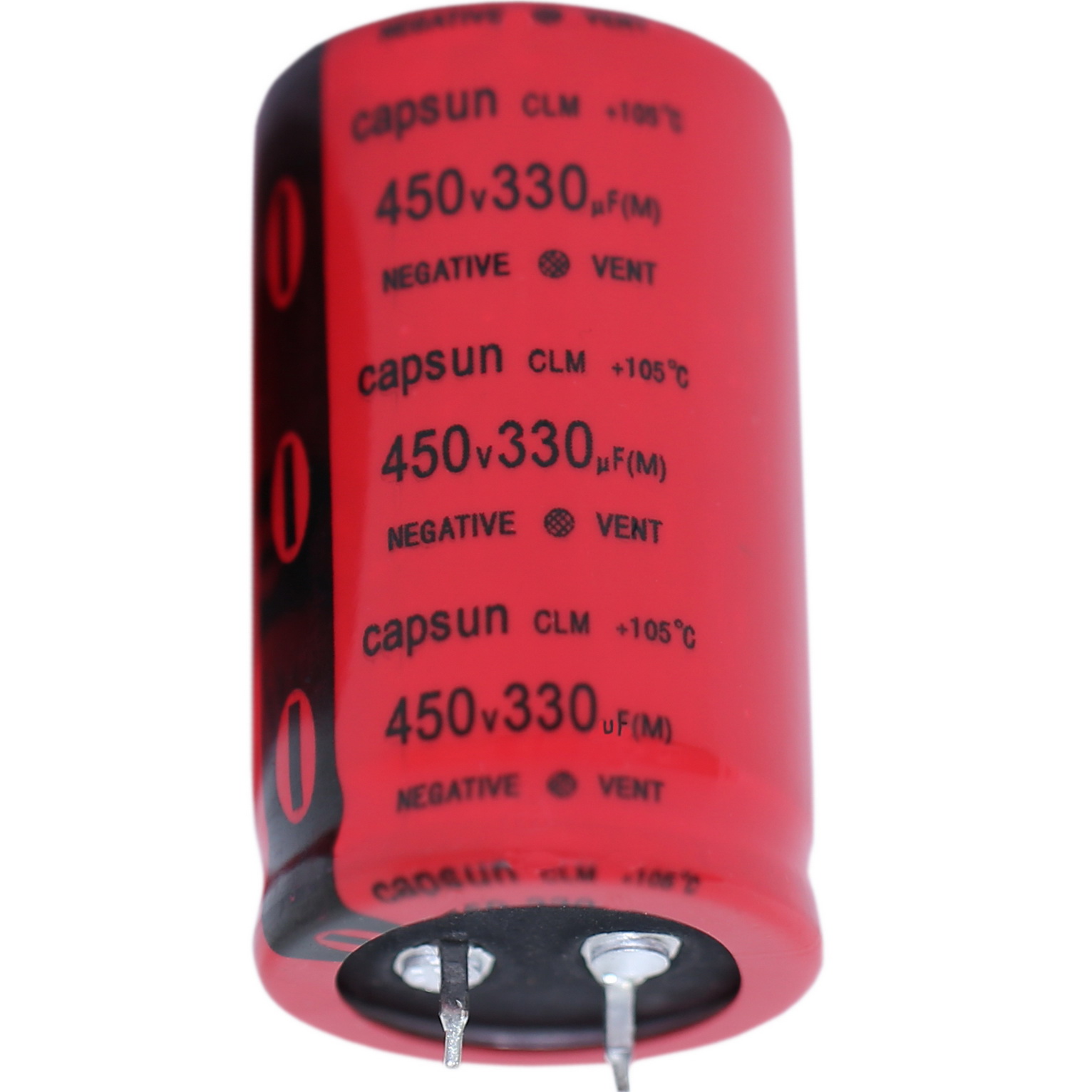

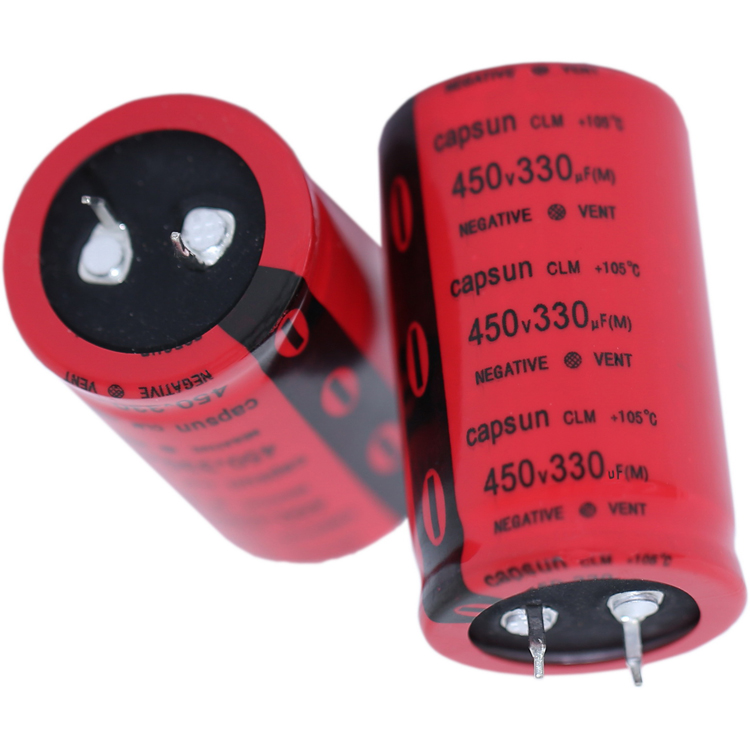

long life, downsized aluminum electrolytic capacitor-足球看盘软件

105℃ 10000hours

items		characteristics
category temperature range		-25~ 105℃
rated voltage range		16~550vdc
capacitance tolerance		± 20%（m）                                                           20℃、120hz
leakage current		i=0.01cv or 5ma,whichever is smaller i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（max）		rated voltage（vdc） 160v～400v 420v～450v tanδmax 0.15 0.20
low temperature characteristics		rated voltage（vdc） 160v～400v 420v～500v z(-25℃)/z( 20℃) 4 8
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 10,000 hours at 105℃
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value

srandrad ratings

wv [vdc] cap [μf] case size d x l [mm] esr 120 hz 20℃[mω] ripple current ams/105℃, 120hz par t no. 16v 20sv 4700 22×20 0.160 1.60 clm160hzn472mp20 4700 22×25 0.160 1.77 clm160hzn472mp25 6800 22×25 0.110 2.60 clm160hzn682mp25 6800 25×20 0.110 1.80 clm160hzn682mq20 8200 22×25 0.090 3.10 clm160hzn822mp25 10000 22×30 0.075 3.80 clm160hzn103mp30 10000 25×25 0.143 3.80 clm160hzn103mq25 10000 30×20 0.084 2.40 clm160hzn103mr20 12000 22×30 0.119 4.50 clm160hzn123mp30 12000 25×25 0.119 4.50 clm160hzn123mq25 15000 22×35 0.054 5.30 clm160hzn153mp35 15000 25×30 0.054 5.30 clm160hzn153mq30 15000 35×20 0.055 3.20 clm160hzn153ma20 18000 22×40 0.045 5.60 clm160hzn183mp40 18000 25×30 0.045 5.60 clm160hzn183mq30 22000 22×45 0.065 6.10 clm160hzn223mp45 22000 25×35 0.065 6.10 clm160hzn223mq35 22000 30×30 0.065 6.10 clm160hzn223mr30 27000 25×45 0.031 6.30 clm160hzn273mq45 27000 30×35 0.031 6.30 clm160hzn273mr35 33000 25×50 0.025 6.80 clm160hzn333mq50 33000 30×40 0.025 6.80 clm160hzn333mr40 33000 35×30 0.025 6.80 clm160hzn333ma30 39000 30×45 0.022 6.95 clm160hzn393mr45 39000 35×35 0.022 6.95 clm160hzn393ma35 47000 30×50 0.030 7.50 clm160hzn473mr50 47000 35×40 0.030 7.50 clm160hzn473ma40 56000 35×45 0.020 8.70 clm160hzn563ma45 56000 40×40 0.022 9.00 clm160hzn563mu40 68000 35×50 0.018 9.00 clm160hzn683ma50 82000 35×63 0.016 10.00 clm160hzn823ma63 82000 40×50 0.016 10.30 clm160hzn823mu50 100000 35×80 0.015 11.00 clm160hzn104ma80 100000 40×63 0.018 11.40 clm160hzn104mu63 120000 35×105 0.014 12.81 clm160hzn124maa5 120000 40×80 0.017 12.40 clm160hzn124mu80 120000 50×50 0.014 13.17 clm160hzn124mc50 150000 50×63 0.012 14.40 clm160hzn154mc63 180000 40×105 0.013 14.85 clm160hzn184mua5 180000 50×80 0.011 15.69 clm160hzn184mc80 220000 50×92 0.010 16.73 clm160hzn224mc92 270000 50×105 0.009 17.79 clm160hzn274mca5 330000 50×130 0.008 18.31 clm160hzn334mcd0

25v 32sv 3300 22×20 0.177 1.60 clm250hzn332mp20 3300 22×25 0.161 1.70 clm250hzn332mp25 4700 22×25 0.110 2.40 clm250hzn472mp25 4700 25×20 0.125 1.80 clm250hzn472mq20 5600 22×25 0..095 1.90 clm250hzn562mp25 6800 22×30 0.078 2.75 clm250hzn682mp30 6800 25×25 0.078 3.50 clm250hzn682mq25 6800 30×20 0.078 2.30 clm250hzn682mr20 8200 22×30 0.065 3.60 clm250hzn822mp30 8200 25×25 0.065 3.60 clm250hzn822mq25 10000 22×25 0.058 3.80 clm250hzn103mp25 10000 25×30 0.058 3.80 clm250hzn103mq30 10000 30×25 0.136 3.28 clm250hzn103mr25 10000 35×20 0.060 2.70 clm250hzn103ma20 12000 22×40 0.050 4.10 clm250hzn123mp40 12000 25×35 0.050 4.10 clm250hzn123mq35 12000 30×30 0.050 4.10 clm250hzn123mr30 15000 22×50 0.040 4.60 clm250hzn153mp50 15000 25×40 0.040 4.60 clm250hzn153mq40 15000 30×30 0.040 4.60 clm250hzn153mr30 18000 25×45 0.035 5.50 clm250hzn183mq45 18000 30×35 0.035 5.50 clm250hzn183mr35 22000 25×50 0.030 6.10 clm250hzn223mq50 22000 30×40 0.030 6.10 clm250hzn223mr40 27000 30×45 0.023 6.20 clm250hzn273mr45 27000 35×35 0.023 6.20 clm250hzn273ma35 33000 30×50 0.020 6.80 clm250hzn333mr50 33000 35×40 0.020 6.80 clm250hzn333ma40 33000 40×40 0.026 7.30 clm250hzn333mu40 39000 35×45 0.020 7.40 clm250hzn393ma45 39000 40×40 0.020 8.00 clm250hzn393mu40 47000 35×50 0.024 8.00 clm250hzn473ma50 47000 35×63 0.017 8.30 clm250hzn473ma63 56000 35×70 0.015 9.10 clm250hzn563ma70 56000 40×63 0.015 9.50 clm250hzn563mu63 56000 35×63 0.024 8.60 clm250hzn563ma63 56000 40×50 0.016 9.00 clm250hzn563mu50 68000 35×80 0.013 10.40 clm250hzn683ma80 68000 40×63 0.017 10.25 clm250hzn683mu63 82000 50×50 0.016 12.29 clm250hzn823mc50 100000 35×105 0.010 11.97 clm250hzn104maa5 100000 50×63 0.014 13.45 clm250hzn104mc63 100000 40×80 0.012 12.00 clm250hzn104mu80

25v 32sv 120000 50×80 0.012 15.29 clm250hzn124mc80 150000 40×105 0.011 14.07 clm250hzn154mua5 150000 50×92 0.011 16.01 clm250hzn154mc92 180000 50×105 0.010 16.89 clm250hzn184mca5 35v 44sv 2200 22×20 0.211 1.40 clm350hzn222mp20 2200 22×25 0.166 1.50 clm350hzn222mp25 3300 22×25 0.110 2.30 clm350hzn332mp25 3300 25×20 0.120 1.70 clm350hzn332mq20 3900 22×25 0.095 2.70 clm350hzn392mp25 4700 22×30 0.080 3.30 clm350hzn472mp30 4700 25×25 0.080 3.30 clm350hzn472mq25 4700 30×20 0.090 2.00 clm350hzn472mr20 5600 22×30 0.083 3.40 clm350hzn562mp30 5600 25×25 0.083 3.40 clm350hzn562mq25 6800 22×35 0.068 3.70 clm350hzn682mp35 6800 35×20 0.070 2.40 clm350hzn682ma20 6800 25×30 0.069 3.70 clm350hzn682mq30 8200 22×40 0.057 4.00 clm350hzn822mp40 8200 25×35 0.057 4.00 clm350hzn822mq35 10000 22×45 0.050 4.40 clm350hzn103mp45 10000 25×40 0.050 4.40 clm350hzn103mq40 10000 30×30 0.050 4.40 clm350hzn103mr30 10000 35×25 0.050 4.40 clm350hzn103ma25 12000 25×45 0.044 5.10 clm350hzn123mq45 12000 30×35 0.044 5.10 clm350hzn123mr35 12000 35×30 0.044 5.10 clm350hzn123ma30 15000 25×50 0.057 5.60 clm350hzn153mq50 15000 30×40 0.036 5.60 clm350hzn153mr40 15000 35×30 0.036 5.60 clm350hzn153ma30 18000 30×45 0.048 5.70 clm350hzn183mr45 18000 35×35 0.048 5.70 clm350hzn183ma35 22000 30×50 0.026 6.10 clm350hzn223mr50 22000 35×40 0.026 6.10 clm350hzn223ma40 27000 35×45 0.021 6.80 clm350hzn273ma45 27000 40×40 0.021 6.80 clm350hzn273mu40 33000 35×50 0.018 7.15 clm350hzn333ma50 33000 35×63 0.018 7.80 clm350hzn333ma63 39000 35×63 0.015 7.90 clm350hzn393ma63 39000 35×70 0.015 8.60 clm350hzn393ma70 39000 40×50 0.017 8.00 clm350hzn393mu50 47000 35×80 0.015 9.50 clm350hzn473ma80 47000 40×63 0.016 9.60 clm350hzn473mu63 56000 50×50 0.015 10.94 clm350hzn563mc50

35v 44sv 56000 40×80 0.015 10.30 clm350hzn563mu80 68000 35×105 0.010 10.62 clm350hzn683maa5 68000 50×63 0.013 11.93 clm350hzn683mc63 82000 40×105 0.012 12.02 clm350hzn823mua5 82000 50×80 0.012 13.06 clm350hzn823mc80 100000 50×92 0.011 13.97 clm350hzn104mc92 120000 50×105 0.010 14.86 clm350hzn124mca5 50v 63sv 1500 22×20 0.225 1.20 clm500hzn152mp20 1500 22×25 0.220 1.25 clm500hzn152mp25 2200 22×25 0.150 1.80 clm500hzn222mp25 2200 25×20 0.175 1.40 clm500hzn222mq20 2700 22×25 0.125 2.20 clm500hzn272mp25 3300 22×30 0.100 2.70 clm500hzn332mp30 3300 25×25 0.158 2.70 clm500hzn332mq25 3300 30×20 0.117 1.70 clm500hzn332mr20 3900 22×30 0.085 2.80 clm500hzn392mp30 3900 25×25 0.085 2.80 clm500hzn392mq25 4700 22×35 0.110 3.00 clm500hzn472mp35 4700 25×30 0.110 3.00 clm500hzn472mq30 4700 30×25 0.110 3.00 clm500hzn472mr25 4700 35×20 0.080 2.10 clm500hzn472ma20 5600 22×40 0.060 3.40 clm500hzn562mp40 5600 25×35 0.060 3.40 clm500hzn562mq35 5600 30×30 0.060 3.40 clm500hzn562mr30 6800 22×50 0.050 3.90 clm500hzn682mp50 6800 25×40 0.050 3.90 clm500hzn682mq40 6800 30×30 0.050 3.90 clm500hzn682mr30 8200 25×45 0.040 4.40 clm500hzn822mq45 8200 30×35 0.040 4.40 clm500hzn822mr35 10000 25×50 0.040 5.00 clm500hzn103mq50 10000 30×40` 0.040 5.00 clm500hzn103mr40 10000 35×30 0.040 5.00 clm500hzn103ma30 12000 30×45 0.033 5.60 clm500hzn123mr45 12000 35×35 0.033 5.60 clm500hzn123ma35 15000 30×50 0.037 6.40 clm500hzn153mr50 15000 35×40 0.037 6.40 clm500hzn153ma40 18000 35×63 0.018 7.80 clm500hzn183ma63 18000 35×45 0.022 6.90 clm500hzn183ma45 18000 40×40 0.023 6.94 clm500hzn183mu40 22000 35×70 0.025 8.60 clm500hzn223ma70 22000 35×50 0.025 7.60 clm500hzn223ma50 27000 35×80 0.013 9.30 clm500hzn273ma80 27000 40×63 0.018 9.00 clm500hzn273mu63

50v 63sv 27000 35×63 0.018 8.30 clm500hzn273ma63 27000 40×50 0.025 8.10 clm500hzn273mu50 33000 35×80 0.015 9.20 clm500hzn333ma80 33000 40×63 0.018 9.10 clm500hzn333mu63 33000 50×50 0.018 10.48 clm500hzn333mc50 47000 50×63 0.013 11.54 clm500hzn473mc63 47000 35×105 0.014 10.27 clm500hzn473maa5 56000 40×105 0.012 11.47 clm500hzn563mua5 56000 50×80 0.012 12.46 clm500hzn563mc80 68000 50×92 0.011 13.17 clm500hzn683mc92 82000 50×105 0.011 13.87 clm500hzn823mca5 63v 79sv 1000 22×20 0.380 1.20 clm630hzn102mp20 1000 22×25 0.332 1.20 clm630hzn102mp25 1500 22×25 0.221 1.70 clm630hzn152mp25 1500 25×20 0.250 1.30 clm630hzn152mq20 2200 22×30 0.151 2.50 clm630hzn222mp30 2200 25×25 0.151 2.50 clm630hzn222mq25 2200 30×20 0.170 1.50 clm630hzn222mr20 2700 22×35 0.123 3.70 clm630hzn272mp35 2700 25×30 0.123 3.70 clm630hzn272mq30 3300 22×40 0.110 4.10 clm630hzn332mp40 3300 25×30 0.110 4.10 clm630hzn332mq30 3300 30×25 0.110 4.10 clm630hzn332mr25 3300 35×20 0.125 1.70 clm630hzn332ma20 3900 22×45 0.100 4.40 clm630hzn392mp45 3900 25×35 0.100 4.40 clm630hzn392mq35 3900 30×30 0.100 4.40 clm630hzn392mr30 4700 22×50 0.080 4.90 clm630hzn472mp50 4700 25×40 0.080 4.90 clm630hzn472mq40 4700 30×30 0.080 4.90 clm630hzn472mr30 4700 35×25 0.080 4.90 clm630hzn472ma25 5600 35×30 0.070 5.40 clm630hzn562ma30 5600 25×45 0.070 5.40 clm630hzn562mq45 5600 30×35 0.070 5.40 clm630hzn562mr35 6800 25×50 0.060 5.80 clm630hzn682mq50 6800 30×40 0.060 5.80 clm630hzn682mr40 6800 35×30 0.060 5.80 clm630hzn682ma30 8200 30×45 0.067 6.00 clm630hzn822mr45 8200 35×35 0.067 6.00 clm630hzn822ma35 10000 40×40 0.028 6.60 clm630hzn103mu40 10000 35×40 0.033 6.50 clm630hzn103ma40 12000 35×63 0.019 7.70 clm630hzn123ma63 12000 35×50 0.028 7.20 clm630hzn123ma50

63v 79sv 12000 40×40 0.035 7.15 clm630hzn123mu40 15000 35×70 0.016 8.50 clm630hzn153ma70 15000 35×63 0.028 7.70 clm630hzn153ma63 18000 35×80 0.023 9.40 clm630hzn183ma80 18000 40×63 0.028 9.25 clm630hzn183mu63 27000 40×80 0.018 10.00 clm630hzn273mu80 27000 35×105 0.015 10.38 clm630hzn273maa5 27000 50×50 0.018 10.86 clm630hzn273mc50 33000 40×105 0.015 11.76 clm630hzn333mua5 33000 50×63 0.017 11.57 clm630hzn333mc63 47000 50×80 0.013 12.78 clm630hzn473mc80 51000 50×92 0.012 13.34 clm630hzn513mc92 56000 50×105 0.012 13.93 clm630hzn563mca5 80v 100sv 680 22×20 0.450 1.00 clm800hzn681mp20 680 22×25 0.390 1.00 clm800hzn681mp25 1000 22×25 0.265 1.50 clm800hzn102mp25 1000 25×20 0.300 1.20 clm800hzn102mq20 1200 22×25 0.220 1.80 clm800hzn122mp25 1500 22×30 0.177 2.30 clm800hzn152mp30 1500 25×25 0.177 2.30 clm800hzn152mq25 1500 30×20 0.200 1.40 clm800hzn152mr20 1800 22×35 0.147 2.50 clm800hzn182mp35 1800 25×30 0.147 2.50 clm800hzn182mq30 2200 22×40 0.155 2.70 clm800hzn222mp40 2200 25×30 0.155 2.70 clm800hzn222mq30 2200 30×25 0.155 2.70 clm800hzn222mr25 2200 35×20 0.135 1.70 clm800hzn222ma20 2700 22×45 0.098 2.80 clm800hzn272mp45 2700 25×35 0.098 2.80 clm800hzn272mq35 2700 30×30 0.098 2.80 clm800hzn272mr30 3300 22×50 0.085 3.20 clm800hzn332mp50 3300 25×40 0.085 3.20 clm800hzn332mq40 3300 30×30 0.085 3.20 clm800hzn332mr30 3900 25×45 0.080 3.60 clm800hzn392mq45 3900 30×35 0.080 3.60 clm800hzn392mr35 4700 25×50 0.065 4.10 clm800hzn472ma50 4700 30×40 0.072 4.10 clm800hzn472mr40 5600 30×45 0.055 4.60 clm800hzn562mr45 5600 35×35 0.055 4.60 clm800hzn562ma35 6800 30×50 0.045 5.20 clm800hzn682mr50 6800 35×40 0.045 5.20 clm800hzn682ma40 8200 35×50 0.040 5.80 clm800hzn822ma50 8200 40×40 0.040 5.83 clm800hzn822mu40

80v 100sv 10000 35×63 0.033 6.40 clm800hzn103ma63 12000 35×70 0.020 8.10 clm800hzn123ma70 12000 40×50 0.025 7.50 clm800hzn123mu50 15000 35×80 0.017 8.80 clm800hzn153ma80 15000 40×63 0.020 8.50 clm800hzn153mu63 18000 40×80 0.014 10.30 clm800hzn183mu80 18000 50×50 0.023 10.00 clm800hzn183mc50 22000 35×105 0.015 9.86 clm800hzn223maa5 22000 50×63 0.019 11.08 clm800hzn223mc63 27000 40×105 0.015 11.35 clm800hzn273mua5 27000 50×80 0.015 12.33 clm800hzn273mc80 33000 50×92 0.014 13.37 clm800hzn333mc92 39000 50×105 0.013 14.34 clm800hzn393mca5 100v 125sv 470 22×20 0.450 1.00 clm101hzn471mp20 470 22×25 0.450 1.10 clm101hzn471mp25 560 22×25 0.400 1.30 clm101hzn561mp25 680 22×25 0.320 1.60 clm101hzn681mp25 680 25×20 0.390 1.10 clm101hzn681mq20 1000 22×30 0.220 2.00 clm101hzn102mp30 1000 25×25 0.220 2.00 clm101hzn102mq25 1000 30×20 0.250 1.20 clm101hzn102mr20 1200 22×35 0.195 2.30 clm101hzn122mp35 1200 25×30 0.180 2.30 clm101hzn122mq30 1500 22×40 0.155 2.60 clm101hzn152mp40 1500 25×30 0.155 2.60 clm101hzn152mq30 1500 30×25 0.155 2.60 clm101hzn152mr25 1500 35×20 0.177 1.50 clm101hzn152ma20 1800 22×45 0.130 2.80 clm101hzn182mp45 1800 25×35 0.140 2.80 clm101hzn182mq35 1800 30×30 0.140 2.80 clm101hzn182mr30 2200 22×50 0.121 3.10 clm101hzn222mp50 2200 25×40 0.121 3.10 clm101hzn222mq40 2200 30×30 0.121 3.10 clm101hzn222mr30 2200 35×25 0.121 3.14 clm101hzn222ma25 2700 25×45 0.104 3.70 clm101hzn272mq45 2700 30×35 0.104 3.70 clm101hzn272mr35 2700 35×30 0.104 3.70 clm101hzn272ma30 3300 25×50 0.090 4.10 clm101hzn332mq50 3300 30×40 0.090 4.10 clm101hzn332mr40 3900 30×45 0.080 4.50 clm101hzn392mr45 3900 35×35 0.080 4.50 clm101hzn392ma35 4700 30×50 0.070 5.10 clm101hzn472mr50 4700 35×40 0.070 5.10 clm101hzn472ma40 5600 40×40 0.060 5.80 clm101hzn562mu40

100v 125sv 5600 35×45 0.060 5.80 clm101hzn562ma45 6800 35×50 0.050 6.60 clm101hzn682ma50 6800 35×63 0.024 7.20 clm101hzn682ma63 6800 40×50 0.026 7.40 clm101hzn682mu50 8200 35×63 0.040 7.00 clm101hzn822ma63 8200 35×70 0.021 8.00 clm101hzn822ma70 8200 40×50 0.040 7.30 clm101hzn822mu50 8200 40×63 0.021 8.40 clm101hzn822mu63 10000 35×80 0.033 8.70 clm101hzn103ma80 10000 40×63 0.033 8.00 clm101hzn103mu63 10000 50×50 0.033 8.82 clm101hzn103mc50 12000 40×80 0.028 8.65 clm101hzn123mu80 12000 35×105 0.028 8.57 clm101hzn123maa5 15000 40×105 0.022 10.12 clm101hzn153mua5 15000 50×63 0.022 10.07 clm101hzn153mc63 18000 50×80 0.018 11.00 clm101hzn183mc80 22000 50×92 0.015 11.76 clm101hzn223mc92 27000 50×105 0.014 12.53 clm101hzn273mca5 160v 200sv 220 22×20 1.000 0.80 clm161hzn221mp20 220 22×25 0.850 0.90 clm161hzn221mp25 270 22×25 0.700 1.20 clm161hzn271mp25 270 25×20 0.800 0.90 clm161hzn271mq20 330 22×25 0.603 1.50 clm161hzn331mp25 390 22×25 0.470 1.60 clm161hzn391mp25 390 22×30 0.470 1.60 clm161hzn391mp30 390 25×25 0.470 1.60 clm161hzn391mq25 390 30×20 0.600 1.10 clm161hzn391mr20 470 22×30 0.423 2.10 clm161hzn471mp30 470 25×25 0.423 2.10 clm161hzn471mq25 560 22×30 0.355 2.25 clm161hzn561mp30 560 25×25 0.355 2.25 clm161hzn561mq25 560 35×20 0.420 1.30 clm161hzn561ma20 680 22×35 0.293 2.50 clm161hzn681mp35 680 25×30 0.293 2.50 clm161hzn681mq30 680 30×25 0.293 2.50 clm161hzn681mr25 820 22×40 0.260 2.50 clm161hzn821mp40 820 22×45 0.260 2.80 clm161hzn821mp45 820 25×35 0.260 2.80 clm161hzn821mq35 820 30×25 0.260 2.75 clm161hzn821mr25 1000 22×45 0.220 3.00 clm161hzn102mp45 1000 25×40 0.220 3.00 clm161hzn102mq40 1000 30×30 0.220 3.00 clm161hzn102mr30 1200 25×50 0.210 3.25 clm161hzn122mq50 1200 30×35 0.210 3.25 clm161hzn122mr35

160v 200sv 1200 35×30 0.210 3.25 clm161hzn122ma30 1500 25×50 0.170 3.70 clm161hzn152mq50 1500 30×35 0.170 3.70 clm161hzn152mr35 1500 35×30 0.166 3.73 clm161hzn152ma30 1800 30×50 0.140 4.20 clm161hzn182mr50 1800 35×35 0.140 4.20 clm161hzn182ma35 2200 30×50 0.105 4.78 clm161hzn222mr50 2200 35×40 0.115 4.78 clm161hzn222ma40 2700 35×50 0.090 5.50 clm161hzn272ma50 2700 40×40 0.080 5.50 clm161hzn272mu40 3300 35×63 0.065 6.30 clm161hzn332ma63 3300 40×50 0.065 6.30 clm161hzn332mu50 3900 35×80 0.055 7.30 clm161hzn392ma80 3900 40×63 0.055 7.30 clm161hzn392mu63 4700 40×80 0.036 6.60 clm161hzn472mu80 5600 40×80 0.040 8.30 clm161hzn562mu80 5600 50×50 0.040 8.25 clm161hzn562mc50 6800 35×105 0.032 9.10 clm161hzn682maa5 8200 50×63 0.026 8.90 clm161hzn822mc63 10000 40×105 0.022 9.90 clm161hzn103mua5 10000 50×80 0.022 9.80 clm161hzn103mc80 12000 50×92 0.018 12.90 clm161hzn123mc92 15000 50×105 0.014 14.10 clm161hzn153mca5 180v 225sv 330 22×25 0.603 1.80 clm181hzn331mp25 390 22×30 0.510 1.20 clm181hzn391mp30 390 25×25 0.510 1.20 clm181hzn391mq25 470 22×35 0.423 2.10 clm181hzn471mp35 470 25×25 0.423 2.10 clm181hzn471mq25 560 22×35 0.355 2.30 clm181hzn561mp35 560 25×30 0.355 2.30 clm181hzn561mq30 680 22×40 0.293 2.50 clm181hzn681mp40 680 25×35 0.293 2.50 clm181hzn681mq35 680 30×30 0.293 2.50 clm181hzn681mr30 820 22×45 0.243 2.80 clm181hzn821mp45 820 25×40 0.243 2.80 clm181hzn821mq40 820 30×30 0.243 2.80 clm181hzn821mr30 1000 25×45 0.199 3.00 clm181hzn102mq45 1000 30×35 0.199 3.00 clm181hzn102mr35 1200 25×50 0.166 3.30 clm181hzn122mq50 1200 30×40 0.166 3.30 clm181hzn122mr40 1200 35×35 0.166 3.30 clm181hzn122ma35 1500 30×45 0.133 3.80 clm181hzn152mr45 1500 35×40 0.133 3.80 clm181hzn152ma40

180v 225sv 1800 30×50 0.111 4.30 clm181hzn182mr50 1800 35×40 0.111 4.30 clm181hzn182ma40 2200 35×50 0.090 4.90 clm181hzn222ma50 2700 40×63 0.051 5.00 clm181hzn272mu63 2700 35×70 0.054 4.80 clm181hzn272ma70 3300 35×80 0.046 5.40 clm181hzn332ma80 4700 40×80 0.036 6.60 clm181hzn472mu80 200v 250sv 150 22×20 1.330 0.65 clm201hzn151mp20 150 22×25 1.220 0.70 clm201hzn151mp25 220 22×25 0.083 1.00 clm201hzn221mp25 220 25×20 0.905 0.90 clm201hzn221mq20 270 22×25 0.610 1.40 clm201hzn271mp25 330 22×25 0.550 1.60 clm201hzn331mp25 330 30×20 0.603 1.00 clm201hzn331mr20 390 22×30 0.470 1.70 clm201hzn391mp30 390 25×25 0.470 1.70 clm201hzn391mq25 470 22×35 0.390 1.90 clm201hzn471mp35 470 25×30 0.390 1.90 clm201hzn471mq30 470 30×25 0.423 1.90 clm201hzn471mr25 470 35×20 0.460 1.30 clm201hzn471ma20 560 22×40 0.330 2.40 clm201hzn561mp40 560 25×30 0.330 2.43 clm201hzn561mq30 560 30×25 0.390 2.15 clm201hzn561mr25 680 22×45 0.270 2.70 clm201hzn681mp45 680 25×35 0.270 2.70 clm201hzn681mq35 680 30×30 0.270 2.70 clm201hzn681mr30 820 25×45 0.220 2.90 clm201hzn821mq45 820 30×30 0.220 2.90 clm201hzn821mr30 820 35×25 0.243 2.90 clm201hzn821ma25 1000 25×45 0.199 3.25 clm201hzn102mq45 1000 30×35 0.199 3.25 clm201hzn102mr35 1000 35×30 0.199 3.30 clm201hzn102ma30 1200 30×40 0.166 3.50 clm201hzn122mr40 1200 35×30 0.166 3.50 clm201hzn122ma30 1500 30×45 0.144 3.87 clm201hzn152mr45 1500 35×35 0.144 3.87 clm201hzn152ma35 1800 30×50 0.120 4.32 clm201hzn182mr50 1800 35×40 0.120 4.32 clm201hzn182ma40 2200 35×45 0.098 4.92 clm201hzn222ma45 2200 40×40 0.098 4.92 clm201hzn222mu40 2700 35×63 0.080 5.50 clm201hzn272ma63 2700 40×50 0.080 5.40 clm201hzn272mu50 3300 35×80 0.065 6.40 clm201hzn332ma80

200v 250sv 3300 40×63 0.065 6.30 clm201hzn332mu63 3900 35×80 0.055 6.60 clm201hzn392ma80 3900 40×63 0.055 6.80 clm201hzn392mu63 3900 50×50 0.055 8.22 clm201hzn392mc50 4700 40×80 0.046 8.38 clm201hzn472mu80 4700 50×63 0.046 9.32 clm201hzn472mc63 5600 35×105 0.038 8.90 clm201hzn562maa5 6800 40×105 0.032 8.65 clm201hzn682mua5 6800 50×80 0.032 11.41 clm201hzn682mc80 7500 50×92 0.029 12.28 clm201hzn752mc92 8200 50×105 0.026 13.16 clm201hzn822mca5 250v 300sv 120 22×20 1.658 0.50 clm251hzn121mp20 120 22×25 1.520 0.71 clm251hzn121mp25 150 22×25 1.220 0.90 clm251hzn151mp25 150 25×20 1.326 0.70 clm251hzn151mq20 180 22×25 0.920 1.10 clm251hzn181mp25 220 22×25 0.754 1.17 clm251hzn221mp25 220 30×20 0.830 0.90 clm251hzn221mr20 270 22×30 0.620 1.30 clm251hzn271mp30 270 25×25 0.620 1.30 clm251hzn271mq25 330 22×35 0.550 1.80 clm251hzn331mp35 330 25×30 0.550 1.80 clm251hzn331mq30 330 30×25 0.550 1.80 clm251hzn331mr25 330 35×20 0.550 1.10 clm251hzn331ma20 390 22×40 0.510 1.90 clm251hzn391mp40 390 25×30 0.468 1.91 clm251hzn391mq30 390 30×25 0.510 1.90 clm251hzn391mr25 470 22×45 0.390 2.10 clm251hzn471mp45 470 25×35 0.390 2.10 clm251hzn471mq35 470 30×25 0.350 2.10 clm251hzn471mr25 560 25×40 0.326 2.30 clm251hzn561mq40 560 30×30 0.326 2.30 clm251hzn561mr30 560 35×25 0.326 2.30 clm251hzn561ma25 680 25×45 0.268 2.50 clm251hzn681mq45 680 30×35 0.268 2.50 clm251hzn681mr35 680 35×30 0.293 2.50 clm251hzn681ma30 820 30×40 0.222 2.80 clm251hzn821mr40 820 35×30 0.222 2.80 clm251hzn821ma30 1000 30×45 0.182 3.32 clm251hzn102mr45 1000 35×35 0.182 3.32 clm251hzn102ma35 1200 35×40 0.166 3.53 clm251hzn122ma40 1500 35×50 0.133 4.00 clm251hzn152ma50 1500 40×40 0.133 4.04 clm251hzn152mu40

250v 300sv 1800 35×63 0.110 4.50 clm251hzn182ma63 1800 40×50 0.110 4.50 clm251hzn182mu50 1800 40×63 0.062 4.80 clm251hzn182mu63 2200 35×63 0.090 4.70 clm251hzn222ma63 2200 35×80 0.090 4.90 clm251hzn222ma80 2200 40×63 0.090 4.90 clm251hzn222mu63 2700 35×80 0.074 5.60 clm251hzn272ma80 2700 40×63 0.074 5.60 clm251hzn272mu63 2700 40×80 0.043 6.30 clm251hzn272mu80 2700 50×50 0.074 6.77 clm251hzn272mc50 3300 40×80 0.060 7.00 clm251hzn332mu80 3300 50×63 0.060 7.79 clm251hzn332mc63 3900 35×105 0.051 7.47 clm251hzn392maa5 3900 40×80 0.051 7.35 clm251hzn392mu80 4700 40×105 0.042 8.88 clm251hzn472mua5 4700 50×80 0.042 9.65 clm251hzn472mc80 5600 50×92 0.036 10.80 clm251hzn562mc92 6800 50×105 0.029 12.16 clm251hzn682mca5 315v 365sv 100 22×25 1.989 0.90 clm3b1hzn101mp25 120 22×30 1.658 1.00 clm3b1hzn121mp30 120 25×25 1.658 1.00 clm3b1hzn121mq25 150 22×30 1.326 1.10 clm3b1hzn151mp30 150 25×25 1.326 1.10 clm3b1hzn151mq25 180 22×35 1.105 1.20 clm3b1hzn181mp35 180 25×30 1.105 1.20 clm3b1hzn181mq30 180 30×25 1.105 1.20 clm3b1hzn181mr25 220 22×40 0.904 1.40 clm3b1hzn221mp40 220 25×35 0.904 1.40 clm3b1hzn221mq35 220 30×25 0.904 1.40 clm3b1hzn221mr25 270 22×45 0.737 1.60 clm3b1hzn271mp45 270 25×40 0.737 1.60 clm3b1hzn271mq40 270 30×30 0.737 1.60 clm3b1hzn271mr30 330 25×45 0.603 1.80 clm3b1hzn331mq45 330 30×30 0.603 1.80 clm3b1hzn331mr30 330 35×25 0.603 1.80 clm3b1hzn331ma25 390 25×50 0.510 2.00 clm3b1hzn391mq50 390 30×35 0.510 2.00 clm3b1hzn391mr35 390 35×30 0.510 2.00 clm3b1hzn391ma30 470 30×40 0.423 2.30 clm3b1hzn471mr40 470 35×35 0.423 2.30 clm3b1hzn471ma35 560 30×45 0.355 2.60 clm3b1hzn561mr45 560 35×35 0.355 2.60 clm3b1hzn561ma35 680 35×45 0.293 2.90 clm3b1hzn681ma45

315v 365sv 820 35×50 0.243 3.30 clm3b1hzn821ma50 1000 35×63 0.218 2.70 clm3b1hzn102ma63 1200 35×70 0.182 3.20 clm3b1hzn122ma70 1200 40×50 0.202 2.90 clm3b1hzn122mu50 1500 35×80 0.153 3.60 clm3b1hzn152ma80 1500 40×63 0.162 3.40 clm3b1hzn152mu63 1800 40×80 0.113 4.50 clm3b1hzn182mu80 350v 400sv 82 22×25 2.022 0.83 clm351hzn820mp25 100 22×30 1.660 0.90 clm351hzn101mp30 120 22×30 1.382 1.00 clm351hzn121mp30 120 25×25 1.382 1.00 clm351hzn121mq25 150 22×25 1.110 1.10 clm351hzn151mp25 150 25×25 1.110 1.10 clm351hzn151mq25 150 30×25 1.110 1.10 clm351hzn151mr25 180 22×40 0.920 1.20 clm351hzn181mp40 180 25×30 0.920 1.22 clm351hzn181mq30 180 30×25 0.920 1.20 clm351hzn181mr25 220 22×45 0.750 1.44 clm351hzn221mp45 220 25×35 0.750 1.44 clm351hzn221mq35 220 30×25 0.750 1.44 clm351hzn221mr25 220 35×25 0.750 1.44 clm351hzn221ma25 270 25×40 0.614 1.66 clm351hzn271mq40 270 30×30 0.614 1.66 clm351hzn271mr30 270 35×25 0.614 1.66 clm351hzn271ma25 270 35×25 0.614 1.70 clm351hzn271ma25 330 25×50 0.500 1.90 clm351hzn331mq50 330 30×35 0.500 1.90 clm351hzn331mr35 330 35×30 0.500 1.90 clm351hzn331ma30 390 25×50 0.425 2.06 clm351hzn391mq50 390 30×40 0.425 2.06 clm351hzn391mr40 390 35×30 0.425 2.06 clm351hzn391ma30 470 30×50 0.390 2.40 clm351hzn471mr50 470 35×35 0.390 2.40 clm351hzn471ma35 560 30×50 0.326 2.60 clm351hzn561mr50 560 35×40 0.326 2.60 clm351hzn561ma40 680 35×45 0.293 2.96 clm351hzn681ma45 680 40×40 0.293 3.00 clm351hzn681mu40 820 35×50 0.243 3.55 clm351hzn821ma50 1000 35×63 0.250 3.80 clm351hzn102ma63 1000 40×50 0.250 3.80 clm351hzn102mu50 1200 35×80 0.210 4.40 clm351hzn122ma80 1200 40×63 0.210 4.40 clm351hzn122mu63 1200 50×50 0.207 5.18 clm351hzn122mc50 1500 50×63 0.166 6.01 clm351hzn152mc63

350v 400sv 1800 35×105 0.138 5.79 clm351hzn182maa5 1800 40×80 0.138 5.85 clm351hzn182mu80 1800 50×80 0.138 6.89 clm351hzn182mc80 2200 40×105 0.113 6.91 clm351hzn222m15 2200 50×92 0.113 7.79 clm351hzn222mc92 2700 50×105 0.092 8.80 clm351hzn272mca5 400v 450sv   47 22×20 3.530 0.25 clm401hzn470mp20 47 22×25 3.530 0.47 clm401hzn470mp25 68 22×25 2.440 0.70 clm401hzn680mp25 68 25×20 2.930 0.35 clm401hzn680mq20 82 22×25 2.000 0.80 clm401hzn820mp25 100 22×30 1.650 0.90 clm401hzn101mp30 100 25×25 1.650 0.90 clm401hzn101mq25 100 30×20 1.990 0.50 clm401hzn101mr20 120 22×35 1.380 1.00 clm401hzn121mp35 120 25×25 1.380 1.02 clm401hzn121mq25 150 22×40 1.100 1.20 clm401hzn151mp40 150 25×30 1.100 1.20 clm401hzn151mq30 150 30×25 1.100 1.20 clm401hzn151mr25 150 35×20 1.330 0.60 clm401hzn151ma20 180 22×45 0.920 1.40 clm401hzn181mp45 180 25×30 0.920 1.40 clm401hzn181mq30 220 22×50 0.750 1.50 clm401hzn221mp50 220 25×40 0.750 1.50 clm401hzn221mq40 220 30×30 0.750 1.50 clm401hzn221mr30 270 25×45 0.680 1.70 clm401hzn271mq45 270 30×35 0.680 1.70 clm401hzn271mr35 270 35×30 0.680 1.70 clm401hzn271ma30 330 30×40 0.550 1.90 clm401hzn331mr40 330 35×30 0.550 1.90 clm401hzn331ma30 390 30×45 0.470 2.10 clm401hzn391mr45 390 35×35 0.470 2.10 clm401hzn391ma35 470 35×40 0.388 2.39 clm401hzn471ma40 560 35×45 0.326 2.69 clm401hzn561ma45 560 40×40 0.326 2.70 clm401hzn561mu40 680 35×50 0.270 3.00 clm401hzn681ma50 680 40×50 0.270 3.40 clm401hzn681mu50 820 35×63 0.222 3.55 clm401hzn821ma63 820 40×50 0.222 3.40 clm401hzn821mu50 1000 35×80 0.179 3.60 clm401hzn102ma80 1000 40×63 0.199 4.20 clm401hzn102mu63 1000 50×50 0.199 4.76 clm401hzn102mc50 1200 35×80 0.152 4.52 clm401hzn122ma80 1200 40×63 0.152 4.52 clm401hzn122mu63

400v 450sv 1200 50×63 0.166 5.47 clm401hzn122mc63 1500 35×105 0.122 5.44 clm401hzn152maa5 1500 40×80 0.122 5.50 clm401hzn152mu80 1500 50×80 0.133 6.47 clm401hzn152mc80 1800 40×105 0.101 6.53 clm401hzn182mua5 1800 50×92 0.111 7.35 clm401hzn182mc92 2200 50×105 0.090 8.43 clm401hzn222mca5 420v 470sv 82 22×30 2.430 0.80 clm421hzn820mp30 100 22×30 2.000 0.90 clm421hzn101mp30 100 25×25 2.000 0.90 clm421hzn101mq25 120 22×35 1.660 1.00 clm421hzn121mp35 120 25×30 1.660 1.00 clm421hzn121mq30 150 22×40 1.330 1.15 clm421hzn151mp40 150 25×30 1.330 1.15 clm421hzn151mq30 150 30×25 1.330 1.15 clm421hzn151mr25 180 22×45 1.100 1.45 clm421hzn181mp45 180 25×35 1.100 1.45 clm421hzn181mq35 180 30×30 1.100 1.45 clm421hzn181mr30 220 25×45 0.900 1.50 clm421hzn221mq45 220 30×30 0.900 1.50 clm421hzn221mr30 220 35×25 0.900 1.50 clm421hzn221ma25 270 25×50 0.740 1.70 clm421hzn271mq50 270 30×35 0.740 1.70 clm421hzn271mr35 270 35×30 0.740 1.70 clm421hzn271ma30 330 30×45 0.600 1.90 clm421hzn331mr45 330 35×35 0.600 1.90 clm421hzn331ma35 390 30×50 0.500 2.10 clm421hzn391mr50 390 35×40 0.500 2.10 clm421hzn391ma40 470 35×45 0.420 2.40 clm421hzn471ma45 560 35×50 0.355 2.70 clm421hzn561ma50 450v 500sv 33 22×20 6.029 0.20 clm451hzn330mp20 33 22×25 6.029 0.40 clm451hzn330mp25 47 22×25 4.230 0.59 clm451hzn470mp25 47 25×20 4.230 0.30 clm451hzn470mq20 56 22×25 3.000 0.70 clm451hzn560mp25 68 22×30 2.926 0.80 clm451hzn680mp30 68 30×20 2.926 0.40 clm451hzn680mr20 82 22×30 2.000 0.80 clm451hzn820mp30 82 25×25 2.000 0.80 clm451hzn820mq25 100 22×35 1.660 0.90 clm451hzn101mp35 100 25×30 1.660 0.90 clm451hzn101mq30 100 30×25 1.989 0.90 clm451hzn101mr25 100 35×20 1.989 0.50 clm451hzn101ma20

450v 500sv 120 22×40 1.380 1.00 clm451hzn121mp40 120 25×30 1.380 1.00 clm451hzn121mq30 120 30×25 1.380 1.00 clm451hzn121mr25 150 22×50 1.100 1.20 clm451hzn151mp50 150 25×40 1.100 1.20 clm451hzn151mq40 150 30×30 1.100 1.20 clm451hzn151mr30 180 25×40 0.921 1.35 clm451hzn181mq40 180 30×30 0.921 1.35 clm451hzn181mr30 180 35×25 0.921 1.40 clm451hzn181ma25 220 25×45 0.754 1.55 clm451hzn221mq45 220 30×35 0.754 1.55 clm451hzn221mr35 220 35×30 0.904 1.60 clm451hzn221ma30 270 30×45 0.680 1.80 clm451hzn271mr45 270 35×30 0.680 1.80 clm451hzn271ma30 330 30×50 0.550 2.00 clm451hzn331mr50 330 35×35 0.553 2.01 clm451hzn331ma35 390 35×45 0.510 2.20 clm451hzn391ma45 470 35×45 0.423 2.53 clm451hzn471ma45 470 40×40 0.423 2.53 clm451hzn471mu40 560 35×50 0.355 2.50 clm451hzn561ma50 560 35×63 0.355 2.90 clm451hzn561ma63 680 35×70 0.226 3.20 clm451hzn681ma70 680 40×50 0.290 3.15 clm451hzn681mu50 680 40×63 0.201 3.40 clm451hzn681mu63 820 40×63 0.243 3.70 clm451hzn821mu63 820 35×80 0.243 3.80 clm451hzn821ma80 820 50×50 0.263 4.31 clm451hzn821mc50 1000 40×80 0.216 4.20 clm451hzn102mu80 1000 50×63 0.216 4.96 clm451hzn102mc63 1200 35×105 0.166 4.80 clm451hzn122maa5 1200 40×80 0.166 4.85 clm451hzn122mu80 1200 50×80 0.180 5.71 clm451hzn122mc80 1500 40×105 0.133 5.81 clm451hzn152mua5 1500 50×92 0.144 6.55 clm451hzn152mc92 1800 50×105 0.120 7.38 clm451hzn182mca5 500v 550sv 33 22×25 4.420 0.60 clm501hzn330mp25 47 22×25 3.500 0.63 clm501hzn470mp25 56 22×30 2.980 0.70 clm501hzn560mp30 68 22×35 2.720 0.78 clm501hzn680mp35 68 25×25 2.720 0.78 clm501hzn680mq25 82 22×40 2.455 0.88 clm501hzn820mp40 82 25×30 2.455 0.88 clm501hzn820mq30 82 30×25 2.455 0.90 clm501hzn820mr25

500v 550sv 100 22×45 2.013 0.99 clm501hzn101mp45 100 25×35 2.013 0.99 clm501hzn101mq35 100 25×40 2.013 1.10 clm501hzn101mq40 100 30×30 2.013 1.10 clm501hzn101mr30 100 35×25 2.013 1.10 clm501hzn101ma25 120 22×50 1.678 1.13 clm501hzn121mp50 120 25×40 1.678 1.13 clm501hzn121mq40 120 30×30 1.678 1.13 clm501hzn121mr30 120 30×35 1.678 1.40 clm501hzn121mr35 120 35×30 1.678 1.40 clm501hzn121ma30 150 25×45 1.105 1.29 clm501hzn151mq45 150 25×50 0.945 1.40 clm501hzn151mq50 150 30×35 1.105 1.29 clm501hzn151mr35 150 30×40 0.926 1.60 clm501hzn151mr40 150 35×25 1.342 1.29 clm501hzn151ma25 180 25×50 0.920 1.38 clm501hzn181mq50 180 30×40 0.920 1.38 clm501hzn181mr40 180 35×30 1.119 1.38 clm501hzn181ma30 180 35×35 1.119 1.60 clm501hzn181ma35 220 30×45 0.754 1.50 clm501hzn221mr45 220 30×50 0.654 2.00 clm501hzn221mr50 220 35×35 0.915 1.50 clm501hzn221ma35 220 35×40 0.915 1.90 clm501hzn221ma40 270 35×40 0.746 1.76 clm501hzn271ma40

500v 550sv 270 35×50 0.746 2.30 clm501hzn271ma50 270 40×40 0.746 2.40 clm501hzn271mu40 330 35×45 0.610 1.99 clm501hzn331ma45 330 40×40 0.610 2.16 clm501hzn331mu40 390 35×50 0.516 2.22 clm501hzn391ma50 390 35×63 0.516 2.70 clm501hzn391ma63 390 40×50 0.516 2.90 clm501hzn391mu50 470 35×63 0.428 2.58 clm501hzn471ma63 470 35×70 0.428 3.20 clm501hzn471ma70 470 40×50 0.428 2.70 clm501hzn471mu50 470 40×63 0.428 3.40 clm501hzn471mu63 560 35×80 0.360 3.60 clm501hzn561ma80 560 40×63 0.360 3.11 clm501hzn561mu63 560 50×50 0.360 3.52 clm501hzn561mc50 680 40×80 0.296 4.50 clm501hzn681mu80 680 35×80 0.296 3.21 clm501hzn681ma80 680 50×63 0.296 4.07 clm501hzn681mc63 820 35×105 0.246 3.97 clm501hzn821maa5 820 40×80 0.246 3.88 clm501hzn821mu80 1000 50×80 0.201 5.05 clm501hzn102mc80 1200 40×105 0.168 5.90 clm501hzn122mua5 1200 50×92 0.168 5.74 clm501hzn122mc92 1500 50×105 0.134 6.65 clm501hzn152mca5 2200 50×140 0.121 7.15 clm501hzn152mce0

◆rated ripple current multipliers
      ●frequency multipliers

frequency （hz）	50	60	120	500	1k	10k
16～100vc	0.93	0.95	1.00	1.05	1.08	1.15
160～550vc	0.75	0.80	1.00	1.20	1.25	1.40

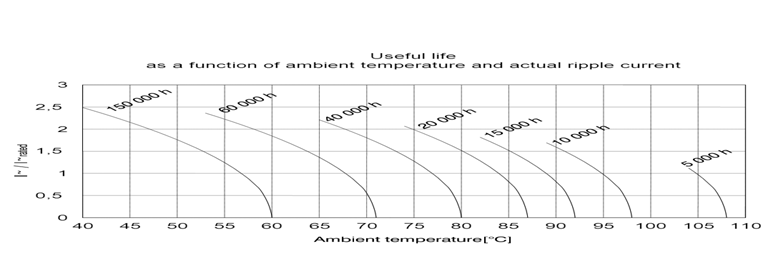

×the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise
  when long life performance is required in actual use,the rms ripple current has to be reduced
