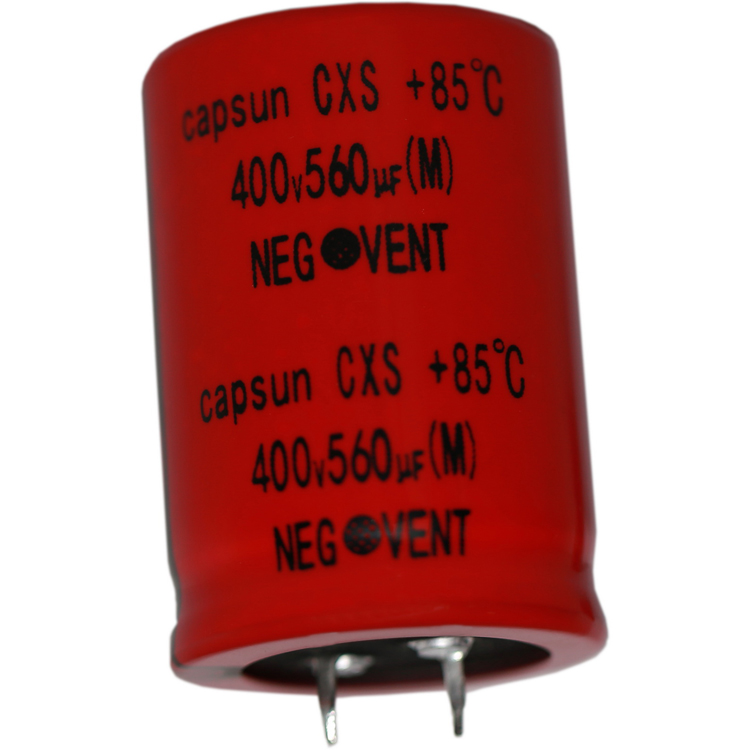

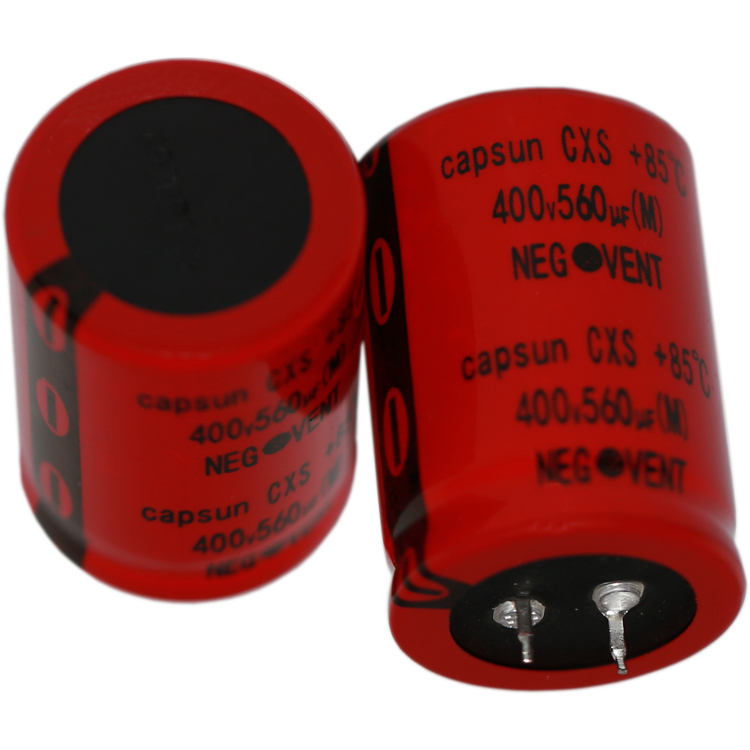

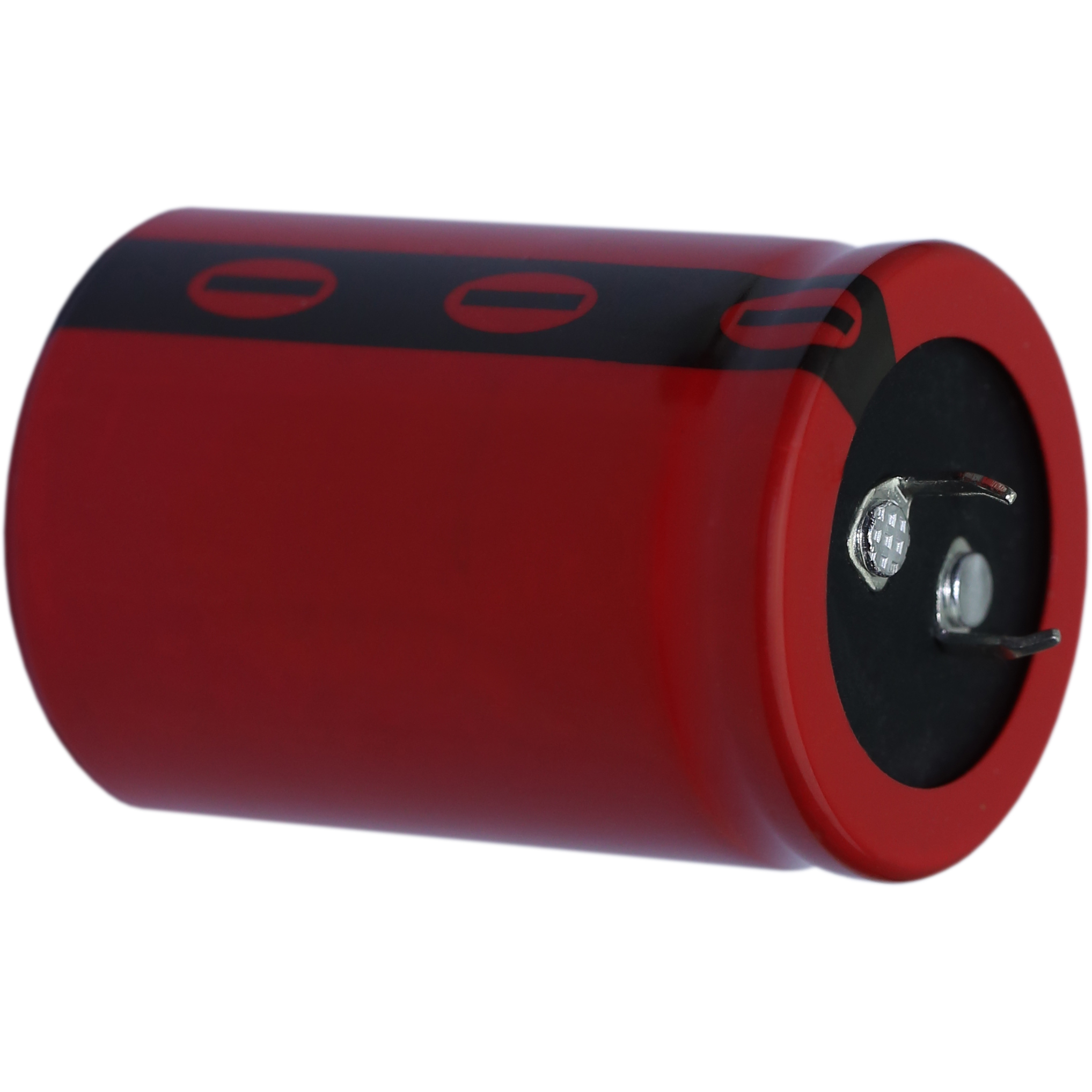

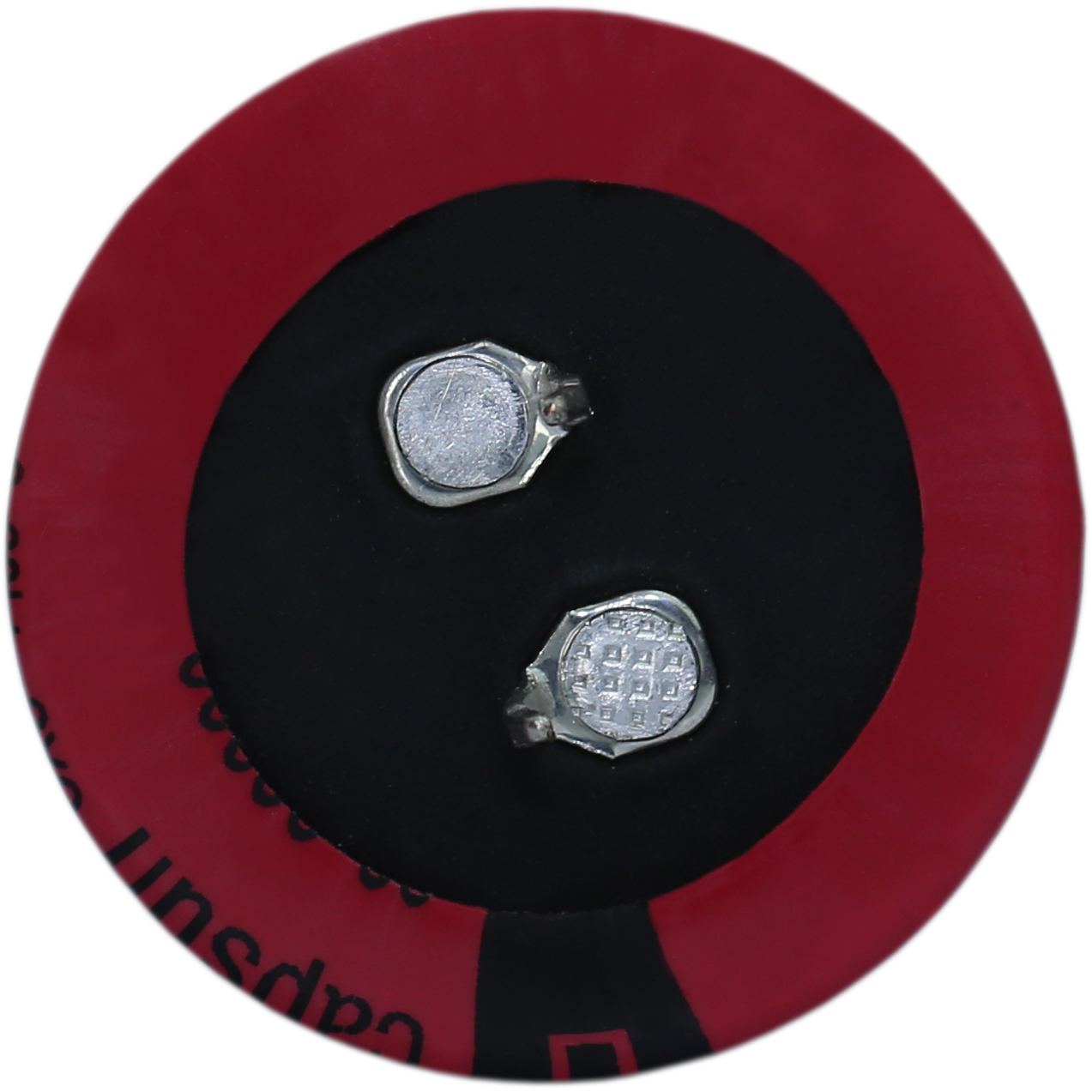

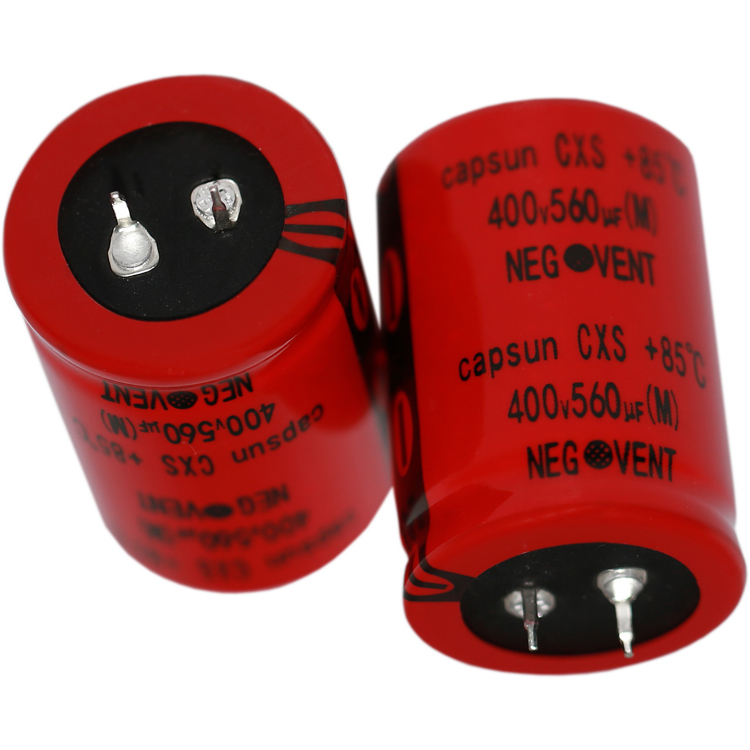

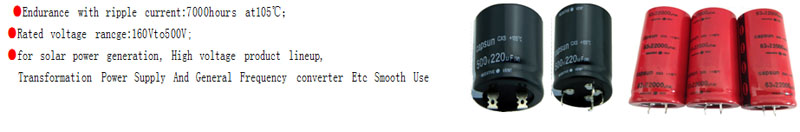

working cap temperature. standard life(hours)
detailed
specification

105℃ 7000hours

◆specific ations

items

characteristics

category temperature range

-25~ 105℃

rated voltage range

160~500_vdc

capacitance tolerance

± 20%（m） 20℃、120hz

leakage current

i=3√cv or 5ma,whichever is smaller）
i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes

dissipation factor（max）

rated voltage（vdc）	160v～400v	420v～500v
tanδmax	0.15	0.20

low temperature characteristics

rated voltage（vdc）	160v～400v	420v～500v
z(-25℃)/z( 20℃)	4	8

endurance

the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 7,000 hours at 105℃

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value 200%(500vdc:250%≦)

leakage current

≤the initial specified value

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4

capacitance change

≤±20% of the initial value

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

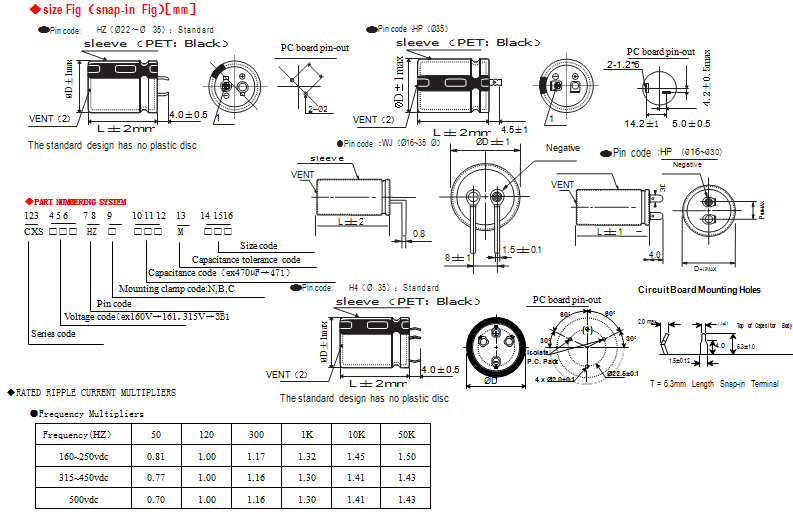

srandrad ratings

wv [vdc]	cap [μf]	case size d x l [mm]	esr 120 hz 20℃[mω]	ripple current ams/105℃, 120hz	par t no.
160v	470	22×25	0.15	1.47	cxs161hzn471mp25
	680	22×30	0.15	1.86	cxs161hzn681mp30
	680	25.4×25	0.15	1.84	cxs161hzn681mq25
	820	22×35	0.15	2.09	cxs161hzn821mp35
	820	25.4×30	0.15	2.08	cxs161hzn821mq30
	1000	22×40	0.15	2.35	cxs161hzn102mp40
	1000	22×45	0.15	2.40	cxs161hzn102mp45
	1000	25.4×35	0.15	2.40	cxs161hzn102mq30
	1000	30×25	0.15	2.50	cxs161hzn102mr25
	1200	22×50	0.15	2.69	cxs161hzn122mp50
	1200	25.4×40	0.15	2.68	cxs161hzn122mq40
	1200	30×30	0.15	2.77	cxs161hzn122mr30
	1200	35×25	0.15	2.91	cxs161hzn122ma25
	1500	25.4×45	0.15	3.05	cxs161hzn152mq45
	1500	30×35	0.15	3.17	cxs161hzn152mr35
	1800	25.4×50	0.15	3.40	cxs161hzn182mq50
	1800	30×40	0.15	3.357	cxs161hzn182mr40
	1800	35×30	0.15	3.62	cxs161hzn182ma30
	2200	30×45	0.15	4.05	cxs161hzn222mr45
	2200	30×50	0.15	4.11	cxs161hzn222mr50
	2200	35×35	0.15	4.07	cxs161hzn222ma35
	2700	35×40	0.15	4.67	cxs161hzn272ma40
	2700	35×45	0.15	4.78	cxs161hzn272ma45
	3300	35×50	0.15	5.40	cxs161hzn333ma50
180v	390	22×25	0.15	1.34	cxs181hzn391mp25
	560	22×30	0.15	1.68	cxs181hzn561mp30
	560	25.4×25	0.15	1.67	cxs181hzn561mq25
	680	22×35	0.15	1.90	cxs181hzn681mp35
	820	22×40	0.15	2.13	cxs181hzn821mp40
	820	25.4×30	0.15	2.08	cxs181hzn821mq30
	820	25.4×35	0.15	2.17	cxs181hzn821mq35
	820	30×25	0.15	2.26	cxs181hzn821mr25
	1000	22×45	0.15	2.40	cxs181hzn102mp45
	1000	22×50	0.15	2.45	cxs181hzn102mp50
	1000	25.4×40	0.15	2.45	cxs181hzn102mq40
	1000	30×30	0.15	2.52	cxs181hzn102mr30
	1000	35×25	0.15	2.66	cxs181hzn102ma25
	1200	25.4×45	0.15	2.73	cxs181hzn122mq45
	1200	30×35	0.15	2.83	cxs181hzn122mr35
	1500	25.4×50	0.15	3.10	cxs181hzn152mq50
	1500	30×40	0.15	3.26	cxs181hzn152mr40
	1500	35×30	0.15	3.31	cxs181hzn152ma30
	1800	30×45	0.15	3.66	cxs181hzn182mr45
	1800	35×35	0.15	3.68	cxs181hzn182ma35
	2200	30×50	0.15	4.11	cxs181hzn222mr50
	2200	35×40	0.15	4.22	cxs181hzn222ma40
	2200	35×45	0.15	4.32	cxs181hzn222ma45
	2700	35×50	0.15	4.88	cxs181hzn272ma50
200v	390	22×35	0.15	1.34	cxs201hzn391mp25
	470	22×30	0.15	1.54	cxs201hzn471mp30
	560	22×35	0.15	1.72	cxs201hzn561mp35
	560	25.4×25	0.15	1.67	cxs201hzn561mq25

200v	680	22×40	0.15	1.94	cxs201hzn681mp40
	680	25.4×30	0.15	1.89	cxs201hzn681mq30
	680	30×25	0.15	2.06	cxs201hzn681mr25
	820	22×45	0.15	2.17	cxs201hzn821mp45
	820	25.4×35	0.15	2.17	cxs201hzn821mq35
	1000	22×50	0.15	2.45	cxs201hzn102mp50
	1000	25.4×40	0.15	2.45	cxs201hzn102mq40
	1000	30×30	0.15	2.52	cxs201hzn102mr30
	1000	35×25	0.15	2.66	cxs201hzn102ma25
	1200	25.4×45	0.15	2.73	cxs201hzn122mq45
	1200	25.4×50	0.15	2.78	cxs201hzn122mq50
	1200	30×35	0.15	2.83	cxs201hzn122mr35
	1200	35×30	0.15	2.96	cxs201hzn122ma30
	1500	30×40	0.15	3.26	cxs201hzn152mr40
	1500	30×45	0.15	3.34	cxs201hzn152mr45
	1500	35×35	0.15	3.36	cxs201hzn152ma35
	1800	30×50	0.15	3.72	cxs201hzn182mr50
	1800	35×40	0.15	3.81	cxs201hzn182ma40
	2200	35×45	0.15	4.32	cxs201hzn222ma45
	2700	35×50	0.15	4.88	cxs201hzn272ma50
250v	270	22×25	0.15	1.11	cxs251hzn271mp25
	330	22×30	0.15	1.29	cxs251hzn331mp30
	390	22×35	0.15	1.44	cxs251hzn391mp35
	390	25.4×25	0.15	1.40	cxs251hzn391mq25
	470	22×40	0.15	1.61	cxs251hzn471mp40
	470	25.4×30	0.15	1.57	cxs251hzn471mq30
	560	22×45	0.15	1.79	cxs251hzn561mp45
	560	25.4×35	0.15	1.79	cxs251hzn561mq35
	560	30×25	0.15	1.87	cxs251hzn561mr25
	680	22×50	0.15	2.02	cxs251hzn681mp50
	680	25.4×40	0.15	2.02	cxs251hzn681mq40
	680	30×30	0.15	2.08	cxs251hzn681mr30
	680	35×25	0.15	2.19	cxs251hzn681ma25
	820	25.4×45	0.15	2.26	cxs251hzn821mq45
	820	25.4×50	0.15	2.29	cxs251hzn821mq50
	820	30×35	0.15	2.34	cxs251hzn821mr35
	820	35×30	0.15	2.45	cxs251hzn821ma30
	1000	30×40	0.15	2.66	cxs251hzn102mr40
	1200	30×45	0.15	2.99	cxs251hzn122mr45
	1200	30×50	0.15	3.04	cxs251hzn122mr50
	1200	35×35	0.15	3.00	cxs251hzn122ma35
	1200	35×40	0.15	3.11	cxs251hzn122ma40
	1500	35×45	0.15	3.56	cxs251hzn152ma45
	1800	35×50	0.15	3.98	cxs251hzn182ma50
315v	180	22×25	0.15	0.95	cxs3b1hzn181mp25
	220	22×30	0.15	1.10	cxs3b1hzn221mp30
	220	25.4×25	0.15	1.10	cxs3b1hzn221mq25
	270	22×35	0.15	1.24	cxs3b1hzn271mp25
	270	25.4×30	0.15	1.25	cxs3b1hzn271mq30
	330	22×40	0.15	1.40	cxs3b1hzn331mp40
	330	30×25	0.15	1.43	cxs3b1hzn331mr25
	390	22×45	0.15	1.56	cxs3b1hzn391mp45

315v	390	22×50	0.15	1.59	cxs3b1hzn391mp50
	390	25.4×35	0.15	1.57	cxs3b1hzn391mq35
	470	25.4×40	0.15	1.76	cxs3b1hzn471mq40
	470	25.4×45	0.15	1.79	cxs3b1hzn471mq45
	470	30×30	0.15	1.73	cxs3b1hzn471mr30
	470	35×25	0.15	1.82	cxs3b1hzn471ma25
	560	25.4×50	0.15	1.99	cxs3b1hzn561mq50
	560	30×35	0.15	1.93	cxs3b1hzn561mr35
	560	35×30	0.15	2.02	cxs3b1hzn561ma30
	680	30×40	0.15	2.19	cxs3b1hzn681mr40
	680	30×45	0.15	2.25	cxs3b1hzn681mr45
	680	35×35	0.15	2.26	cxs3b1hzn681ma35
	820	30×50	0.15	2.51	cxs3b1hzn821mr50
	820	35×40	0.15	2.57	cxs3b1hzn821ma40
	1000	35×45	0.15	2.91	cxs3b1hzn102ma45
	1200	35×50	0.15	3.25	cxs3b1hzn122ma50
400v	120	22×25	0.15	0.77	cxs401hzn121mp25
	150	22×30	0.15	0.90	cxs401hzn151mp30
	180	22×35	0.15	1.02	cxs401hzn181mp35
	180	25.4×25	0.15	0.99	cxs401hzn181mq25
	220	22×40	0.15	1.15	cxs401hzn221mp40
	220	25.4×30	0.15	1.13	cxs401hzn221mq30
	220	30×25	0.15	1.17	cxs401hzn221mr25
	270	22×45	0.15	1.29	cxs401hzn271mp45
	270	22×50	0.15	1.32	cxs401hzn271mp50
	270	25.4×35	0.15	1.30	cxs401hzn271mq35
	330	25.4×40	0.15	1.47	cxs401hzn331mq40
	330	30×30	0.15	1.45	cxs401hzn331mr30
	330	35×25	0.15	1.52	cxs401hzn331ma25
	390	25.4×45	0.15	1.63	cxs401hzn391mq45
	390	25.4×50	0.15	1.66	cxs401hzn391mq50
	390	30×35	0.15	1.61	cxs401hzn391mr35
	390	35×30	0.15	1.68	cxs401hzn391ma30
	470	30×40	0.15	1.82	cxs401hzn471mr40
	470	35×35	0.15	1.88	cxs401hzn471ma35
	560	30×45	0.15	2.04	cxs401hzn561mr45
	560	30×50	0.15	2.07	cxs401hzn561mr50
	560	35×40	0.15	2.13	cxs401hzn561ma40
	680	35×45	0.15	2.4	cxs401hzn681ma45
	820	35×50	0.15	2.69	cxs401hzn821ma50
420v	100	22×25	0.20	0.7	cxs421hzn101mp25
	120	22×30	0.20	0.81	cxs421hzn121mp30
	120	25.4×25	0.20	0.81	cxs421hzn121mq25
	150	22×35	0.20	0.93	cxs421hzn151mp35
	180	22×40	0.20	1.04	cxs421hzn181mp40
	180	25.4×30	0.20	1.02	cxs421hzn181mq30
	180	30×25	0.20	1.06	cxs421hzn181mr25
	220	22×45	0.20	1.17	cxs421hzn221mp45
	220	22×50	0.20	1.20	cxs421hzn221mp50
	220	25.4×35	0.20	1.18	cxs421hzn221mq35
	270	25.4×40	0.20	1.33	cxs421hzn271mq40

420v	270	25.4×45	0.20	1.36	cxs421hzn271mq45
	270	30×30	0.20	1.31	cxs421hzn271mr30
	270	35×25	0.20	1.38	cxs421hzn271ma25
	330	25.4×50	0.20	1.52	cxs421hzn331mq50
	330	30×35	0.20	1.48	cxs421hzn331mr35
	330	35×30	0.20	1.55	cxs421hzn331ma30
	390	30×40	0.20	1.66	cxs421hzn391mr40
	390	30×45	0.20	1.70	cxs421hzn391mr45
	390	35×35	0.20	1.71	cxs421hzn391ma35
	470	30×50	0.20	1.90	cxs421hzn471mr50
	470	35×40	0.20	1.95	cxs421hzn471ma40
	560	35×45	0.20	2.17	cxs421hzn561ma45
	680	35×50	0.20	2.45	cxs421hzn681ma50
450v	82	22×25	0.20	0.64	cxs451hzn820mp25
	120	22×30	0.20	0.81	cxs451hzn121mp30
	120	22×35	0.20	0.83	cxs451hzn121mp35
	120	25.4×25	0.20	0.81	cxs451hzn121mq25
	150	22×40	0.20	0.94	cxs451hzn151mp40
	150	25.4×30	0.20	0.93	cxs451hzn151mq30
	180	22×45	0.20	1.06	cxs451hzn181mp45
	180	25.4×35	0.20	1.06	cxs451hzn181mq35
	180	30×25	0.20	1.06	cxs451hzn181mr25
	220	22×50	0.20	1.20	cxs451hzn221mp50
	220	25.4×40	0.20	1.20	cxs451hzn221mq40
	220	30×30	0.20	1.18	cxs451hzn221mr30
	220	35×25	0.20	1.24	cxs451hzn221ma25
	270	25.4×45	0.20	1.36	cxs451hzn271mq45
	270	25.4×50	0.20	1.38	cxs451hzn271mq50
	270	30×35	0.20	1.34	cxs451hzn271mr35
	270	35×30	0.20	1.40	cxs451hzn271ma30
	330	30×40	0.20	1.52	cxs451hzn331mr40
	390	30×45	0.20	1.70	cxs451hzn391mr45
	390	30×50	0.20	1.73	cxs451hzn391mr50
	390	35×35	0.20	1.71	cxs451hzn391ma35
	470	35×40	0.20	1.95	cxs451hzn471ma40
	470	35×45	0.20	1.99	cxs451hzn471ma45
	560	35×50	0.20	2.22	cxs451hzn561ma50
500v	100	30×25	0.20	0.82	cxs501hzn101mr25
	120	30×30	0.20	0.91	cxs501hzn121mr30
	120	35×25	0.20	0.88	cxs501hzn121ma25
	150	30×35	0.20	1.04	cxs501hzn151mr30
	180	30×40	0.20	1.17	cxs501hzn181mr30
	180	35×30	0.20	1.10	cxs501hzn181ma30
	220	30×45	0.20	1.33	cxs501hzn221mr45
	220	35×35	0.20	1.23	cxs501hzn221ma35
	270	30×50	0.20	1.50	cxs501hzn271mr50
	270	35×40	0.20	1.42	cxs501hzn271ma40
	330	35×45	0.20	1.60	cxs501hzn331ma45
	390	35×50	0.20	1.78	cxs501hzn391ma50
	470	35×60	0.20	2.03	cxs501hzn391ma60
	560	35×70	0.20	2.25	cxs501hzn391ma70
