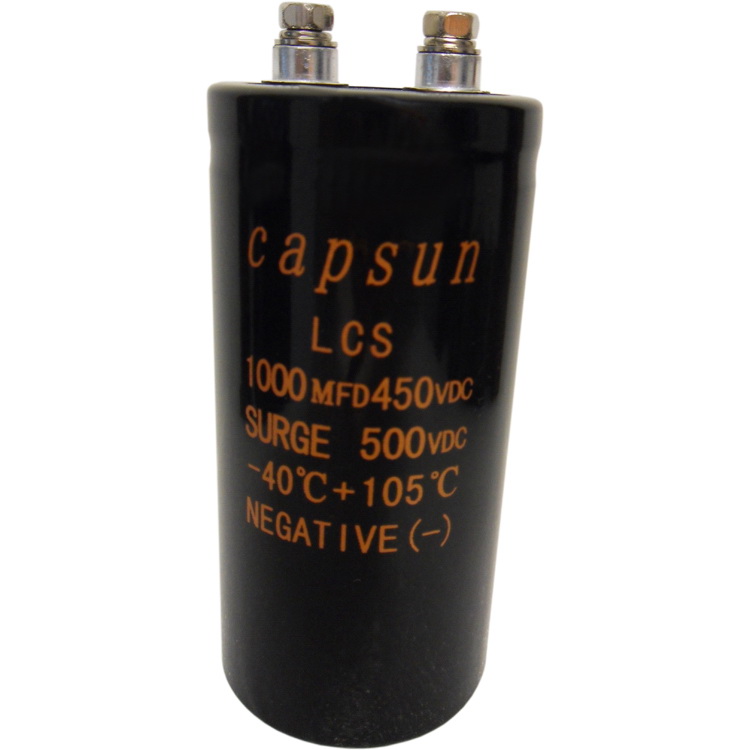

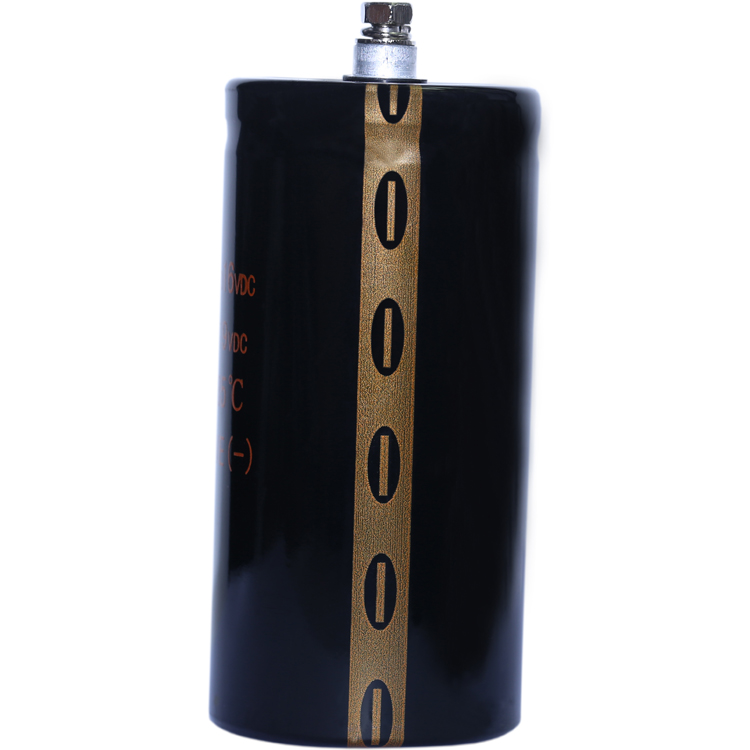

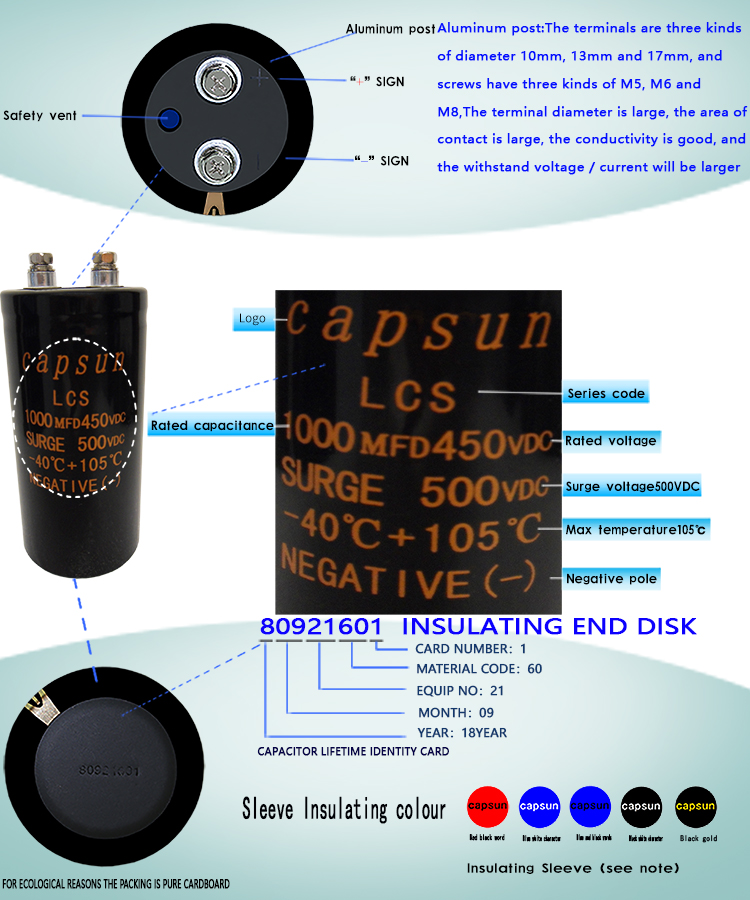

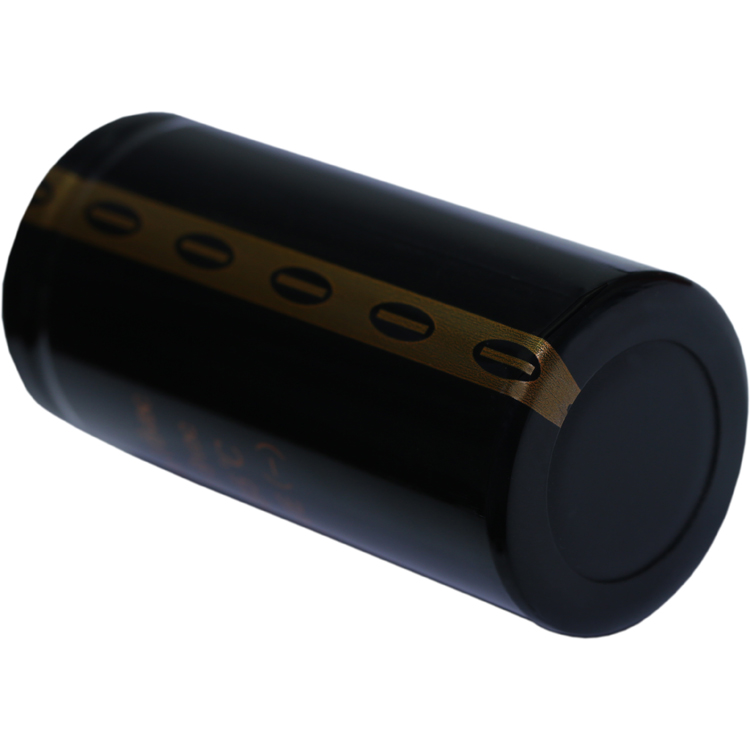

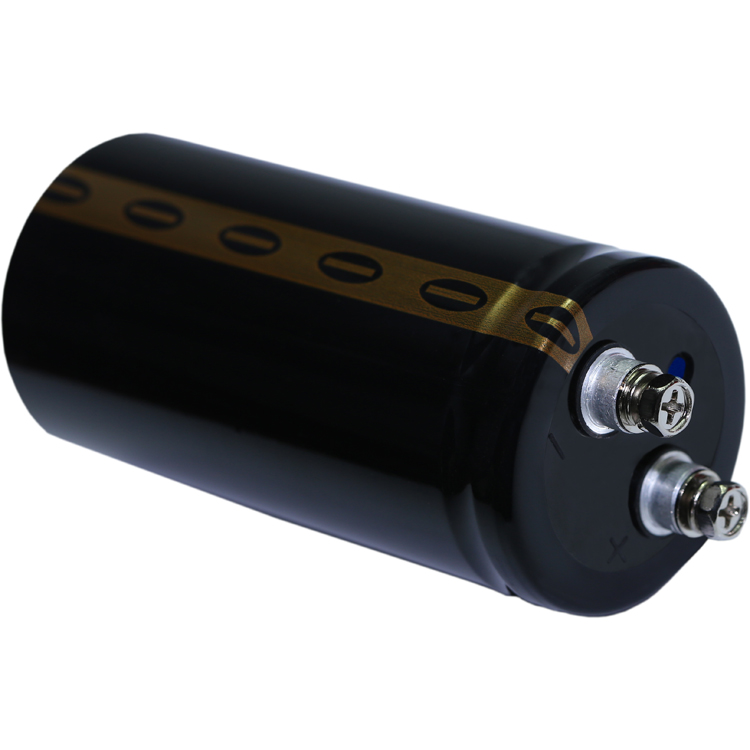

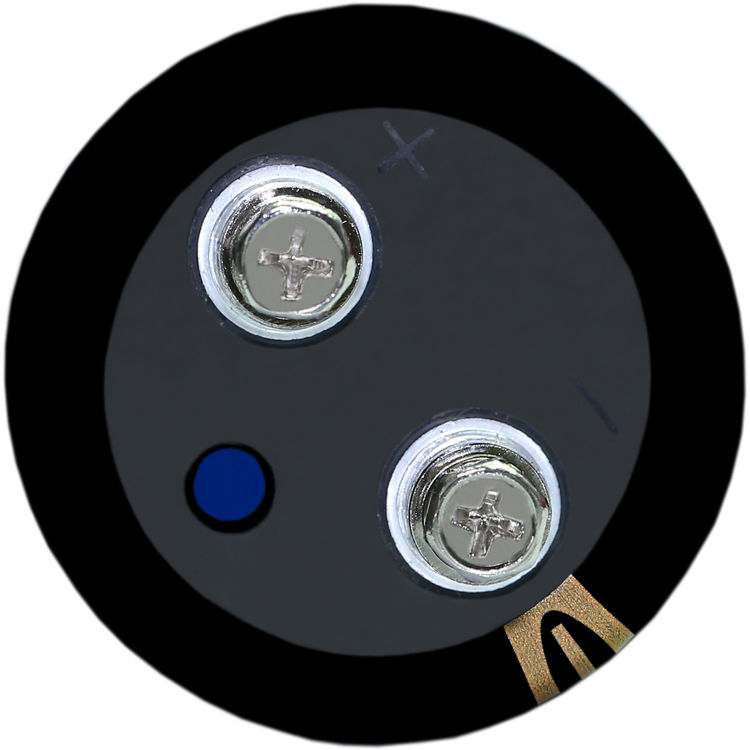

long life,high ripple,downsized aluminum electrolytic capacitor-足球看盘软件
series：
sort：
category：
rated voltage range（vdc）：

download

working cap temperature. standard life(hours)
detailed

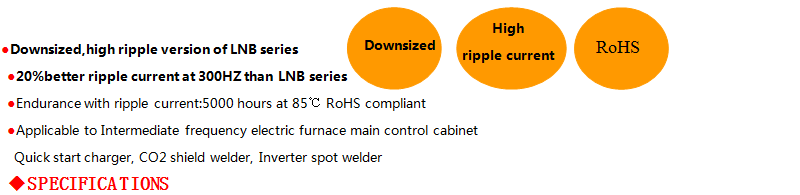

specification

85℃ 5000hours

items	characteristics
category temperature range	-25~ 85℃
rated voltage range	350~450_vdc
capacitance tolerance	± 20%（m） at 20℃/120hz
leakage current	i=0.02cv or 5ma,whichever is smaller i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（tanδ）	0.25max at 20℃/120hz
low temperature characteristics	capacitance change c（-25℃）/c（ 20℃）≥0.7 at 20℃/120hz
insulation resistance	when measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500vdc, the insulation resistance shall not be less than 100mω
insulation withstanding voltage	when a voltage of 2,000vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 85℃。
	capacitance change	≤±20% of the initial value
	d.f. (tanδ)	≤200% of the initial specified value
	leakage current	≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 85℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change	≤±20% of the initial value
	d.f. (tanδ)	≤150% of the initial specified value
	leakage current	≤the initial specified value

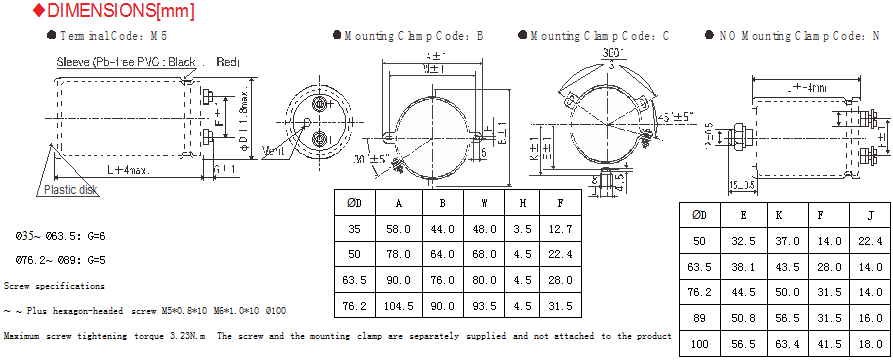

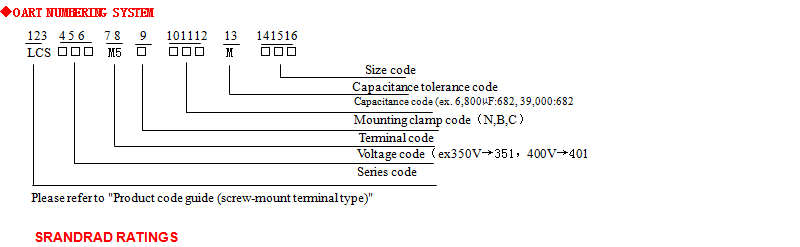

w.v	cap	case size d x l	tanδ120hz,20℃	rated ripple		part no.
w.v	cap	case size d x l		current ams/85℃
[v]	[μf]	[mm]		120hz	300hz
350v	2200	50*96	0.25	7.7	9.2	lcs351m5c222mc96
	2700	50*105	0.25	8.9	10.6	lcs351m5c272mca5
	3300	50*115	0.25	10.3	12.3	lcs351m5c332mcb5
	3900	50*130	0.25	11.8	14.1	lcs351m5c392mcd0
	4700	63.5*115	0.25	13.6	16.3	lcs351m5c472mdb5
	5600	63.5*130	0.25	15.7	18.8	lcs351m5c562mdd0
	6800	63.5*155	0.25	18.8	22.5	lcs351m5c682mdf5
	6800	76.2*115	0.25	18.2	21.8	lcs351m5c682meb5
	8200	63.5*190	0.25	22.6	27.1	lcs351m5c822mdk0
	8200	76.2*130	0.25	21	25.2	lcs351m5c822med0
	10000	76.2*155	0.25	25.1	30.1	lcs351m5c103mef5
	12000	76.2*170	0.25	28.7	34.4	lcs351m5c123meh0
	15000	89*155	0.25	33.6	40.3	lcs351m5c153mff5
	15000	89*170	0.25	35	42	lcs351m5c153mfh0
	18000	89*190	0.25	40.3	48.3	lcs351m5c183mfk0
400v	1800	50*96	0.25	7	8.4	lcs401m5c182mc96
	2200	50*105	0.25	8.1	8.4	lcs401m5c222mca5
	2700	50*115	0.25	9.3	11.1	lcs401m5c272mcb5
	3300	50*130	0.25	10.9	13	lcs401m5c332mcd0
	3900	63.5*115	0.25	12.4	14.8	lcs401m5c392mdb5
	4700	63.5*130	0.25	14.4	17.2	lcs401m5c472mdd0
	5600	63.5*155	0.25	17	20.4	lcs401m5c562mdf5
	5600	76.2*115	0.25	16.5	19.8	lcs401m5c562meb5
	6800	63.5*190	0.25	20.6	24.7	lcs401m5c682mdk0
	6800	76.2*130	0.25	19.2	23	lcs401m5c682med0
	8200	76.2*155	0.25	22.7	27.2	lcs401m5c822mef5
	10000	76.2*170	0.25	26.2	31.4	lcs401m5c103meh0
	12000	89*155	0.25	30	36	lcs401m5c123mff5
	12000	89*170	0.25	31.3	37.5	lcs401m5c123mfh0
	15000	89*190	0.25	36.7	44	lcs401m5c153mfk0
450v	1500	50*96	0.25	6.4	7.6	lcs451m5c152mc96
	1800	50*105	0.25	7.3	8.7	lcs451m5c182mca5
	2200	50*115	0.25	8.4	10	lcs451m5c222mcb5
	2700	50*130	0.25	9.8	11.7	lcs451m5c272mcd0
	3300	63.5*115	0.25	11.4	13.6	lcs451m5c332mdb5
	3900	63.5*130	0.25	13.1	15.7	lcs451m5c392mdd0
	4700	63.5*155	0.25	15.6	18.7	lcs451m5c472mdf5
	4700	76.2*115	0.25	15.1	18.1	lcs451m5c472meb5
	5600	63.5*190	0.25	18.7	22.4	lcs451m5c562mdk0
	5600	76.2*130	0.25	17.4	20.8	lcs451m5c562med0
	6800	76.2*155	0.25	20.7	24.8	lcs451m5c682mef5
	8200	76.2*170	0.25	23.7	28.4	lcs451m5c822meh0
	10000	89*155	0.25	27.4	32.8	lcs451m5c103mff5
	10000	89*170	0.25	28.6	34.3	lcs451m5c103mfh0
	12000	89*190	0.25	32.9	39.4	lcs451m5c123mfk0

◆ rted ripple current muiers
● frequency multipliers

frequency（hz）	50	120	300	1k	3k
coefficient	0.8	1.0	1.2	1.4	1.5

note : the endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5 to 10℃ rise. when long life performance is required in actual use, the rms ripple current has to be reduced. also, for the lnb series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. for the details, please contact representative of capsun。
