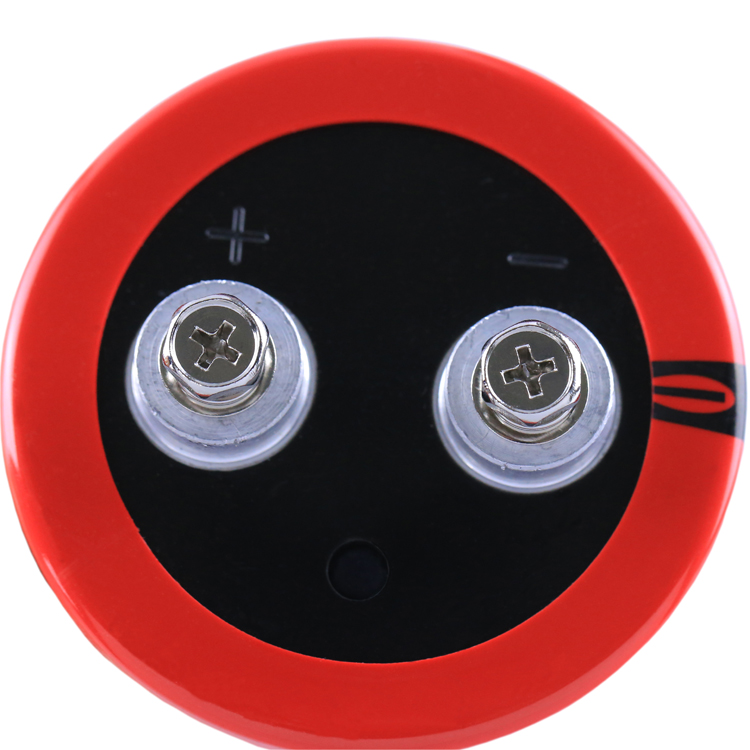

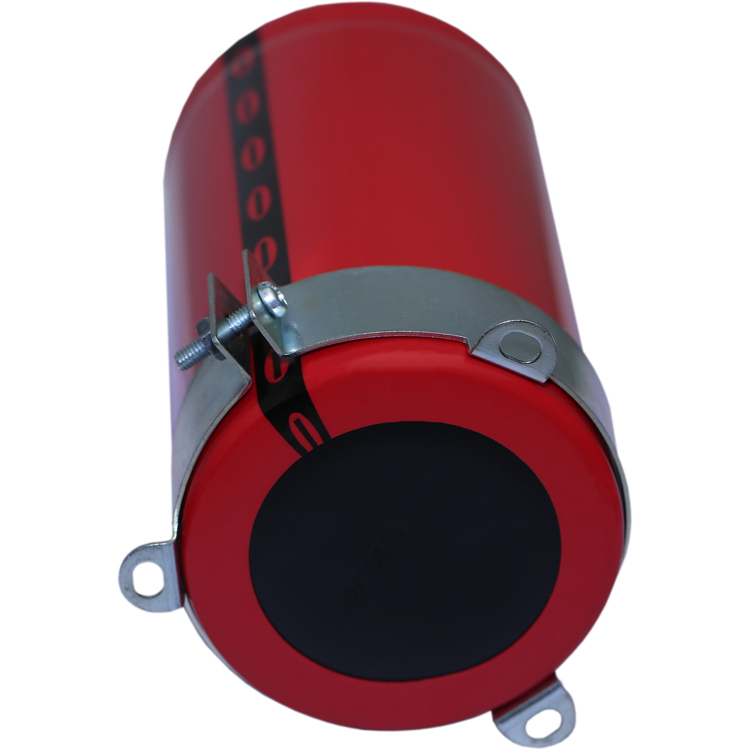

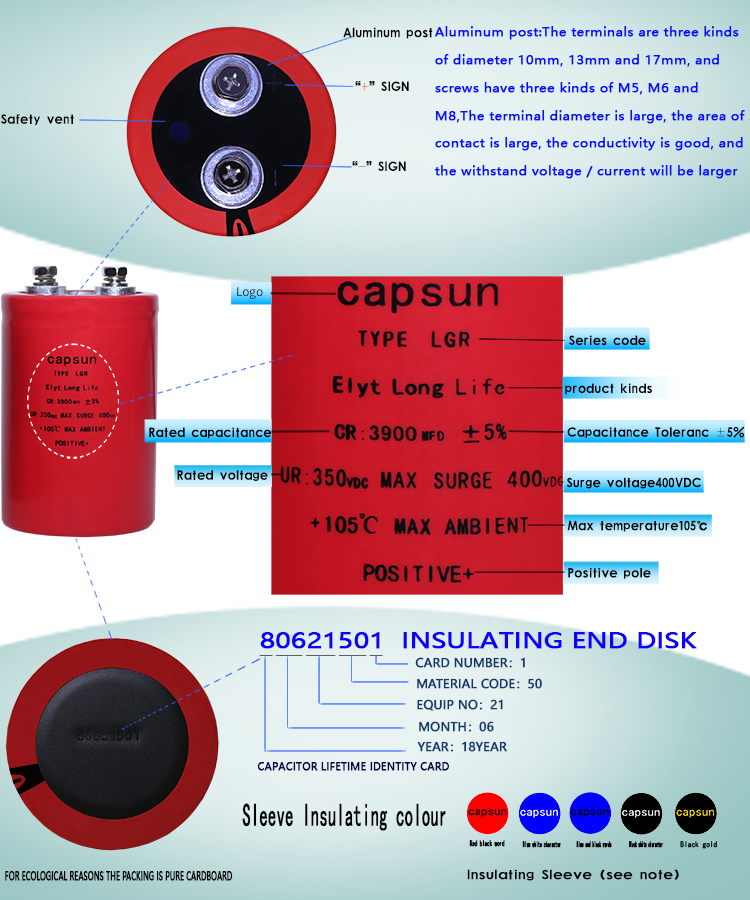

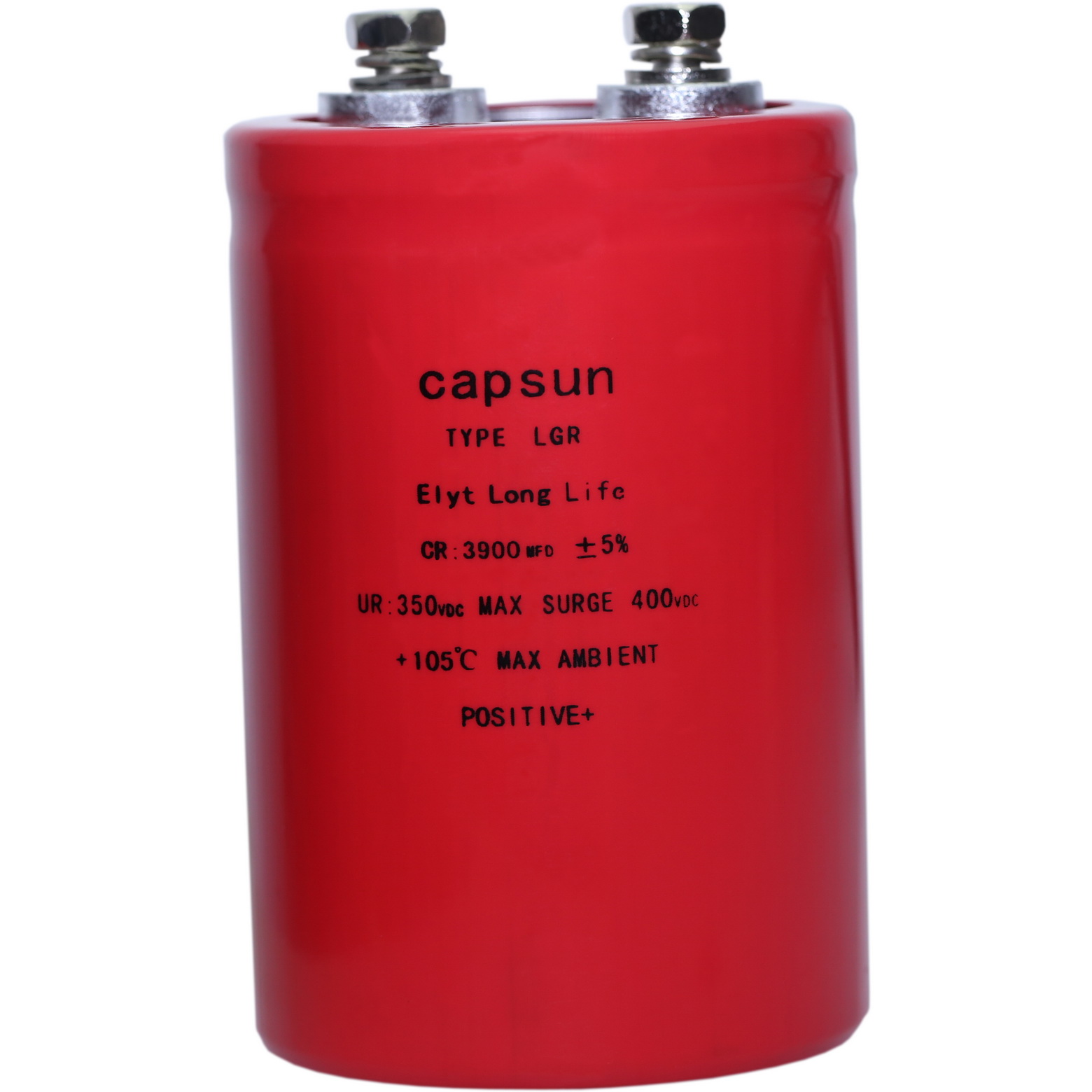

long life,high ripple aluminum electrolytic capacitor-足球看盘软件

105℃ 5000hours

items	characteristics
category temperature range	-25~ 105℃
rated voltage range	6.3~550vdc
capacitance tolerance	± 20%（m）                                                                                                               at 20℃/120hz
leakage current	i=0.02cv or 5ma,whichever is smaller i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（tanδ）	0.15max                                                                                                                   at 20℃/120hz
low temperature characteristics	capacitance change c（-25℃）/c（ 20℃）≥0.7                                                                         at 20℃/120hz
insulation resistance	when measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500vdc, the insulation resistance shall not be less than 100mω
insulation withstanding voltage	when a voltage of 2,000vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage.。
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 105℃。
	capacitance change	≤±20% of the initial value
	d.f. (tanδ)	≤200% of the initial specified value
	leakage current	≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change	≤±20% of the initial value
	d.f. (tanδ)	≤150% of the initial specified value
	leakage current	≤the initial specified value

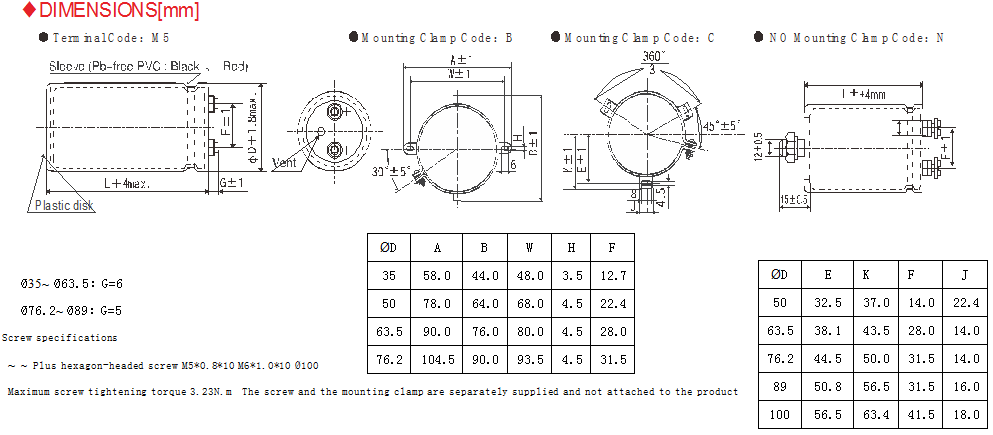

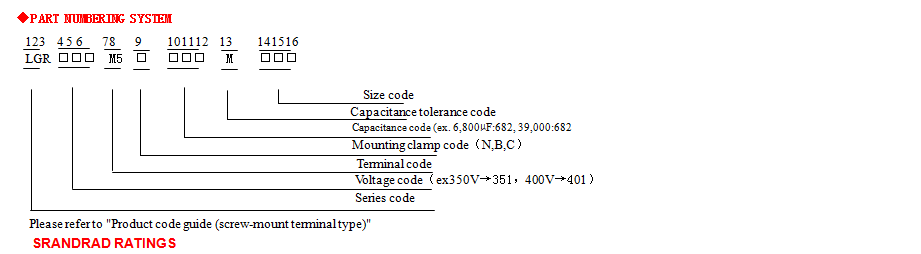

rated voltage ur [v] rated cap.cr [μf] case size d x l [mm] typ.esr 100 hz, 20°c [mω] ripple current ir~100 hz,95℃[a] order code 6.3v 8sv 27000 35*40 46.9 4.7 lgr6r3m5b273ma40 55000 35*55 26.5 6.9 lgr6r3m5b553ma55 66000 35*65 18.8 8.9 lgr6r3m5b663ma65 87000 35*80 14.7 10.7 lgr6r3m5b873ma80 96000 35*55 18.8 9.6 lgr6r3m5b963ma55 110000 35*90 12.8 12.1 lgr6r3m5b114ma90 120000 35*65 14.3 11.8 lgr6r3m5b124ma65 120000 50*55 14.2 12.0 lgr6r3m5b124mc55 130000 35*106 11.0 13.7 lgr6r3m5b134maa6 140000 50*65 9.9 15.5 lgr6r3m5b144mc65 150000 35*116 9.8 15.2 lgr6r3m5b154mab6 160000 35*78 11.0 14.3 lgr6r3m5b164ma78 170000 35*131 8.9 16.5 lgr6r3m5b174mad1 190000 35*141 8.3 17.8 lgr6r3m5b194mae1 190000 35*90 9.1 16.6 lgr6r3m5b194ma90 200000 50*80 7.8 18.4 lgr6r3m5b204mc80 230000 35*106 7.9 18.7 lgr6r3m5b234maa6 250000 50*90 6.5 21.4 lgr6r3m5b254mc90 250000 65*65 6.9 21.2 lgr6r3m6c254md65 270000 35*116 7.0 20.6 lgr6r3m5b274mab6 300000 50*106 5.6 24.1 lgr6r3m5b304mca6 310000 35*131 6.4 22.4 lgr6r3m5b314mad1 340000 65*80 5.3 25.8 lgr6r3m6c344md80 350000 35*141 6.0 24.0 lgr6r3m5b354mae1 360000 50*116 5.0 26.6 lgr6r3m5b364mcb6 410000 50*131 4.5 28.8 lgr6r3m5b414mcd1 420000 65*90 4.3 29.9 lgr6r3m6c424md90 450000 50*141 4.2 30.9 lgr6r3m5b454mce1 500000 76*80 4.1 32.9 lgr6r3m6c504me80 510000 65*106 3.8 33.4 lgr6r3m6c514mda6 580000 65*116 3.4 36.8 lgr6r3m6c584mdb6 620000 76*90 3.3 32.8 lgr6r3m6c624me90 680000 65*131 3.1 40.0 lgr6r3m6c684mdd1 740000 76*106 2.9 42.5 lgr6r3m6c744mea6 760000 65*141 2.8 42.9 lgr6r3m6c764mde1 880000 76*116 2.6 46.7 lgr6r3m6c884meb6 980000 76*131 2.4 50.6 lgr6r3m6c984med1 1100000 76*141 2.4 51.3 lgr6r3m6c115mee1 1100000 89*106 3.0 46.4 lgr6r3m6c115mfa6 1100000 89*116 2.6 51.0 lgr6r3m6c115mfb6 1200000 76*146 2.4 52.0 lgr6r3m6c125mee6 1400000 89*131 2.4 55.4 lgr6r3m6c145mfd1 1600000 89*141 2.4 56.1 lgr6r3m6c165mfe1 1600000 76*192 2.6 55.9 lgr6r3m6c165mek1 1700000 89*146 2.4 57.0 lgr6r3m6c175mfe6 1800000 76*217 2.4 58.6 lgr6r3m6c185men7 2300000 89*192 2.4 61.7 lgr6r3m6c235mfk1 2600000 89*217 2.4 64.4 lgr6r3m6c265mfn7 10v 12sv 22000 35*40 46.9 4.7 lgr010m5b223ma40 39000 35*55 26.5 6.9 lgr010m5b393ma55 52000 35*65 20.1 8.6 lgr010m5b523ma65 70000 35*80 15.5 10.5 lgr010m5b703ma80 71000 35*55 18.8 9.6 lgr010m5b713ma55 87000 35*90 12.8 12.1 lgr010m5b873ma90 95000 35*65 14.3 11.8 lgr010m5b953ma65 100000 35*106 11.0 13.7 lgr010m5b104maa6 100000 50*55 17.6 10.7 lgr010m5b104mc50 120000 35*116 9.8 15.2 lgr010m5b124mab6 130000 35*80 11.0 14.3 lgr010m5b134ma80 130000 50*65 13.4 13.3 lgr010m5b134mc65 140000 35*131 41.9 16.5 lgr010m5b144mad1 160000 35*141 8.3 17.8 lgr010m5b164mae1 160000 35*90 9.1 16.6 lgr010m5b164ma90 160000 50*80 10.5 16.0 lgr010m5b164mc80 190000 35*106 7.9 18.7 lgr010m5b194maa6 200000 50*90 8.7 18.5 lgr010m5b204mc90 200000 65*65 8.8 18.9 lgr010m6c204md65 220000 35*116 7.0 20.6 lgr010m5b224mab6 240000 50*106 7.5 20.8 lgr010m5b244mca6 250000 35*131 6.4 22.4 lgr010m5b254mad1 270000 65*80 6.7 22.9 lgr010m6c274md80 280000 35*141 6.0 24.0 lgr010m5b284mae1 280000 50*116 6.7 22.9 lgr010m5b284mcb6 320000 50*131 6.1 24.8 lgr010m5b324mcd1 340000 65*90 5.5 26.5 lgr010m6c344md90 360000 50*141 5.7 26.5 lgr010m5b364mce1 400000 76*80 4.1 32.9 lgr010m6c404me80 410000 65*106 4.8 29.6 lgr010m6c414mda6 480000 65*116 4.3 32.6 lgr010m6c484mdb6 500000 76*90 3.3 38.2 lgr010m6c504me90 550000 65*131 3.9 35.3 lgr010m6c554mdd1 600000 76*106 2.9 42.5 lgr010m6c604mea6 610000 65*141 3.6 37.9 lgr010m6c614mde1 700000 76*116 2.6 46.7 lgr010m6c704meb6 800000 76*131 2.4 50.6 lgr010m6c804med1 830000 89*106 2.9 47.3 lgr010m6c834mfa6 870000 76*141 2.3 53.0 lgr010m6c874mee1 930000 76*146 2.3 53.3 lgr010m6c934mee6 970000 89*116 2.8 49.6 lgr010m6c974mfb6 1100000 89*131 2.5 54.5 lgr010m6c115mfd1 1200000 89*141 2.2 59.0 lgr010m6c125mfe1 1300000 89*146 2.1 60.8 lgr010m6c135mfe6 1300000 76*192 2.1 60.1 lgr010m6c135mek2 1500000 76*217 2.1 63.7 lgr010m6c155men7 1700000 89*192 1.8 73.4 lgr010m6c175mfk2 2000000 89*217 1.5 80.5 lgr010m6c205mfn7 16v 20sv 15000 35*40 46.9 4.7 lgr016m5b153ma40 27000 35*55 26.5 6.9 lgr016m5b273ma55 36000 35*65 20.1 8.6 lgr016m5b363ma65 48000 35*80 15.5 10.5 lgr016m5b483ma80 49000 35*55 18.8 9.6 lgr016m5b493ma50 61000 35*90 12.8 12.1 lgr016m5b613ma90 66000 35*65 15.3 11.4 lgr016m5b663ma65 71000 50*55 17.6 10.7 lgr016m5b713mc55 73000 35*106 11.0 13.7 lgr016m5b733maa6 85000 35*116 9.8 15.2 lgr016m5b853mab6 88000 35*80 12.5 13.5 lgr016m5b883ma80 90000 50*65 13.4 13.3 lgr016m5b903mc65 97000 35*131 8.9 16.5 lgr016m5b973mad1 110000 35*141 8.3 17.8 lgr016m5b114mae1 110000 35*90 10.9 15.2 lgr016m5b114ma90 110000 50*80 10.5 16.0 lgr016m5b114mc80 130000 35*106 9.7 16.9 lgr016m5b134maa6 140000 50*90 8.7 18.5 lgr016m5b144mc90 140000 65*65 8.8 18.9 lgr016m6c144md65 150000 35*116 8.8 18.5 lgr016m5b154mab6 170000 50*106 7.5 20.8 lgr016m5b174mca6 180000 35*131 8.2 19.9 lgr016m5b184mad1 190000 65*80 6.7 22.9 lgr016m6c194md80 200000 35*141 7.8 21.1 lgr016m5b204mae1 200000 50*116 6.7 22.9 lgr016m5b204mcb6 220000 50*131 6.1 24.8 lgr016m5b224mcd1 230000 65*90 5.5 26.5 lgr016m6c234md90 250000 50*141 5.7 26.5 lgr016m5b254mce1 280000 65*106 5.0 29.2 lgr016m6c284mda6 280000 76*80 4.2 32.4 lgr016m6c284me80 320000 65*116 4.6 31.4 lgr016m6c324mdb6 350000 76*90 3.6 36.8 lgr016m6c354me90 370000 65*131 4.4 33.4 lgr016m6c374mdd1 420000 65*141 4.2 35.2 lgr016m6c424mde1 420000 76*106 3.3 40.2 lgr016m6c424mea6 490000 76*116 3.1 42.8 lgr016m6c494meb6 550000 76*131 2.8 46.2 lgr016m6c554med1 600000 89*106 2.9 47.3 lgr016m6c604mfa6 610000 76*141 2.8 48.1 lgr016m6c614mee1 640000 76*146 2.8 48.8 lgr016m6c644mee6 700000 89*116 2.8 49.7 lgr016m6c704mfb6 800000 89*131 2.5 54.4 lgr016m6c804mfd1 870000 89*141 2.4 56.7 lgr016m6c874mf1 900000 76*192 2.6 54.1 lgr016m6c904mek2 920000 89*146 2.4 57.3 lgr016m6c924mfe6 1000000 76*217 2.6 57.1 lgr016m6c105men7 1300000 89*192 2.3 63.1 lgr016m6c135mfk2 1500000 89*217 2.3 66.4 lgr016m6c155mnf7 25v 30sv 11000 35*40 37.1 5.3 lgr025m5b113ma40 18000 35*55 23.6 7.4 lgr025m5b183ma55 26000 35*65 16.9 9.4 lgr025m5b263ma65 33000 35*55 21.8 8.9 lgr025m5b333ma55 34000 35*65 17.1 10.0 lgr025m5b343ma65 39000 35*65 19.4 10.2 lgr025m5b393ma65 43000 35*90 17.7 10.3 lgr025m5b433ma90 47000 50*55 21.8 9.7 lgr025m5b473mc55 51000 35*106 16.3 11.3 lgr025m5b513maa6 53000 50*65 16.5 12.0 lgr025m5b533mc65 54000 35*80 15.2 12.2 lgr025m5b543ma80 60000 35*116 15.4 12.1 lgr025m5b603mab6 69000 35*131 14.4 13.0 lgr025m5b693mad1 69000 50*80 12.2 14.8 lgr025m5b693mc80 70000 35*90 12.8 14.1 lgr025m5b703ma90 77000 35*141 13.4 14.0 lgr025m5b773mae1 82000 65*65 9.5 18.1 lgr025m6c823md65 86000 35*106 11.2 15.7 lgr025m5b863maa6 89000 50*90 9.8 17.4 lgr025m5b893mc90 100000 35*116 10.2 17.1 lgr025m5b104mab6 110000 50*106 8.3 19.7 lgr025m5b114mca6 110000 65*80 7.6 21.5 lgr025m6c114md80 120000 35*141 9.6 18.4 lgr025m5b124mae1 130000 35*116 9.1 19.5 lgr025m5b134mab6 130000 50*116 7.3 21.9 lgr025m5b134mcb6 150000 50*131 6.6 23.9 lgr025m5b154mcd1 150000 65*90 6.4 24.6 lgr025m6c154md90 170000 50*141 6.1 25.7 lgr025m5b174mce1 170000 76*80 5.0 29.7 lgr025m6c174me80 180000 65*106 5.8 27.0 lgr025m6c184mda6 210000 65*116 5.2 29.5 lgr025m6c214mdb6 220000 76*90 4.3 31.1 lgr025m6c224me90 250000 65*131 5.0 33.6 lgr025m6c254mdd1 270000 76*106 3.9 36.9 lgr025m6c274mea6 280000 65*141 4.6 33.7 lgr025m6c284mde1 320000 76*116 3.5 40.0 lgr025m6c324meb6 370000 76*131 3.3 42.7 lgr025m6c374med1 390000 89*106 3.8 40.9 lgr025m6c394mfa6 420000 76*141 3.2 44.9 lgr025m6c424meb1 440000 76*146 3.1 46.5 lgr025m6c444mee6 460000 89*116 3.5 44.4 lgr025m6c464mfb6 530000 89*131 3.2 47.4 lgr025m6c534mfd1 600000 89*141 3.1 50.2 lgr025m6c604mfe1 610000 76*192 3.1 50.2 lgr025m6c614mek2 630000 89*146 2.9 51.8 lgr025m6c634mfe6 710000 76*217 3.0 52.8 lgr025m6c714men7 870000 89*192 3.0 55.6 lgr025m6c874mfk2 1000000 89*217 2.9 58.3 lgr025m6c105mfn7 35v 40sv 6600 35*40 41.7 5.0 lgr035m5b662ma40 11000 35*55 26.7 6.9 lgr035m5b113ma55 16000 35*65 19.5 8.7 lgr035m5b163ma65 20000 35*55 22.3 8.8 lgr035m5b203ma55 21000 35*80 19.4 9.3 lgr035m5b213ma80 24000 35*65 19.2 10.2 lgr035m5b243ma65 26000 35*90 19.7 9.8 lgr035m5b263ma90 26000 50*55 24.5 9.1 lgr035m5b263mc55 32000 35*106 18.7 10.5 lgr035m5b323maa6 33000 50*65 20.1 10.8 lgr035m5b333mc65 34000 35*80 15.5 12.1 lgr035m5b343ma80 37000 35*116 16.7 11.6 lgr035m5b373mab6 42000 35*131 14.8 12.9 lgr035m5b423mad1 43000 35*90 13.2 13.8 lgr035m5b433ma90 43000 50*80 15.9 13.0 lgr035m5b433mc80 48000 35*141 13.5 14.0 lgr035m5b483mae1 51000 65*65 14.8 14.5 lgr035m6c513md65 53000 35*106 11.8 15.3 lgr035m5b533maa6 55000 50*90 13.2 15.0 lgr035m5b553mc90 62000 35*116 10.6 16.8 lgr035m5b623mab6 67000 50*106 11.6 16.7 lgr035m5b673mca6 70000 65*80 11.5 17.2 lgr035m6c713md80 71000 65*80 11.5 17.5 lgr035m6c713md80 72000 35*131 9.8 18.2 lgr035m5b723mad1 80000 50*116 10.5 18.2 lgr035m5b803mcb6 82000 35*141 9.4 19.2 lgr035m5b823mae1 91000 65*90 9.4 20.3 lgr035m6c913md90 92000 50*131 9.8 19.5 lgr035m5b923mcd1 100000 50*141 9.4 20.7 lgr035m5b104mce1 110000 65*106 8.2 22.6 lgr035m6c114mda6 110000 76*80 6.9 25.3 lgr035m6c114me80 130000 65*116 7.4 24.8 lgr035m6c134mdb6 140000 76*90 5.7 29.1 lgr035m6c144me90 150000 65*131 6.8 26.8 lgr035m6c154mdd1 170000 65*141 6.1 29.2 lgr035m6c174mde1 170000 76*106 5.2 32.0 lgr035m6c174mea6 200000 76*116 4.7 34.8 lgr035m6c204meb6 230000 76*131 4.4 37.2 lgr035m6c234med1 240000 89*106 4.9 36.0 lgr035m6c244mfa6 260000 76*141 4.0 39.9 lgr035m6c264mee1 270000 76*146 3.9 41.3 lgr035m6c274mee6 280000 89*116 4.5 39.0 lgr035m6c284mfb6 330000 89*131 4.0 42.6 lgr035m6c334mfd1 370000 89*141 3.6 46.0 lgr035m6c374mfe1 380000 76*192 3.8 45.3 lgr035m6c384mek2 390000 89*146 3.5 47.5 lgr035m6c394mfe6 440000 76*217 3.6 48.1 lgr035m6c444men7 540000 89*192 3.4 52.1 lgr035m6c544mfk2 630000 89*217 3.3 55.2 lgr035m6c634mfn7 50v 65sv 4500 35*40 47.9 4.7 lgr050m5b452ma40 7600 35*55 30.9 6.4 lgr050m5b762ma55 11000 35*65 21.8 8.3 lgr050m5b113ma65 14000 35*80 20.9 9.0 lgr050m5b143ma80 14000 35*55 22.8 8.7 lgr050m5b143ma55 16000 35*65 20.2 10.0 lgr050m5b163ma65 17000 50*55 25.3 9.0 lgr050m5b173mc55 18000 35*90 17.8 10.3 lgr050m5b183ma90 21000 35*106 17.3 11.0 lgr050m5b213maa6 22000 50*65 20.8 10.7 lgr050m5b223mc65 23000 35*80 15.6 12.1 lgr050m5b233ma80 25000 35*116 16.8 11.6 lgr050m5b253mab6 29000 35*131 15.1 12.7 lgr050m5b293mad1 29000 50*80 16.3 12.8 lgr050m5b293mc80 32000 34*141 13.8 13.8 lgr050m5b323mae1 34000 65*65 15.1 14.4 lgr050m6c343md65 36000 35*106 12.0 15.2 lgr050m5b363maa6 37000 50*90 13.6 14.8 lgr050m5b373mc90 42000 35*116 10.8 16.6 lgr050m5b423mab6 46000 50*106 11.9 16.5 lgr050m5b463mca6 48000 65*80 12.0 17.1 lgr050m6c483md80 49000 35*131 9.8 18.1 lgr050m5b493mad1 54000 50*116 10.8 18.0 lgr050m5b543mcb6 55000 35*141 9.5 19.1 lgr050m5b553mae1 62000 50*131 10.0 19.4 lgr050m5b623mcd1 62000 65*90 10.3 19.4 lgr050m6c623md90 70000 50*141 9.5 20.5 lgr050m5b703mce1 72000 76*80 9.1 22.0 lgr050m6c723me80 75000 65*106 8.9 21.8 lgr050m6c753mda6 89000 65*116 7.9 24.0 lgr050m6c893mdb6 92000 76*90 7.7 25.1 lgr050m6c923me90 100000 65*131 7.2 26.0 lgr050m6c104mdd1 110000 76*106 6.9 27.6 lgr050m6c114mea6 120000 65*141 6.7 27.9 lgr050m6c124mde1 130000 76*116 6.1 30.4 lgr050m6c134meb6 150000 76*131 5.9 32.0 lgr050m6c154med1 150000 89*106 6.4 31.7 lgr050m6c154mfa6 170000 76*141 5.6 33.8 lgr050m6c174mee1  180000 76*146 5.4 35.0 lgr050m6c184mee6 180000 89*116 5.7 34.7 lgr050m6c184mfb6 200000 89*131 5.4 36.8 lgr050m6c204mfd1 230000 89*141 5.0 39.0 lgr050m6c234mfe1 250000 89*146 5.30 40.0 lgr050m6c254mfe6 260000 76*192 5.0 42.0 lgr050m6c264mek2 300000 76*217 4.0 45.0 lgr050m6c304men7 340000 89*192 4.0 47.0 lgr050m6c344mfk2 400000 89*217 4.0 51.0 lgr050m6c404mfn7 63v 75sv 3400 35*40 60.6 4.1 lgr063m5b342ma40 5800 35*55 39.0 5.7 lgr063m5b582ma55 8200 35*65 27.4 7.4 lgr063m5b822ma65 11000 35*80 25.2 8.2 lgr063m5b113ma80 11000 35*55 27.9 7.9 lgr063m5b113ma55 12000 35*65 25.6 8.8 lgr063m5b123ma65 13000 50*55 28.0 8.5 lgr063m5b133mc55 14000 35*90 23.7 8.9 lgr063m5b143ma90 15000 50*65 22.6 10.2 lgr063m5b153mc65 16000 35*106 20.4 10.1 lgr063m5b163maa6 17000 35*80 19.5 10.8 lgr063m5b173ma80 19000 35*116 18.1 11.2 lgr063m5b193mab6 20000 50*80 18.1 12.1 lgr063m5b203mc80 22000 35*131 16.4 12.2 lgr063m5b223mad1 22000 35*90 16.2 12.5 lgr063m5b223ma90 24000 65*65 26.8 10.8 lgr063m6c243md65 25000 35*141 15.1 13.2 lgr063m5b253mae1 26000 50*90 15.1 14.0 lgr063m5b263mc90 27000 35*106 14.2 14.0 lgr063m5b273maa6 32000 35*116 12.8 15.3 lgr063m5b323mab6 32000 50*106 13.3 15.6 lgr063m5b323mca6 34000 65*80 19.3 13.5 lgr063m6c343md80 37000 35*131 11.8 16.5 lgr063m5b373mad1 38000 50*116 12.1 17.0 lgr063m5b383mcb6 42000 35*141 11.2 17.6 lgr063m5b423mae1 43000 65*90 17.1 15.1 lgr063m6c433md90 44000 50*131 11.3 18.3 lgr063m5b443mcd1 49000 50*141 10.7 19.4 lgr063m5b493mce1 50000 76*80 14.9 17.2 lgr063m6c503me80 53000 65*106 13.7 17.5 lgr063m6c533mda6 62000 65*116 11.8 19.6 lgr063m6c623mdb6 65000 76*90 12.1 20.0 lgr063m6c653me90 72000 65*131 11.0 21.1 lgr063m6c723mdd1 79000 76*106 10.8 22.1 lgr063m6c793mea6 82000 65*141 10.5 22.3 lgr063m6c823mde1 93000 76*116 9.9 23.9 lgr063m6c933meb6 110000 76*131 8.8 26.3 lgr063m6c114med1 110000 89*106 9.9 25.4 lgr063m6c114mfa6 120000 76*141 7.9 28.5 lgr063m6c124mee1 130000 76*146 7.5 29.6 lgr063m6c134mee6 130000 89*116 9.0 27.6 lgr063m6c134mfb6 150000 89*131 7.9 30.3 lgr063m6c154mfd1 170000 89*141 7.2 32.8 lgr063m6c174mfe1 180000 76*192 6.5 35.0 lgr063m6c184mek2 180000 89*146 6.8 34.0 lgr063m6c184mfe6 210000 76*217 5.7 38.3 lgr063m6c214men7 250000 89*192 5.8 40.2 lgr063m6c254mfk2 290000 89*217 5.2 43.9 lgr063m6c294mfn7 75v 95sv 2700 35*40 76.2 3.7 lgr075m5b272ma40 4300 35*55 50.7 5.0 lgr075m5b432ma55 6400 35*65 35.0 6.5 lgr075m5b642ma65 8300 35*55 55.6 5.6 lgr075m5b832ma55 8600 35*96 34.0 7.1 lgr075m5b862ma96 9800 35*65 47.3 6.5 lgr075m5b982ma65 10000 50*55 34.8 7.7 lgr075m5b103mc55 11000 35*90 31.1 7.8 lgr075m5b113ma90 11000 50*65 27.5 9.3 lgr075m5b113mc65 13000 35*106 28.2 8.6 lgr075m5b133maa6 14000 35*90 34.1 8.2 lgr075m5b143ma90 15000 35*116 24.5 9.6 lgr075m5b153mab6 16000 50*80 21.4 11.2 lgr075m5b163mc80 17000 35*131 22.5 10.4 lgr075m5b173mad1 18000 35*90 26.9 9.7 lgr075m5b183ma90 19000 35*141 20.4 11.3 lgr075m5b193mae1 19000 65*65 30.0 10.2 lgr075m6c193md65 21000 35*106 22.3 11.1 lgr075m5b213maa6 21000 50*90 18.0 12.8 lgr075m5b213mc90 25000 35*116 19.2 12.5 lgr075m5b253mab6 25000 50*106 15.6 14.4 lgr075m5b253mca6 26000 65*80 21.6 12.7 lgr075m6c263md80 29000 35*131 16.9 13.8 lgr075m5b293mad1 30000 50*116 13.9 15.8 lgr075m5b303mcb6 33000 35*141 15.2 15.1 lgr075m5b333mae1 34000 50*131 12.8 17.1 lgr075m5b343mcd1 34000 65*90 17.8 14.8 lgr075m6c343md90 39000 50*141 12.0 18.3 lgr075m5b393mce1 40000 76*80 18.0 15.6 lgr075m6c403me80 42000 65*106 15.1 16.7 lgr075m6c423mdb6 49000 65*116 13.5 18.4 lgr075m6c493mdb6 51000 76*90 14.4 18.3 lgr075m6c513me90 57000 65*131 12.0 20.2 lgr075m6c573mdd1 64000 65*141 11.2 21.5 lgr075m6c643mde1 74000 76*116 11.8 23.2 lgr075m6c743meb6 85000 76*131 10.4 24.1 lgr075m6c853med1 85000 89*90 11.8 23.2 lgr075m6c853mf90 96000 76*141 9.4 26.2 lgr075m6c963mee1 100000 76*146 8.9 27.2 lgr075m6c104mee6 100000 89*116 10.7 25.3 lgr075m6c104mfb6 120000 89*131 9.4 27.8 lgr075m6c124mfd1 130000 89*141 8.4 30.2 lgr075m6c134mfe1 140000 76*192 7.7 32.1 lgr075m6c144mek2 160000 76*146 6.8 35.1 lgr075m6c164mee6 190000 89*192 6.9 36.8 lgr075m6c194mfk2 220000 89*217 6.2 40.2 lgr075m6c224mfn7 200v 250sv 540 35*40 206.0 2.3 lgr200m5b540ma40 770 35*55 140.0 3.0 lgr200m5b770ma55 970 35*65 101.0 3.9 lgr200m5b970ma65 1400 35*80 78.5 4.6 lgr200m5b142ma80 1500 35*55 79.1 4.7 lgr200m5b152ma55 1600 50*55 82.0 5.0 lgr200m5b162mc55 1700 35*90 63.9 5.4 lgr200m5b172ma90 2100 35*106 51.7 6.3 lgr200m5b212maa6 2200 50*65 61.0 6.2 lgr200m5b222mc65 2400 35*80 48.4 6.9 lgr200m5b242ma80 2500 35*116 43.2 7.2 lgr200m5b252mab6 2900 35*131 37.8 8.0 lgr200m5b292mad1 3100 50*80 46.1 7.6 lgr200m5b312mc80 3300 35*141 33.4 8.9 lgr200m5b332mae1 3500 65*65 42.2 8.6 lgr200m6c352md65 3800 35*106 31.3 9.4 lgr200m5b382maa6 4000 50*90 36.2 9.0 lgr200m5b402mc90 4500 35*116 26.8 10.6 lgr200m5b452mab6 4900 50*106 28.5 10.6 lgr200m5b492mca6 5200 35*131 23.5 11.7 lgr200m5b522mad1 5800 50*116 24.4 12.0 lgr200m5b582mcb6 5900 35*141 21.0 12.8 lgr200m5b592mae1 6200 65*90 22.3 13.2 lgr200m6c622md90 6700 50*131 21.7 13.2 lgr200m5b672mcd1 7600 50*141 19.6 14.3 lgr200m5b762mce1 9000 65*116 17.3 16.2 lgr200m6c902mdb6 9800 76*90 23.7 14.3 lgr200m6c982me90 10000 65*131 15.8 17.6 lgr200m6c103mdd1 12000 76*106 19.7 16.3 lgr200m6c123mea6 14000 76*116 16.9 18.3 lgr200m6c143meb6 15000 89*106 17.1 19.3 lgr200m6c153mfa6 16000 76*131 14.8 20.2 lgr200m6c163med1 18000 76*141 13.3 22.0 lgr200m6c183mee1 19000 76*146 15.3 20.7 lgr200m6c193mee6 20000 89*116 12.7 23.3 lgr200m6c203mfb6 21000 89*131 13.4 23.3 lgr200m6c213mfd1 24000 89*141 12.0 25.3 lgr200m6c243mfe1 25000 89*146 11.5 26.3 lgr200m6c253mfe6 26000 76*192 11.7 26.4 lgr200m6c263mek2 31000 76*217 9.6 29.6 lgr200m6c313men7 35000 89*192 9.3 32.1 lgr200m6c353mfk2 40000 89*217 7.9 35.5 lgr200m6c403mfn7 250v 300sv 380 35*40 260 2.0 lgr250m5b380ma40 680 35*55 156 2.9 lgr250m5b680ma55 830 35*65 119 3.5 lgr250m5b830ma65 1100 35*80 87.5 4.4 lgr250m5b112ma80 1200 50*55 94.6 4.6 lgr250m5b122mc55 1300 35*65 82.8 4.9 lgr250m5b132ma65 1400 35*90 69.5 5.2 lgr250m5b142ma90 1700 50*65 65.7 6.0 lgr250m5b172mc65 1800 35*80 61.1 6.1 lgr250m5b182ma80 2000 35*116 51.5 6.6 lgr250m5b202mab6 2300 35*146 44.1 7.4 lgr250m5b232mae6 2400 50*80 46.2 7.6 lgr250m5b242mc80 2600 35*141 38.4 8.3 lgr250m5b262mae1 2800 35*106 40.4 8.3 lgr250m5b282maa6 3100 50*90 38.1 8.8 lgr250m5b312mc90 3300 35*116 34.7 9.3 lgr250m5b332mab6 3700 65*80 32.0 10.5 lgr250m6c372md80 3800 35*131 30.5 10.3 lgr250m5b382mad1 4300 35*141 27.3 11.2 lgr250m5b432mae1 4500 50*116 26.9 11.4 lgr250m5b452mcb6 4700 65*90 25.0 12.4 lgr250m6c472md90 5200 50*131 23.6 12.6 lgr250m5b522mcd1 5600 76*80 27.6 12.6 lgr250m6c562me80 5800 65*106 20.7 14.3 lgr250m6c582mda6 5900 50*141 21.0 13.8 lgr250m5b592mce1 6900 65*116 17.7 16.1 lgr250m6c692mdb6 7200 76*90 21.6 15.0 lgr250m6c722me90 7900 65*131 15.5 17.7 lgr250m6c792mdd1 8800 76*106 17.6 17.3 lgr250m6c882mea6 9000 65*141 13.8 19.4 lgr250m6c902mde1 10000 76*116 16.3 18.6 lgr250m6c103meb6 11000 89*106 19.5 18.1 lgr250m6c113mfa6 12000 76*131 14.3 20.6 lgr250m6c123med1 13000 89*116 17.2 19.9 lgr250m6c133mfb6 14000 76*141 12.0 23.2 lgr250m6c143mee1 15000 76*146 11.5 23.9 lgr250m6c153mee6 17000 89*141 13.2 24.2 lgr250m6c173mfe1 18000 89*146 12.8 24.8 lgr250m6c183mfe6 21000 76*192 9.6 30.9 lgr250m6c213mek2 24000 76*217 7.0 34.6 lgr250m6c243men7 25000 89*192 10.5 30.0 lgr250m6c253mfk2 29000 89*217 9.2 33.0 lgr250m6c293mfn7 300v 350sv 1600 35*116 77.4 5.4 lgr300m5b162mab6 1800 35*131 65.7 6.1 lgr300m5b182mad1 1900 50*80 71.1 6.1 lgr300m5b192mc80 2000 35*14 60.3 6.6 lgr300m5b202mae1 2200 35*106 56.7 7.0 lgr300m5b242maa6 2400 50*90 55.5 7.3 lgr300m5b242mc90 2600 35*116 48.5 7.9 lgr300m5b262mab6 2900 50*106 45.7 8.4 lgr300m5b292mca6 2900 65*80 46.5 8.7 lgr300m6c292md80 3000 35*131 42.5 8.7 lgr300m5b302mad1 3400 35*141 37.9 9.5 lgr300m5b342mae1 3500 50*116 38.9 9.5 lgr300m5b352mcb6 3700 65*90 38.1 10.1 lgr300m6c372md90 4000 50*131 34.0 10.5 lgr300m5b402mcd1 4100 76*80 42.8 10.0 lgr300m6c412me80 4500 65*106 29.9 11.9 lgr300m6c452mda6 5200 76*90 34.0 11.9 lgr300m6c522me90 5300 65*116 25.5 13.4 lgr300m6c532mdb6 6100 65*131 22.2 14.8 lgr300m6c612mdd1 6400 76*106 26.2 14.2 lgr300m6c642mea6 6900 65*141 19.8 16.2 lgr300m6c692mde1 7500 76*116 23.6 15.5 lgr300m6c752meb6 8700 76*131 20.5 17.2 lgr300m6c872med1 8900 89*106 21.0 17.4 lgr300m6c892mfa6 9800 89*141 18.0 18.9 lgr300m6c982mfe1 10000 76*146 17.0 19.7 lgr300m6c103mee6 12000 89*131 16.0 21.3 lgr300m6c123mfd1 13000 89*141 14.3 23.2 lgr300m6c133mfe1 14000 89*146 13.5 24.2 lgr300m6c143mfe6 15000 76*192 13.2 24.9 lgr300m6c153mek2 17000 76*217 10.8 27.9 lgr300m6c173men7 19000 89*192 11.0 29.5 lgr300m6c193mfk2 22000 89*217 9.3 32.6 lgr300m6c223mfn7 350v 400sv 200 35*40 605.0 1.3 lgr350m5b200ma40 320 35*55 379.0 1.8 lgr350m5b320ma55 470 35*65 253.0 2.4 lgr350m5b470ma65 630 35*80 190.0 3.0 lgr350m5b630ma80 720 35*55 177.30 3.1 lgr350m5b720ma55 770 35*65 162.0 3.5 lgr350m5b770ma65 790 35*90 153.0 3.5 lgr350m5b790ma90 950 35*106 127.0 4.0 lgr350m5b950maa6 970 50*65 132.0 4.2 lgr350m5b970mc65 990 35*90 125.0 4.3 lgr350m5b990ma90 1100 35*116 110.0 4.5 lgr350m5b112mab6 1300 35*131 96.3 5.0 lgr350m5b132mad1 1400 35*141 85.9 5.5 lgr350m5b142mae1 1500 65*65 86.9 6.0 lgr350m6c152md65 1600 35*106 79.9 5.9 lgr350m5b162maa6 1800 35*116 67.8 6.6 lgr350m5b182mab6 2000 50*106 65.1 7.0 lgr350m5b202mca6 2100 35*131 59.1 7.4 lgr350m5b212mad1 2200 65*80 61.0 7.6 lgr350m6c222md80 2300 50*116 55.4 8.0 lgr350m5b232mcb6 2400 35*141 52.4 8.1 lgr350m5b242mae1 2700 50*131 48.3 8.8 lgr350m5b272mcd1 2900 76*80 54.0 9.0 lgr350m6c292me80 3100 50*141 42.8 9.7 lgr350m5b312mce1 3300 65*106 39.9 10.3 lgr350m6c332mda6 3700 76*90 41.7 10.8 lgr350m6c372me90 3900 65*116 34.0 11.6 lgr350m6c392mdb6 4500 65*131 29.6 12.8 lgr350m6c452mdd1 4600 76*106 34.7 12.3 lgr350m6c462mea6 5100 65*141 26.2 14.1 lgr350m6c512mde1 5400 76*116 29.6 13.9 lgr350m6c542meb6 6200 76*131 25.8 15.3 lgr350m6c622med1 6400 89*106 29.9 14.6 lgr350m6c642mfa6 7000 76*141 22.9 16.7 lgr350m6c702mee1 7500 89*116 25.7 16.3 lgr350m6c752mfb6 8700 89*131 22.5 18.0 lgr350m6c872mfd1 9800 89*141 20.0 19.6 lgr350m6c982mfe1 10000 76*192 17.1 21.8 lgr350m6c103mek2 10000 89*146 18.9 20.4 lgr350m6c103mfe6 12000 76*217 14.2 24.3 lgr350m6c123men7 15000 89*192 14.9 25.4 lgr350m6c153mfk2 17000 89*217 12.4 28.3 lgr350m6c173mfn7 400v 450sv 160 35*40 652.0 1.3 lgr400m5b160ma40 250 35*55 408.0 1.8 lgr400m5b250ma55 380 35*65 273.0 2.3 lgr400m5b380ma65 500 35*80 205.0 2.9 lgr400m5b500ma80 570 35*55 189.0 3.0 lgr400m5b570ma55 610 35*65 174.0 3.4 lgr400m5b610ma65 630 35*90 164.0 3.4 lgr400m5b630ma90 750 35*106 137.0 3.9 lgr400m5b750maa6 780 50*55 142.0 4.1 lgr400m5b780mc55 790 35*65 134.0 4.1 lgr400m5b790ma65 880 35*116 118.0 4.4 lgr400m5b880mab6 1000 35*131 104 4.9 lgr400m5b102mad1 1100 35*141 92.4 5.3 lgr400m5b112mae1 1200 35*106 85.5 5.7 lgr400m5b122maa6 1300 50*90 85.0 5.9 lgr400m5b132mc90 1500 35*116 72.9 6.4 lgr400m5b152mab6 1600 50*106 69.8 6.8 lgr400m5b162mca6 1700 35*131 63.4 7.1 lgr400m5b172mad1 1800 65*80 65.3 7.3 lgr400m6c182md80 1900 35*141 56.2 7.8 lgr400m5b192mae1 2000 50*116 59.3 7.7 lgr400m5b202mcb6 2100 50*131 51.7 8.5 lgr400m5b212mcd1 2200 65*90 52.0 8.6 lgr400m6c222md90 2300 76*80 57.5 8.8 lgr400m6c232me80 2400 50*141 45.9 9.3 lgr400m5b242mce1 2600 65*106 42.8 9.9 lgr400m6c262mda6 3000 76*90 44.9 10.4 lgr400m6c302me90 3100 65*116 35.6 11.3 lgr400m6c312mdb6 3500 65*131 31.7 12.4 lgr400m6c352mdd1 3600 76*106 37.0 11.9 lgr400m6c362mea6 4000 65*141 31.5 12.8 lgr400m6c402mde1 4300 76*116 28.1 14.2 lgr400m6c432meb6 4900 76*131 27.4 14.8 lgr400m6c492med1 5100 89*106 31.9 14.1 lgr400m6c512mfe1 5600 76*141 24.4 16.2 lgr400m6c562mee1 5900 76*146 23.1 16.9 lgr400m6c592mee6 6000 89*116 27.4 15.8 lgr400m6c602mfb6 6900 89*131 23.9 17.5 lgr400m6c692mfd1 7800 89*141 21.2 19.0 lgr400m6c782mfe1 8200 76*192 18.2 21.2 lgr400m6c822mek2 8300 89*146 20.1 19.8 lgr400m6c832mfe6 9500 76*217 15.1 23.6 lgr400m6c952men7 11000 89*192 15.8 24.7 lgr400m6c113mfk2 13000 89*217 13.1 27.5 lgr400m6c133mfn7 450v 500sv 140 35*40 797.0 1.1 lgr451m5b140ma40 220 35*55 438.0 1.7 lgr451m5b220ma55 330 35*65 337.0 2.1 lgr451m5b330ma65 420 35*55 264.0 2.6 lgr451m5b420ma55 440 35*80 253.0 2.6 lgr451m5b440ma80 520 35*55 213.0 3.1 lgr451m5b520ma55 550 35*90 203.0 3.1 lgr451m5b550ma90 600 50*55 228.0 3.0 lgr451m5b600mc55 660 35*106 169.0 3.5 lgr451m5b660maa6 670 35*80 165.0 3.7 lgr451m5b670ma80 680 50*65 178.0 3.6 lgr451m5b680mc65 760 35*116 146.0 3.9 lgr451m5b760mab6 870 35*131 128.0 4.4 lgr451m5b870mad1 980 35*141 114.0 4.8 lgr451m5b980mae1 1000 35*106 107.0 5.1 lgr451m5b102mca6 1100 50*90 109.0 5.2 lgr451m5b112mc90 1200 65*65 116.0 5.2 lgr451m6c122md65 1300 35*116 91.1 5.7 lgr451m5b132mab6 1400 50*106 89.5 6.0 lgr451m5b142mca6 1500 65*80 81.1 6.6 lgr451m6c152md80 1600 35*141 70.2 7.0 lgr451m5b162mae1 1700 50*116 76.0 6.8 lgr451m5b172mcb6 1900 50*130 66.1 7.5 lgr451m5b192mcd0 2200 76*80 63.8 8.3 lgr451m6c222me80 2400 65*106 54.7 8.8 lgr451m6c242mda6 2700 76*90 49.8 9.9 lgr451m6c272me90 2800 65*116 46.4 9.9 lgr451m6c282mdb6 3200 65*131 40.4 11.0 lgr451m6c322mdd1 3300 76*106 38.2 11.8 lgr451m6c332mea6 3600 65*141 35.4 12.1 lgr451m6c362mde1 3900 76*116 35.7 12.6 lgr451m6c392meb6 4500 76*131 30.9 14.0 lgr451m6c452med1 4600 89*106 30.3 14.5 lgr451m6c462mfa6 5100 76*141 27.4 15.3 lgr451m6c512mee1 5400 76*146 26.0 15.9 lgr451m6c542mee6 5400 89*116 25.7 16.3 lgr451m6c542mfb6 6300 89*131 22.4 18.0 lgr451m6c632mfd1 7100 89*141 19.9 19.7 lgr451m6c712mfe1 7500 89*146 18.8 20.5 lgr451m6c752mfe6 8200 76*192 20.3 20.0 lgr451m6c822mek2 8700 76*217 16.8 22.4 lgr451m6c872men7 10000 89*192 15.1 25.2 lgr451m6c103mfk2 11000 89*217 12.7 28.0 lgr451m6c113mfn7

500v 550sv 100 35*40 1224.0 0.9 lgr500m5b100ma40 150 35*55 722.0 1.3 lgr500m5b150ma55 220 35*65 546.0 1.7 lgr500m5b220ma65 260 35*55 498.0 1.9 lgr500m5b260ma55 300 35*80 410.0 2.3 lgr500m5b300ma80 330 50*55 393.0 2.4 lgr500m5b330mc55 370 35*80 347.0 2.4 lgr500m5b370ma80 380 35*90 328.0 2.7 lgr500m5b380ma90 460 35*106 293.0 2.9 lgr500m5b460maa6 480 50*65 274.0 2.9 lgr500m5b480mc65 480 35*80 265.0 2.9 lgr500m5b480ma80 530 35*116 261.0 2.9 lgr500m5b530mab6 610 35*131 231.0 3.3 lgr500m5b610mad1 620 35*90 202.0 3.5 lgr500m5b620ma90 650 50*80 200.0 3.7 lgr500m5b650mc80 690 35*141 195.0 3.7 lgr500m5b690mae1 760 35*106 169.0 4.0 lgr500m5b760maa6 770 65*65 171.0 4.3 lgr500m6c770md65 820 50*90 156.0 4.4 lgr500m5b820mc90 890 35*116 143.0 4.6 lgr500m5b890mab6 960 50*106 136.0 4.9 lgr500m5b960mca6 1000 35*131 125.0 5.1 lgr500m5b102mad1 1100 50*116 115.0 5.5 lgr500m5b112mcb6 1100 65*106 122.0 5.4 lgr500m6c112mda6 1200 35*141 110.0 5.6 lgr500m5b122mae1 1300 50*131 100.0 6.1 lgr500m5b132mcd1 1400 65*90 95.1 6.4 lgr500m6c142md65 1500 50*141 88.9 6.7 lgr500m5b152mce1 1600 76*80 86.4 7.1 lgr500m6c162me80 1800 65*106 78.1 7.4 lgr500m6c182mda6 2000 65*116 66.3 8.3 lgr500m6c202mdb6 2100 76*90 67.4 8.5 lgr500m6c212me90 2200 65*131 61.1 8.9 lgr500m6c222mdd1 2400 65*141 54.7 9.7 lgr500m6c242mde1 2400 76*106 55.4 9.8 lgr500m6c242mea6 2800 76*116 48.1 10.9 lgr500m6c282meb6 3300 76*131 43.1 11.8 lgr500m6c332med1 3400 89*106 40.1 12.6 lgr500m6c342mfa6 3700 76*141 37.5 13.1 lgr500m6c372mee1 3900 76*146 35.5 13.6 lgr500m6c392mee6 4000 89*116 34.1 14.2 lgr500m6c402mfb6 4700 89*131 30.0 15.6 lgr500m6c472mfd1 5200 89*141 28.0 16.6 lgr500m6c522mfe1 5400 76*192 27.9 17.1 lgr500m6c542mek2 5600 89*146 26.0 17.4 lgr500m6c562mfe6 6300 76*217 23.1 19.1 lgr500m6c632men7 7600 89*192 20.5 21.8 lgr500m6c762mfk2 8800 89*217 16.7 24.4 lgr500m6c882mfn7 550v 600sv 1400 65*106 170.5 4.9 lgr550m6c142mda6 1600 65*116 132.6 5.9 lgr550m6c162mdb6 1900 65*130 1117.7 6.8 lgr550m6c192mdd0 2200 76*106 90.4 7.8 lgr550m6c222mea6 2300 65*141 86.5 7.8 lgr550m6c232mde1 2500 76*116 79.6 8.4 lgr550m6c252meb6 2900 76*131 64.0 9.7 lgr550m6c292med1 3300 76*141 54.6 10.9 lgr550m6c332mee1 3700 76*146 50.2 12.24 lgr550m6c372mee6 5100 76*192 36.4 16.22 lgr550m6c512mek2

in addition, ø 100 products are tentative specifications, please confirm the time of ordering

◆   rted ripple current muiers
the ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following。
●   frequency multipliers

	frequency（hz）	120	300	1k	3k
	coefficient	1.0	1.1	1.3	1.4

note : the endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with every 5 to 10℃ rise. when long life performance is required in actual use, the rms ripple current has to be reduced. also, for the lws series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. for the details, please contact representative of capsun
