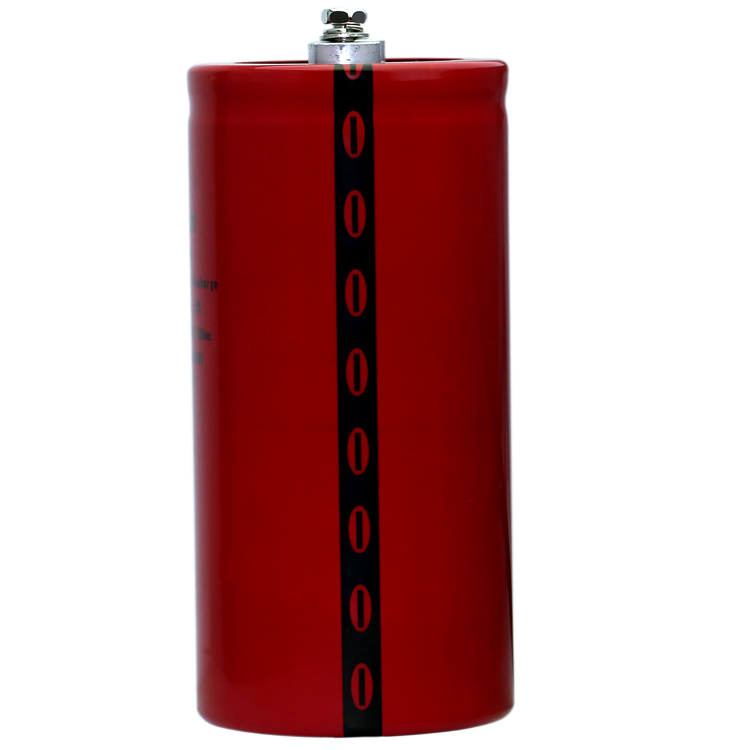

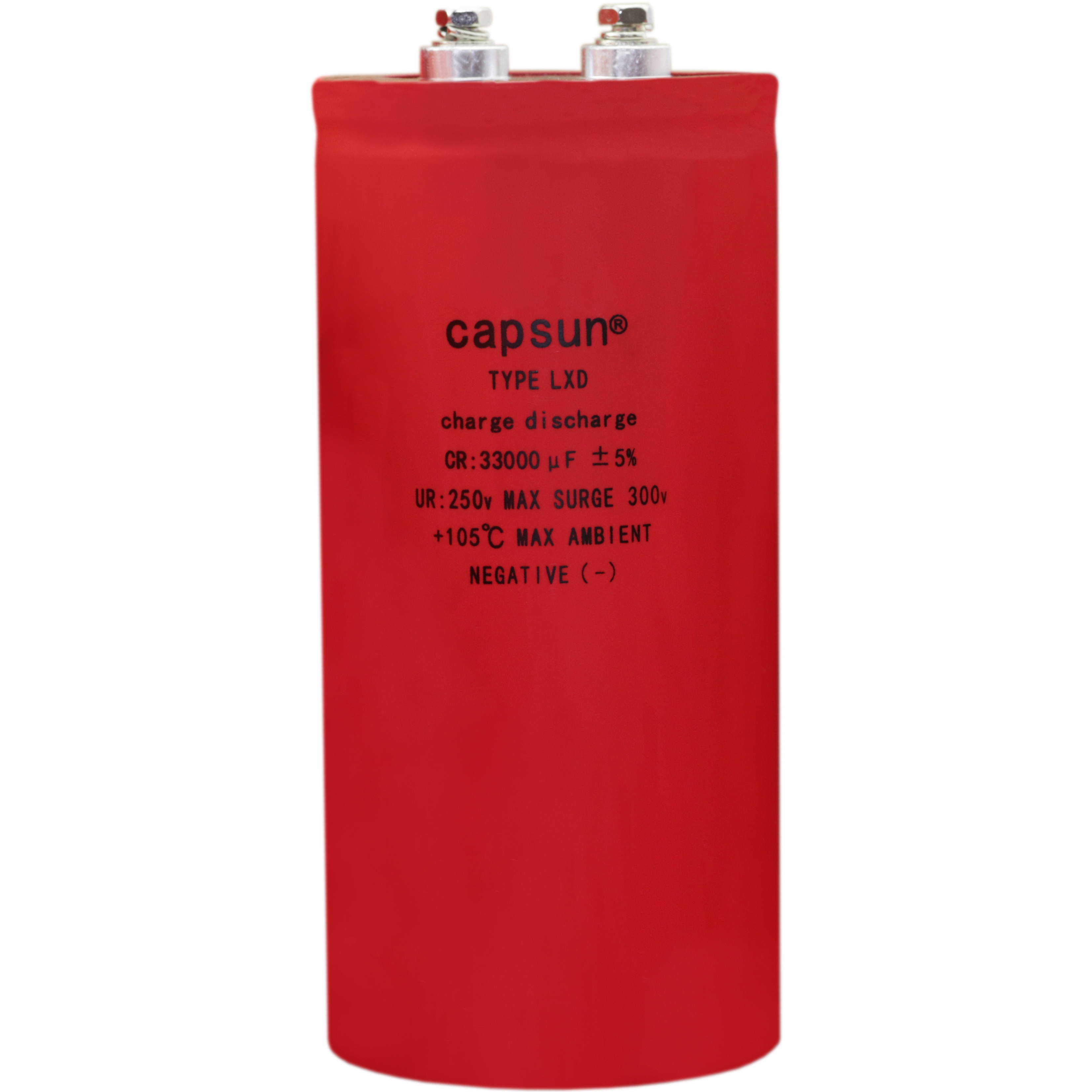

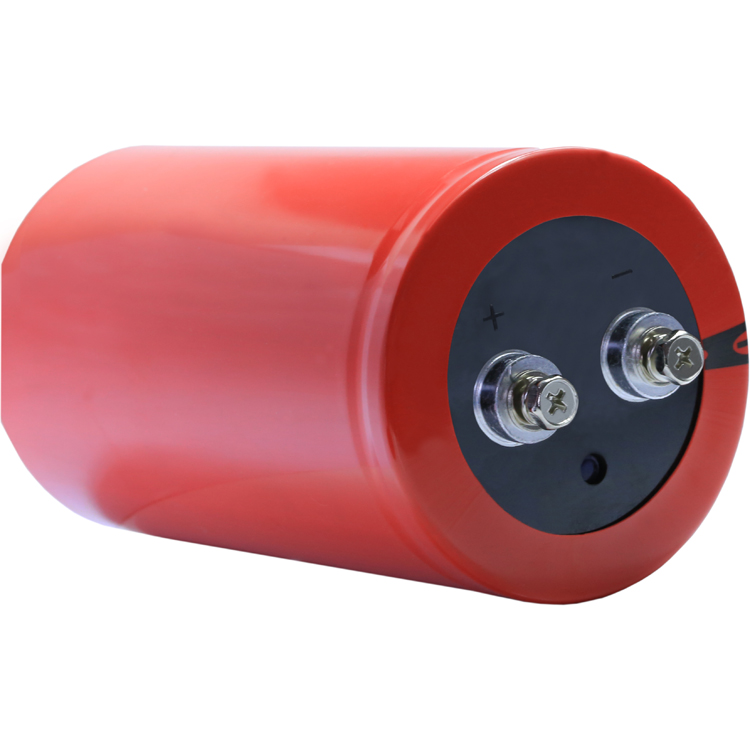

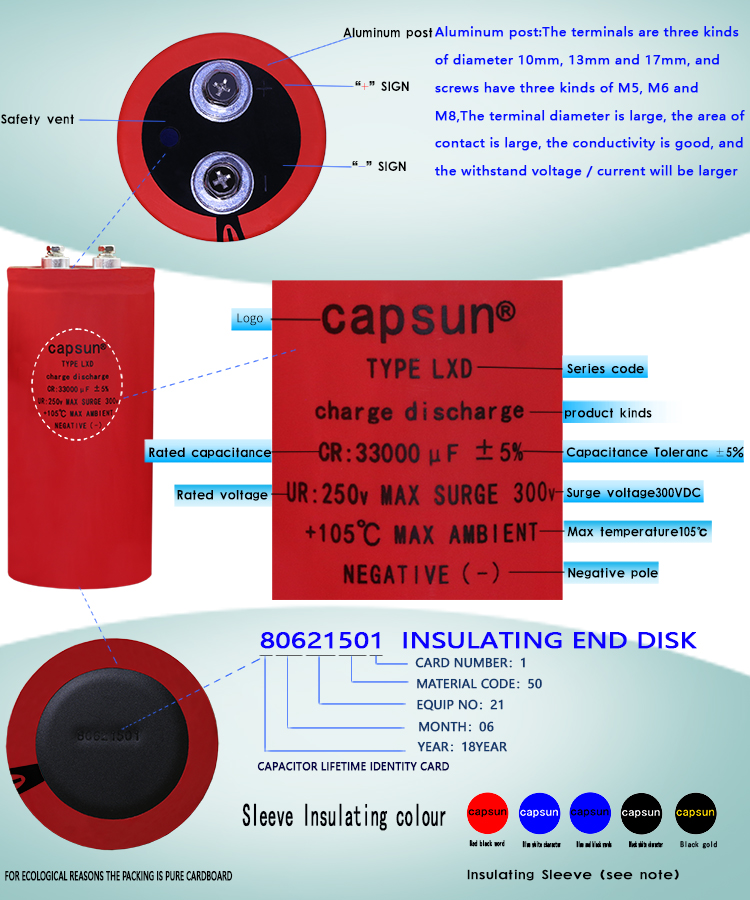

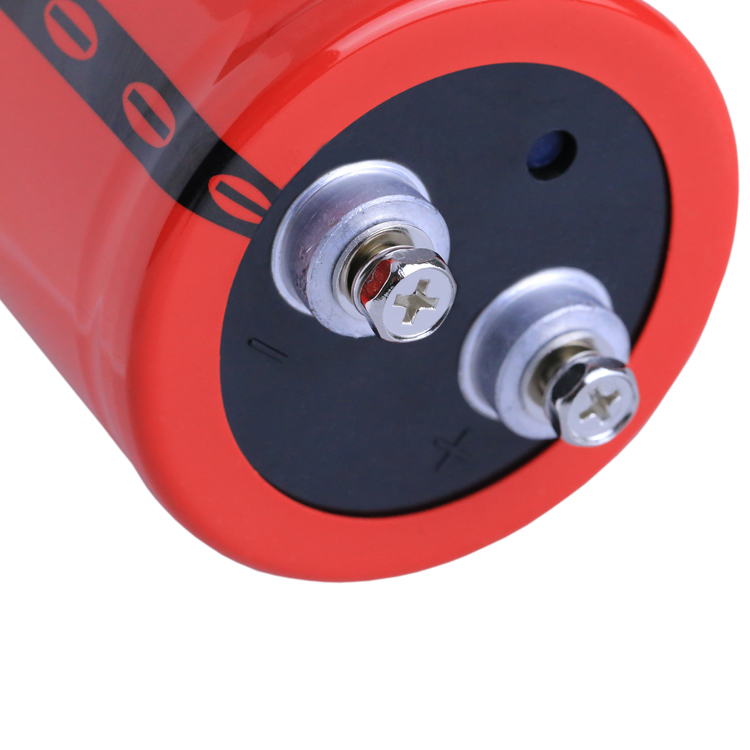

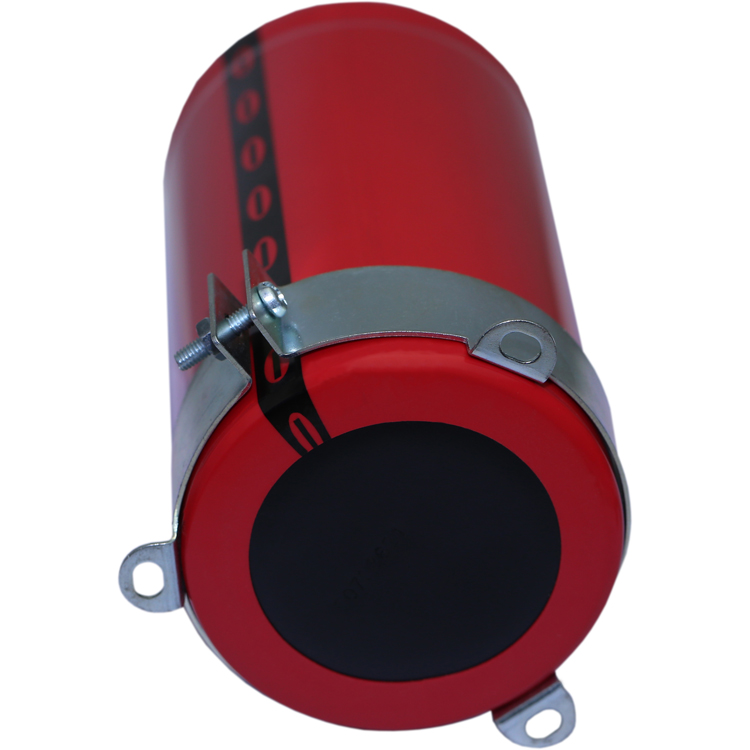

super high speed charge discharge aluminum electrolytic capacitor-足球看盘软件
series：
sort：
category：
rated voltage range（vdc）：

download

working cap temperature. standard life(hours)
detailed
specification

105℃ 6000 hours，life or over 5 millions time

●for frequently change of regenerative voltage fromac servo amplifier and inverter control
●   after an application of charge-discharge voltage for 60million times
●   integrated foreign capacitor design philosophy ,panasonic branched ammoniasalt and the surface of the nanometer material of completing agent on theelectrolyte, the overall parameters of more than similar foreign capacitor
●suitabe for capacitor discharge spot welder ac spot welder series automating wire mesh welding
   ◆specific ations

items

characteristics

category temperature range

-40~ 105℃

rated voltage range

350~450_vdc

capacitance tolerance

± 20%（m） at 20℃/120hz

leakage current

i=0.02cv or 5ma,whichever is smaller
i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)

dissipation factor（tanδ）

0.15max at 20℃/120hz

low temperature characteristics

rated voltage(vdc)

350to450v

500to550v

at 20℃/120hz

c（-25℃）/c（ 20℃）

≥0.7

≥0.6

insulation resistance

when measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case by using an insulation resistance meter of 500vdc, the insulation resistance shall not be less than 100mω

insulation withstanding voltage

when a voltage of 2,000vac is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering the case, there shall not be electrical damage

endurance of charge-discharge
behavior

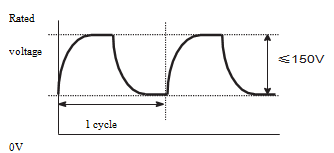

after an application of charge-discharge voltage for 60million times(charge-discharge voltage difference(△∨)=rated voltage x 0.5,cycle 3hz)capacitors shell meet the characteristics requirement listed at right at(15℃～35℃)
capacitance change	≤±20% of the initial value
d.f. (tanδ)	≤300% of the initial specified value
leakage current	≤the initial specified value
appearance	there shell be found to remarkable abnormality on the capacitor
frequency	3hz
number of cycles	6.000million times

shelf life

the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1

capacitance change

≤±20% of the initial value

of jis c 5101-4.

d.f. (tanδ)

≤300% of the initial specified value

leakage current

≤the initial specified value

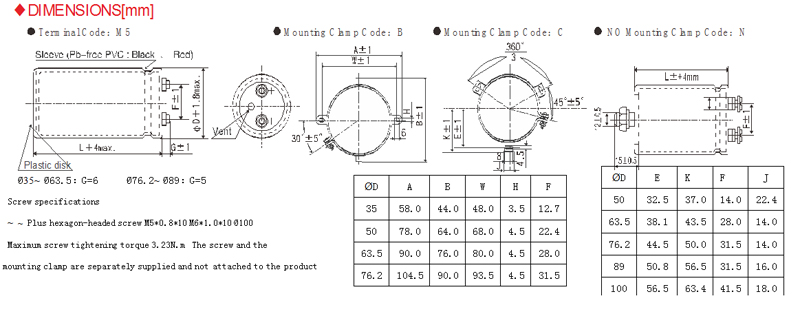

standard ratings

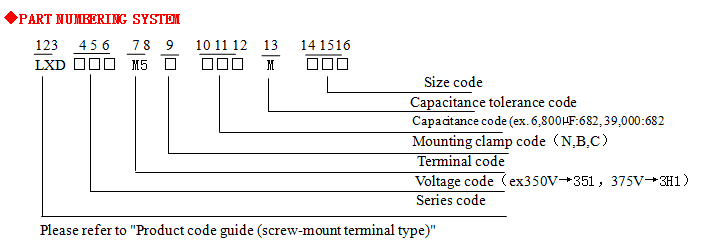

w.v	cap	case sized x l	tanδ120hz,20℃	rated ripple current	part no.
[v]	[μf]	[mm]	[mω]	（ams/85℃,120hz）	part no.
350v	1200	50*60	4.7	1.56	lxd351m5c122mc60
	1500	50*70	5.5	1.83	lxd351m5c152mc70
	1800	50*80	6.4	2.13	lxd351m5c182mc80
	2200	50*96	7.6	2.53	lxd351m5c222mc96
	2700	50*105	8.8	2.94	lxd351m5c272mca5
	2700	50*115	9.2	3.06	lxd351m5c272mcb5
	3300	50*130	10.8	3.58	lxd351m5c332mcd0
	4700	63.5*115	13.2	4.61	lxd351m5c472mdb5
	5600	63.5*130	15.2	5.3	lxd351m5c562mdd0
	5600	76.2*105	15.2	5.36	lxd351m5c562mea5
	6800	63.5*155	18.1	6.32	lxd351m5c682mdf5
	8200	63.5*170	20.7	7.25	lxd351m5c822mdh0
	8200	76.2*130	20.2	6.57	lxd351m5c822med0
	10000	76.2*155	24.2	8.47	ldx351m5c103mef5
	10000	89*115	23.1	8.1	lxd351m5c103mfb5
	12000	76.2*170	27.6	9.66	lxd351m5c123meh0
	12000	89*130	26.6	9.33	lxd351m5c123mfd0
	15000	89*155	32.1	11.2	lxd351m5c153mff5
	15000	89*170	33.5	11.7	lxd351m5c153mfh0
	18000	89*190	38.5	13.5	lxd351m5c183mfk0
375v	1000	50*60	4.3	1.42	lxd3h1m5c102mc60
	1200	50*70	4.9	1.64	lxd3h1m5c122mc70
	1500	50*80	5.8	1.94	lxd3h1m5c152mc80
	2200	50*96	7.6	2.54	lxd3h1m5c222mc96
	2200	50*105	8	2.65	lxd3h1m5c222mca5
	2700	50*115	9.2	3.06	lxd3h1m5c272mcb5
	3300	50*130	10.8	3.58	lxd3h1m5c332mcd0
	4700	63.5*115	13.2	4.61	lxd3h1m5c472mdb5
	5600	63.5*130	15.2	5.3	lxd3h1m5c562mdd0
	5600	76.2*105	15.2	5.36	lxd3h1m5c562mea5
	6800	63.5*155	18.1	6.32	lxd3h1m5c682mdf5
	6800	63.5*170	18.9	6.6	lxd3h1m5c682mdh0
	8200	76.2*130	20.2	7.09	lxd3h1m5c822med0
	8200	89*115	20.9	7.35	lxd3h1m5c822mfb5
	10000	76.2*155	24.2	8.48	lxd3h1m5c103mef5
	10000	76.2*170	25.2	8.85	lxd3h1m5c103meh0
	10000	89*130	24.3	8.54	lxd3h1m5c103mfd0
	12000	89*155	28.4	10	lxd3h1m5c123mff5
	15000	89*170	33.5	11.7	lxd3h1m5c153mfh0
	15000	89*190	35.2	12.3	lxd3h1m5c153mfk0
400v	1000	50*60	4.3	1.42	lxd401m5c102mc60
	1200	50*70	4.9	1.64	lxd401m5c122mc70
	1500	50*80	5.8	1.95	lxd401m5c152mc80
	1800	50*96	6.9	2.29	lxd401m5c182mc96
	2200	50*105	8	2.65	lxd401m5c222mca5
	2200	50*115	8.3	2.77	lxd401m5c222mcb5
	2700	50*130	9.8	3.23	lxd401m5c272mcd0
	3900	63.5*115	12	4.21	lxd401m5c392mdb5
	4700	63.5*130	13.9	4.86	lxd401m5c472mdd0
	5600	63.5*155	16.4	5.75	lxd401m5c562mdf5
	5600	63.5*170	17.1	5.99	lxd401m5c562mdh0
	5600	76.2*105	15.2	5.35	lxd401m5c562mea5
	6800	76.2*130	18.4	6.47	lxd401m5c682med0
	8200	76.2*155	21.9	7.68	lxd401m5c822mef5
	8200	76.2*170	22.8	8.02	lxd401m5c822meh0
	8200	89*115	20.9	7.35	lxd401m5c822mfb5
	10000	89*130	24.3	8.26	lxd401m5c103mfd0
	12000	89*155	28.7	10	lxd401m5c123mff5
	12000	89*170	29.9	10.5	lxd401m5c123mfh0
	15000	89*190	31.2	12.3	lxd401m5c153mfk0
420v	820	50*60	3.8	1.29	lxd421m5c821mc60
	1000	50*70	4.4	1.5	lxd421m5c102mc70
	1200	50*80	5.2	1.75	lxd421m5c122mc80
	1800	50*96	6.8	2.3	lxd421m5c182mc96
	1800	50*105	7.1	2.4	lxd421m5c182mca5
	2200	50*115	8.2	2.77	lxd421m5c222mcb5
	2700	50*130	9.6	3.25	lxd421m5c272mcd0
	3300	63.5*115	11	3.87	lxd421m5c332mdb5
	3900	63.5*130	12.7	4.44	lxd421m5c392mdd0
	4700	63.5*155	15	5.28	lxd421m5c472mdf5
	4700	76.2*105	13.9	4.92	lxd421m5c472mea5
	5600	63.5*170	17.1	6.02	lxd421m5c562mdh0
	5600	76.2*130	16.6	5.9	lxd421m5c562med0
	6800	76.2*155	19.8	7.02	lxd421m5c682mef5
	6800	89*115	19	6.73	lxd421m5c682mfb5
	8200	76.2*170	22.7	8.04	lxd421m5c822meh0
	8200	89*130	22	7.78	lxd421m5c822mfd0
	10000	89*155	26.2	9.24	lxd421m5c103mff5
	12000	89*170	29.9	10.5	lxd421m5c123mfh0
	12000	89*190	31.5	11	lxd421m5c123mfk0
450v	820	50*60	3.8	1.29	lxd421m5c821mc60
	1000	50*70	4.4	1.5	lxd451m5c102mc70
	1200	5*080	5.2	1.74	lxd451m5c122mc80
	1500	50*96	6.2	2.1	lxd451m5c152mc96
	1800	50*105	7.1	2.41	lxd451m5c182mca5
	1800	50*115	7.4	2.51	lxd451m5c182mcb5
	2200	50*130	8.7	2.93	lxd451m5c222mcd0
	3300	63.5*115	11	3.88	lxd451m5c332mdb5
	3900	63.5*130	12.7	4.44	lxd451m5c392mdd0
	3900	76.2*105	13.2	4.49	lxd451m5c392mea5
	4700	63.5*155	15	5.27	lxd451m5c472mdf5
	4700	63.5*170	15.6	5.5	lxd451m5c472mdh0
	5600	76.2*130	16.6	5.88	lxd451m5c562med0
	6800	76.2*155	19.8	7.04	lxd451m5c682mef5
	6800	89*115	19	6.72	lxd451m5c682mfb5
	8200	76.2*170	22.7	7.97	lxd451m5c822meh0
	8200	89*130	22	7.72	lxd451m5c822mfd0
	10000	89*155	26.2	9.22	lxd451m5c103mff5
	10000	89*170	27.3	9.66	lxd451m5c103mfh0
	12000	89*190	31.5	11.1	lxd451m5c123mfk0

◆rted ripple current muiers
the ripple frequency and standard list of the specified value is not at the same time, please use the value is less than the following
● frequency multiplier

frequency（hz）	50	120	300	1k	3k
coefficient	0.8	1.0	1.1	1.3	1.4

note : the endurance of capacitors is shorted with internal heating produced by ripple current at the rate of halving the lifetime with
every 5 to 10℃ rise. when long life performance is required in actual use, the rms ripple current has to be reduced. also, for the
lhd series capacitors, using them at operating voltage less than their rated voltage can extend their lifetime. for the details, please
contact representative of capsun
