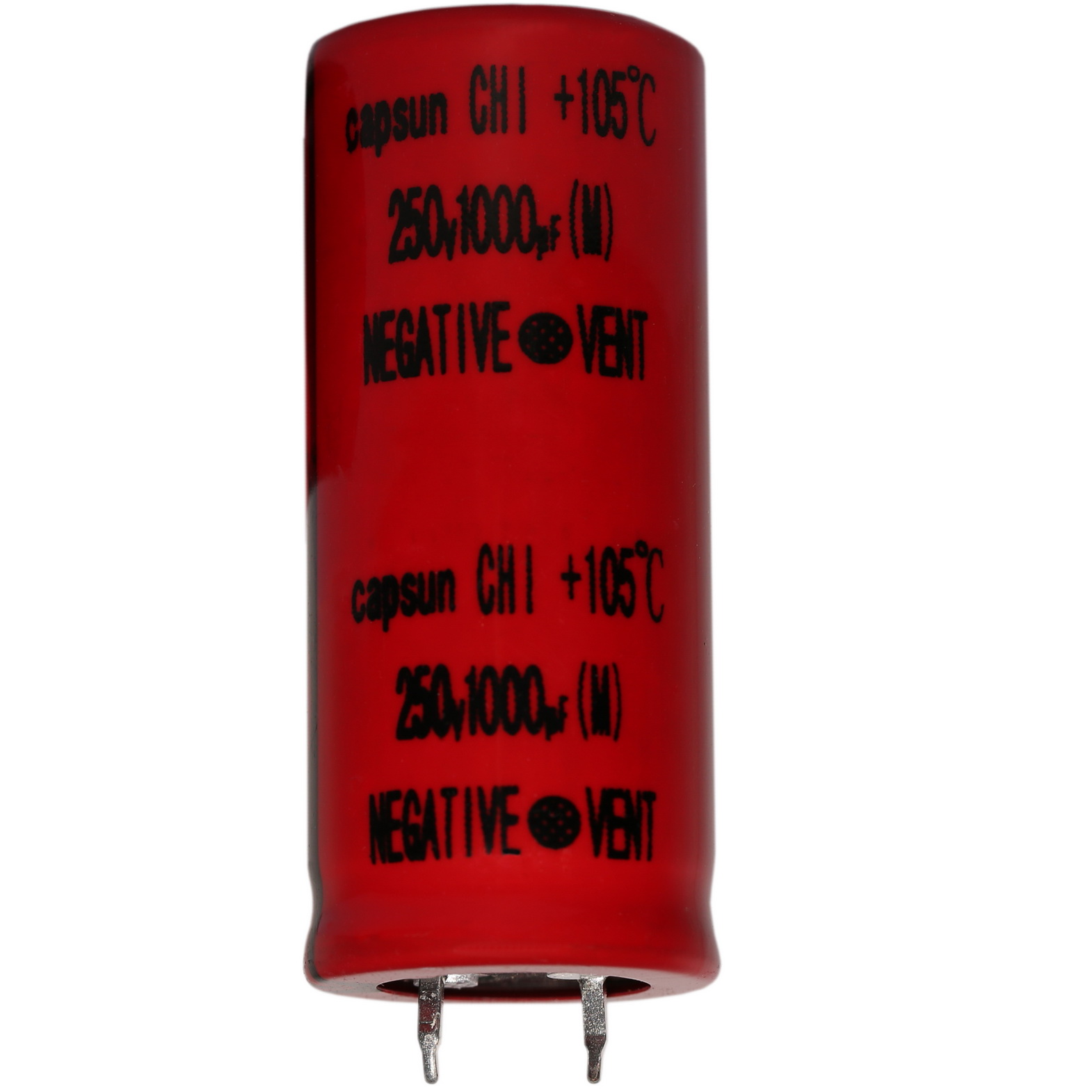

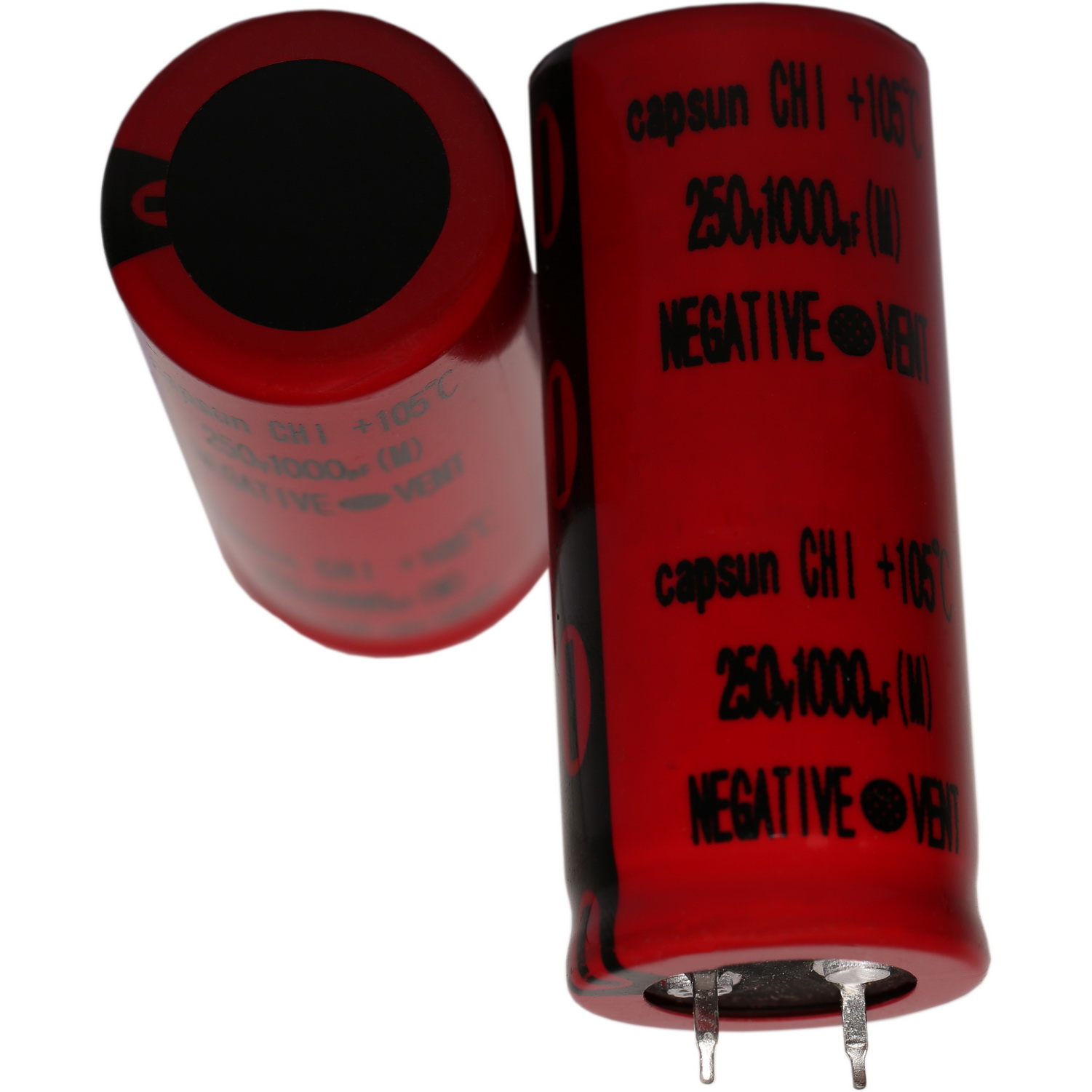

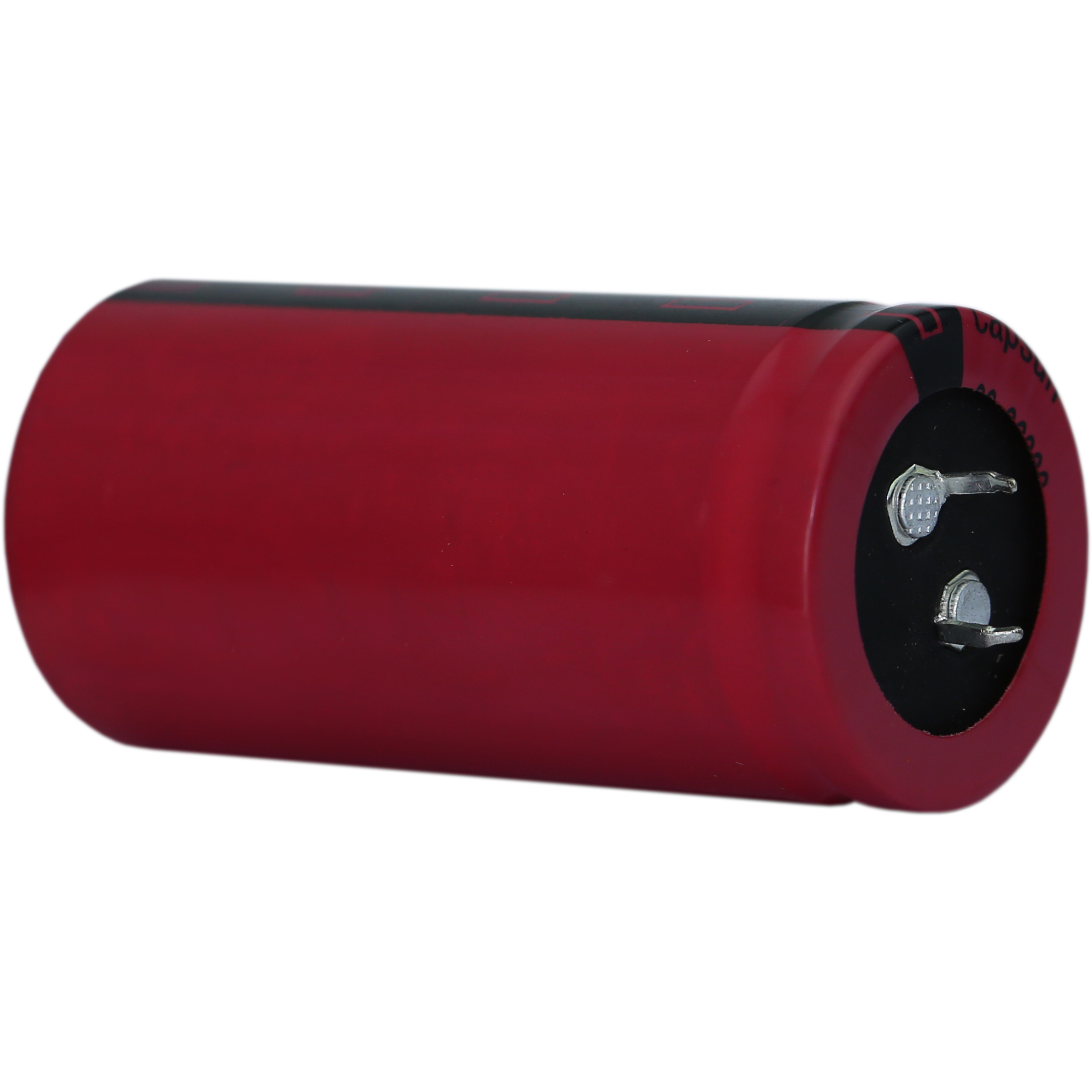

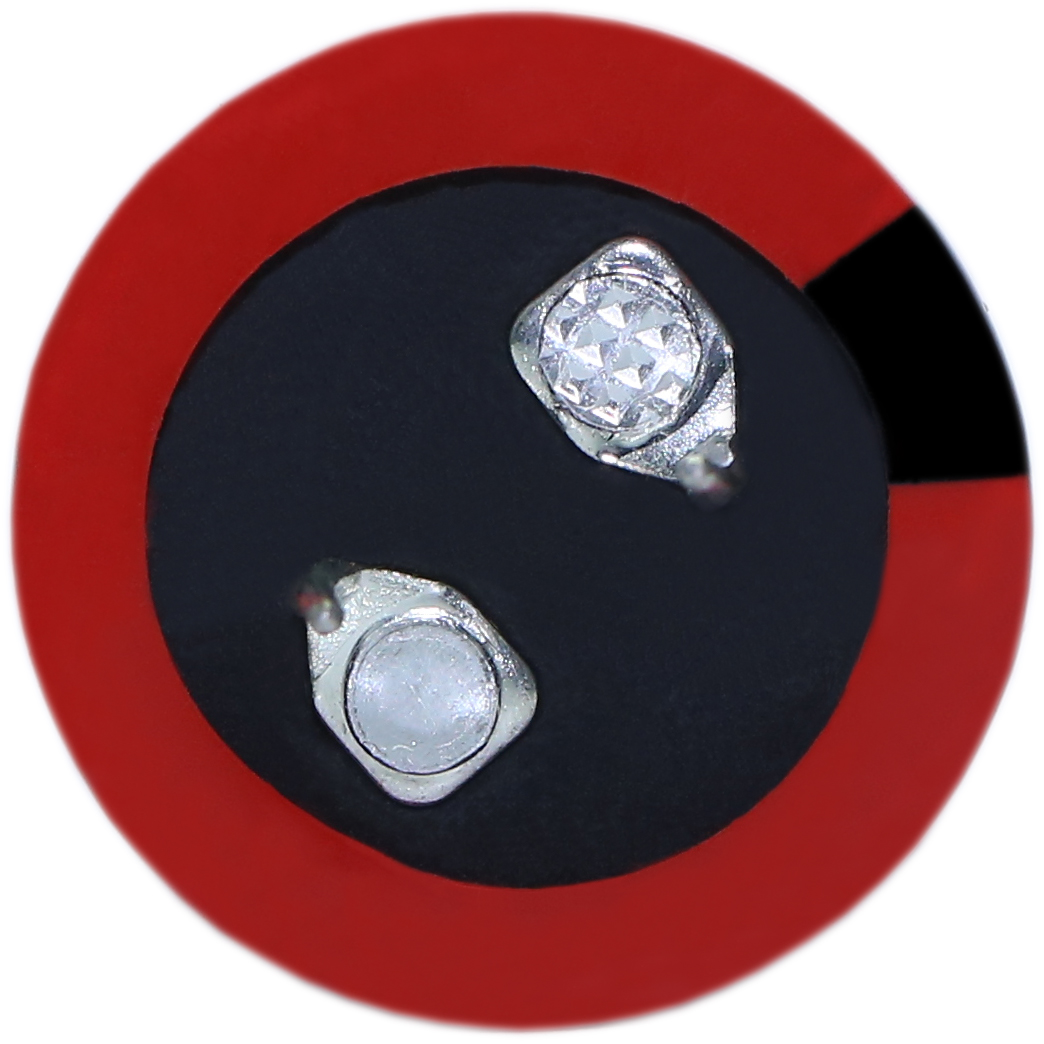

105℃ 5000hours

◆specific ations

items		characteristics
category temperature range		-25~ 105℃
rated voltage range		160~450vdc
capacitance tolerance		±20%（m）                                                           20℃、120hz
leakage current		i=0.02cv or 5ma,whichever is smaller i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（max）		rated voltage（vdc） 160v～400v 420v～450v tanδmax 0.15 0.20
low temperature characteristics		rated voltage（vdc） 160v～400v 420v～500v z(-25℃)/z( 20℃) 4 8
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours at 105℃
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value



srandrad ratings

wv [vdc]   cap [μf] case size d x l [mm] tanδ 120hz 20℃ ripple  current ams/105℃, 120hz par t no. 160v 390 22×25 0.15 1.32 chi161hzn391mp25 560 22×30 0.15 1.66 chi161hzn561mp30 560 25.4×25 0.15 1.68 chi161hzn561mq25 680 22×35 0.15 1.87 chi161hzn681mp35 680 25.4×30 0.15 1.88 chi161hzn681mq30 680 30×25 0.15 1.96 chi161hzn681mr25 820 22×40 0.15 2.09 chi161hzn821mp40 1000 22×45 0.15 2.36 chi161hzn102mp45 1000 22×50 0.15 2.41 chi161hzn102mp50 1000 25.4×35 0.15 2.38 chi161hzn102mq35 1000 30×30 0.15 2.40 chi161hzn102mr30 1000 35×25 0.15 2.55 chi161hzn102ma25 1200 25.4×40 0.15 2.66 chi161hzn122mq40 1200 25.4×45 0.15 2.71 chi161hzn122mq45 1200 30×35 0.15 2.69 chi161hzn122mr35 1200 30×40 0.15 2.77 chi161hzn122mr40 1200 35×30 0.15 2.77 chi161hzn122ma30 1500 25.4×50 0.15 3.08 chi161hzn152mq50 1500 30×45 0.15 3.08 chi161hzn152mr45 1500 35×35 0.15 3.22 chi161hzn152ma35 1800 30×50 0.15 3.53 chi161hzn182ma35 1800 35×40 0.15 3.66 chi161hzn182ma40 2200 35×45 0.15 4.14 chi161hzn222ma45 2700 35×50 0.15 4.68 chi161hzn272ma50 180v 330 22×25 0.15 1.21 chi181hzn331mp25 470 22×30 0.15 1.21 chi181hzn471mp30 470 25.4×25 0.15 1.52 chi181hzn471mq25 560 22×35 0.15 1.70 chi181hzn561mp35 560 30×25 0.15 1.78 chi181hzn561mr25 680 22×40 0.15 1.91 chi181hzn681mp40 680 25.4×30 0.15 1.88 chi181hzn681mq30 820 22×45 0.15 1.99 chi181hzn821mp45 820 25.4×35 0.15 2.16 chi181hzn821mq35 820 30×30 0.15 2.17 chi181hzn821mr30 820 35×25 0.15 2.31 chi181hzn821ma25 1000 22×50 0.15 2.25 chi181hzn102mp50 1000 25.4×40 0.15 2.43 chi181hzn102mq40 1000 25.4×45 0.15 2.47 chi181hzn102mq45 1000 30×35 0.15 2.46 chi181hzn102mr35 1200 25.4×50 0.15 2.75 chi181hzn122mq50 1200 30×40 0.15 2.77 chi181hzn122mr40 1200 35×30 0.15 2.86 chi181hzn122ma30 1500 30×45 0.15 3.17 chi181hzn152mr45 1500 30×50 0.15 3.22 chi181hzn152mr50 1500 35×35 0.15 3.22 chi181hzn152ma35 1800 35×40 0.15 3.66 chi181hzn182ma40 1800 35×45 0.15 3.74 chi181hzn182ma45 2200 35×50 0.15 4.22 chi181hzn222ma50 200v 270 22×25 0.15 1.10 chi201hzn271mp25 390 22×30 .015 1.38 chi201hzn391mp30 390 25.4×25 0.15 1.39 chi201hzn391mq25 470 22×35 0.15 1.55 chi201hzn471mp35 560 22×40 0.15 1.73 chi201hzn561mp40 560 25.4×30 0.15 1.71 chi201hzn561mq30 560 30×25 0.15 1.78 chi201hzn561mr25 680 22×45 0.15 1.81 chi201hzn681mp45 680 25.4×35 0.15 1.87 chi201hzn681mq35 680 30×30 0.15 1.98 chi201hzn681mr30 680 35×25 0.15 2.10 chi201hzn681ma25 820 22×50 0.15 2.18 chi201hzn821mp50 820 25.4×40 0.15 2.09 chi201hzn821mq40 820 30×35 0.15 2.22 chi201hzn821mr35 1000 25.4×45 0.15 2.35 chi201hzn102mq45 1000 25.4×50 0.15 2.39 chi201hzn102mq50 1000 30×40 0.15 2.53 chi201hzn102mr40 1000 35×30 0.15 2.61 chi201hzn102ma30 1200 30×45 0.15 2.84 chi201hzn122mr45 1200 30×50 0.15 2.88 chi201hzn122mr50 1200 35×35 0.15 2.88 chi201hzn122ma35 1500 35×40 0.15 3.34 chi201hzn152ma40 1800 35×45 0.15 3.74 chi201hzn182ma45 1800 35×50 0.15 3.82 chi201hzn182ma50 220v 270 22×25 0.15 1.10 chi221hzn271mp25 330 22×30 0.15 1.19 chi221hzn331mp30 390 25.4×25 0.15 1.39 chi221hzn391mq25 470 22×35 0.15 1.55 chi221hzn471mp35 470 25.4×30 0.15 1.56 chi221hzn471mq30 470 30×25 0.15 1.63 chi221hzn471mr25 560 22×40 0.15 1.73 chi221hzn561mp40 560 30×30 0.15 1.73 chi221hzn561mr30 680 22×45 0.15 1.94 chi221hzn681mp45 680 22×50 0.15 1.99 chi221hzn681mp50 680 25.4×35 0.15 1.96 chi221hzn681mq35 680 30×35 0.15 2.02 chi221hzn681mr35 680 35×25 0.15 2.10 chi221hzn681ma25 820 25.4×45 0.15 2.24 chi221hzn821mq45 820 30×40 0.15 2.29 chi221hzn821mr40 820 35×30 0.15 2.36 chi221hzn821ma30 1000 25.4×50 0.15 2.51 chi221hzn102mq50 1000 30×45 0.15 2.59 chi221hzn102mr45 1000 35×35 0.15 2.63 chi221hzn102ma35 1200 30×50 0.15 2.88 chi221hzn102mr50 1200 35×40 0.15 2.98 chi221hzn122ma40 1500 35×45 0.15 3.41 chi221hzn152ma45 1800 35×50 0.15 3.82 chi221hzn152ma50 250v 220 22×25 0.15 1.01 chi251hzn221mp25 270 22×30 0.15 1.20 chi251hzn271mp30 330 25.4×25 0.15 1.32 chi251hzn331mq25 390 22×35 0.15 1.44 chi251hzn391mp35 390 25.4×30 0.15 1.43 chi251hzn391mq30 390 30×25 0.15 1.51 chi251hzn391mr25 470 22×40 0.15 1.62 chi251hzn471mp40 560 22×45 0.15 1.80 chi251hzn561mp45 560 22×50 0.15 1.84 chi251hzn561mp50

250v 560 25.4×35 0.15 1.78 chi251hzn561mq35 560 30×30 0.15 1.83 chi251hzn561mr30 560 35×25 0.15 1.91 chi251hzn561ma25 680 25.4×40 0.15 2.00 chi251hzn681mq40 680 25.4×45 0.15 2.04 chi251hzn681mq45 680 30×35 0.15 2.06 chi251hzn681mr35 680 35×30 0.15 2.15 chi251hzn681ma30 820 25.4×50 0.15 2.28 chi251hzn821mq50 820 30×40 0.15 2.33 chi251hzn821mr40 820 30×45 0.15 2.39 chi251hzn821mr45 820 35×35 0.15 2.38 chi251hzn821ma35 1000 30×50 0.15 2.68 chi251hzn102mr50 1000 35×40 0.15 2.72 chi251hzn102ma40 1200 35×45 0.15 3.05 chi251hzn122ma45 1500 35×50 0.15 3.49 chi251hzn152ma50 315v 150 22×25 0.15 0.80 chi3b1hzn151mp25 180 22×30 0.15 0.92 chi3b1hzn181mp30 180 25.4×25 0.15 0.94 chi3b1hzn181mq25 220 22×35 0.15 1.04 chi3b1hzn221mp35 220 30×25 0.15 1.17 chi3b1hzn221mr25 270 22×40 0.15 1.18 chi3b1hzn271mp40 270 25.4×30 0.15 1.19 chi3b1hzn271mq30 330 22×25 0.15 1.33 chi3b1hzn331mp25 330 25.4×35 0.15 1.37 chi3b1hzn331mq35 330 30×30 0.15 1.40 chi3b1hzn331mr30 330 35×25 0.15 1.49 chi3b1hzn331ma25 390 22×50 0.15 1.48 chi3b1hzn391mp50 390 25.4×40 0.15 1.52 chi3b1hzn391mq40 470 25.4×45 0.15 1.70 chi3b1hzn471mq45 470 30×35 0.15 1.71 chi3b1hzn471mr35 470 35×30 0.15 1.82 chi3b1hzn471ma30 560 25.4×50 0.15 1.88 chi3b1hzn561mq50 560 30×40 0.15 1.92 chi3b1hzn561mr40 560 30×45 0.15 1.97 chi3b1hzn561mr45 560 35×35 0.15 2.00 chi3b1hzn561ma35 680 30×50 0.15 2.21 chi3b1hzn681mr50 680 35×40 0.15 2.29 chi3b1hzn681ma40 820 35×45 0.15 2.57 chi3b1hzn821ma45 1000 35×50 0.15 2.89 chi3b1hzn102ma50 350v 120 22×25 0.15 0.72 chi351hzn121mp25 150 22×30 0.15 0.84 chi351hzn151mp30 180 25.4×25 0.15 0.94 chi351hzn181mq25 220 22×35 0.15 1.04 chi351hzn221mp35 220 22×40 0.15 1.06 chi351hzn221mp40 220 25.4×30 0.15 1.07 chi351hzn221mq30 220 30×25 0.15 1.13 chi351hzn221mr25 270 22×45 0.15 1.20 chi351hzn271mp45 270 25.4×30 0.15 1.24 chi351hzn271mq30 270 30×30 0.15 1.27 chi351hzn271mr30 270 35×25 0.15 1.35 chi351hzn271ma25 330 22×50 0.15 1.36 chi351hzn331mp50

350v 330 25.4×40 0.15 1.39 chi351hzn331mq40 330 30×35 0.15 1.43 chi351hzn331mr35 390 25.4×45 0.15 1.55 chi351hzn391mq45 390 30×40 0.15 1.60 chi351hzn391mr40 390 35×30 0.15 1.66 chi351hzn391ma30 470 25.4×50 0.15 1.72 chi351hzn471mq50 470 30×45 0.15 1.81 chi351hzn471mr45 470 35×35 0.15 1.83 chi351hzn471ma35 560 30×50 0.15 2.00 chi351hzn561mr50 560 35×40 0.15 2.07 chi351hzn561ma40 680 35×45 0.15 2.34 chi351hzn681ma45 820 35×50 0.15 2.62 chi351hzn821ma50 400v 100 22×25 0.15 0.66 chi401hzn101mp25 120 22×30 0.15 0.75 chi401hzn121mp30 150 22×35 0.15 0.86 chi401hzn151mp35 150 25.4×25 0.15 0.86 chi401hzn151mq25 180 22×40 0.15 0.96 chi401hzn181mp40 180 25.4×30 0.15 0.97 chi401hzn181mq30 180 30×25 0.15 1.02 chi401hzn181mr25 220 22×45 0.15 1.09 chi401hzn221mp45 220 25.4×35 0.15 1.12 chi401hzn221mq35 220 35×25 0.15 1.22 chi401hzn221ma25 270 22×50 0.15 1.23 chi401hzn271mp50 270 25.4×40 0.15 1.26 chi401hzn271mq40 270 25.4×45 0.15 1.29 chi401hzn271mq45 270 30×30 0.15 1.27 chi401hzn271mr30 330 25.4×50 0.15 1.44 chi401hzn331mq50 330 30×35 0.15 1.43 chi401hzn331mr35 330 35×30 0.15 1.52 chi401hzn331ma30 390 30×40 0.15 1.60 chi401hzn391mr40 390 35×35 0.15 1.67 chi401hzn391ma35 470 30×45 0.15 1.81 chi401hzn471mr45 470 30×50 0.15 1.84 chi401hzn471mr50 470 35×40 0.15 1.90 chi401hzn471ma40 560 35×45 0.15 2.12 chi401hzn561ma45 680 35×50 0.15 2.39 chi401hzn681ma50 420v 100 22×25 0.20 0.66 chi421hzn101mp25 120 22×30 0.20 0.75 chi421hzn121mp30 120 25.4×25 0.20 0.77 chi421hzn121mq25 150 22×35 0.20 0.86 chi421hzn151mp35 180 22×40 0.20 0.96 chi421hzn181mp40 180 22×45 0.20 0.98 chi421hzn181mp45 180 25.4×30 0.20 0.97 chi421hzn181mq30 180 25.4×35 0.20 1.01 chi421hzn181mq35 180 30×25 0.20 1.02 chi421hzn181mr25 220 22×50 0.20 1.11 chi421hzn221mp50 220 25.4×40 0.20 1.14 chi421hzn221mq40 220 30×30 0.20 1.14 chi421hzn221mr30 220 35×25 0.20 1.22 chi421hzn221ma25 270 25.4×45 0.20 1.29 chi421hzn271mq45 270 30×35 0.20 1.30 chi421hzn271mr35

420v 270 35×30 0.20 1.38 chi421hzn271ma30 330 25.4×50 0.20 1.44 chi421hzn331mq50 330 30×40 0.20 1.48 chi421hzn331mr40 330 35×35 0.20 1.54 chi421hzn331ma35 390 30×45 0.20 1.64 chi421hzn391mr45 390 35×40 0.20 1.73 chi421hzn391ma30 470 30×50 0.20 1.84 chi421hzn471mr50 470 35×45 0.20 1.94 chi421hzn471ma45 560 35×50 0.20 2.17 chi421hzn561ma50 450v 82 22×25 0.20 0.59 chi451hzn820mp25 100 22×30 0.20 0.69 chi451hzn101mp30 100 25.4×25 0.20 0.70 chi451hzn101mq25 120 22×35 0.20 0.77 chi451hzn121mp35 150 22×40 0.20 0.88 chi451hzn151mp40 150 22×45 0.20 0.90 chi451hzn151mp45 150 25.4×30 0.20 0.88 chi451hzn151mq30 150 25.4×35 0.20 0.92 chi451hzn151mq35

450v 150 30×25 0.20 0.93 chi451hzn151mr25 180 22×50 0.20 1.01 chi451hzn181mp50 180 25.4×40 0.20 1.03 chi451hzn181mq40 180 30×30 0.20 1.03 chi451hzn181mr30 180 35×25 0.20 1.10 chi451hzn181ma25 220 25.4×45 0.20 1.16 chi451hzn221mq45 220 30×35 0.20 1.17 chi451hzn221mr35 220 35×30 0.20 1.24 chi451hzn221ma30 270 25.4×50 0.20 1.31 chi451hzn271mq50 270 30×40 0.20 1.33 chi451hzn271mr40 270 35×35 0.20 1.39 chi451hzn271ma35 330 30×45 0.20 1.51 chi451hzn331mr45 390 30×50 0.20 1.67 chi451hzn391mr50 390 35×40 0.20 1.73 chi451hzn391ma40 390 35×45 0.20 1.77 chi451hzn391ma45 470 35×50 0.20 1.98 chi451hzn471ma50 560 35×55 0.20 2.13 chi451hzn561ma55

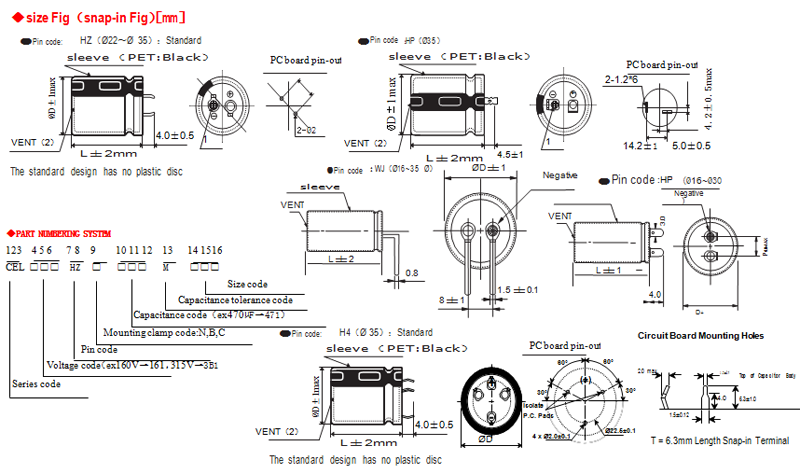

◆rated ripple current multipliers
      ●frequency multipliers

frequency （hz）	50	120	300	1k	10k	50k
160～250vdc	0.81	1.00	1.17	1.32	1.45	1.50
315～450vdc	0.77	1.00	1.16	1.30	1.41	1.43

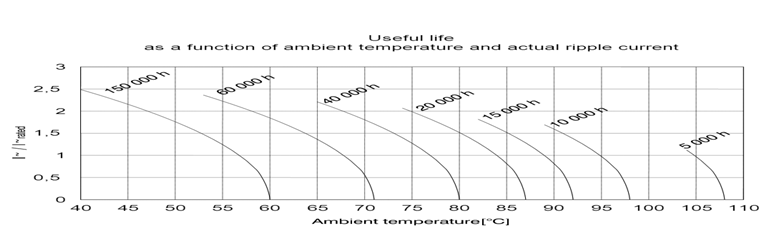

×the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise
  when long life performance is required in actual use,the rms ripple current has to be reduced
