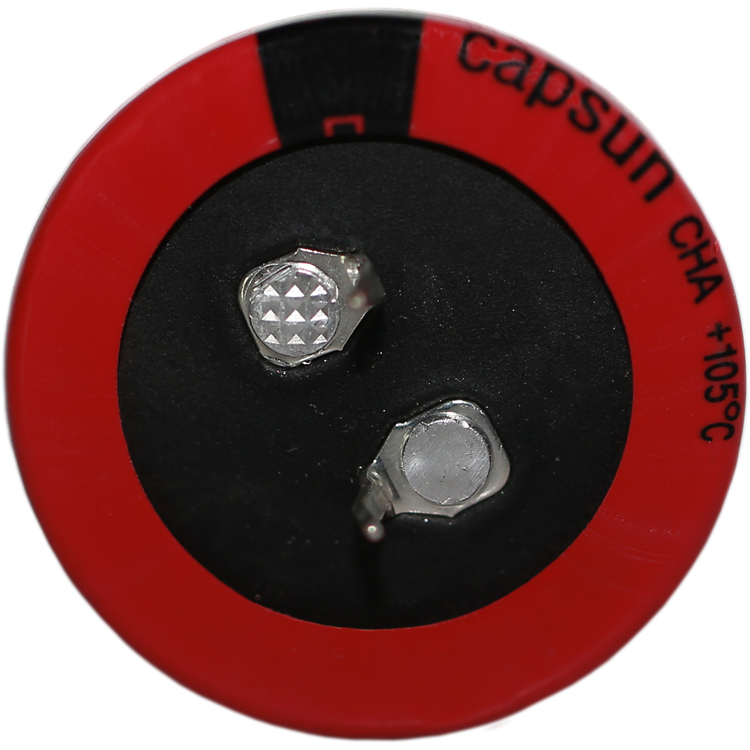

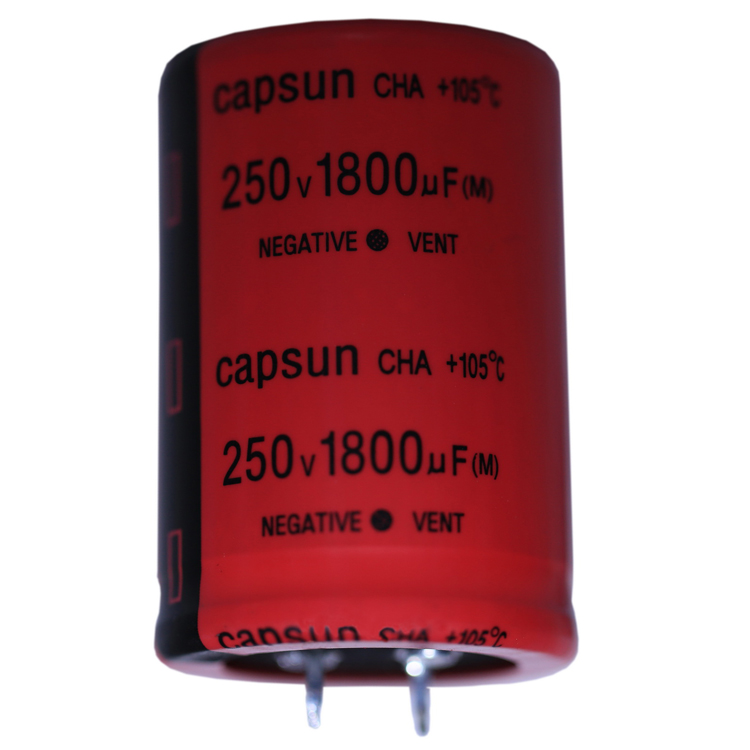

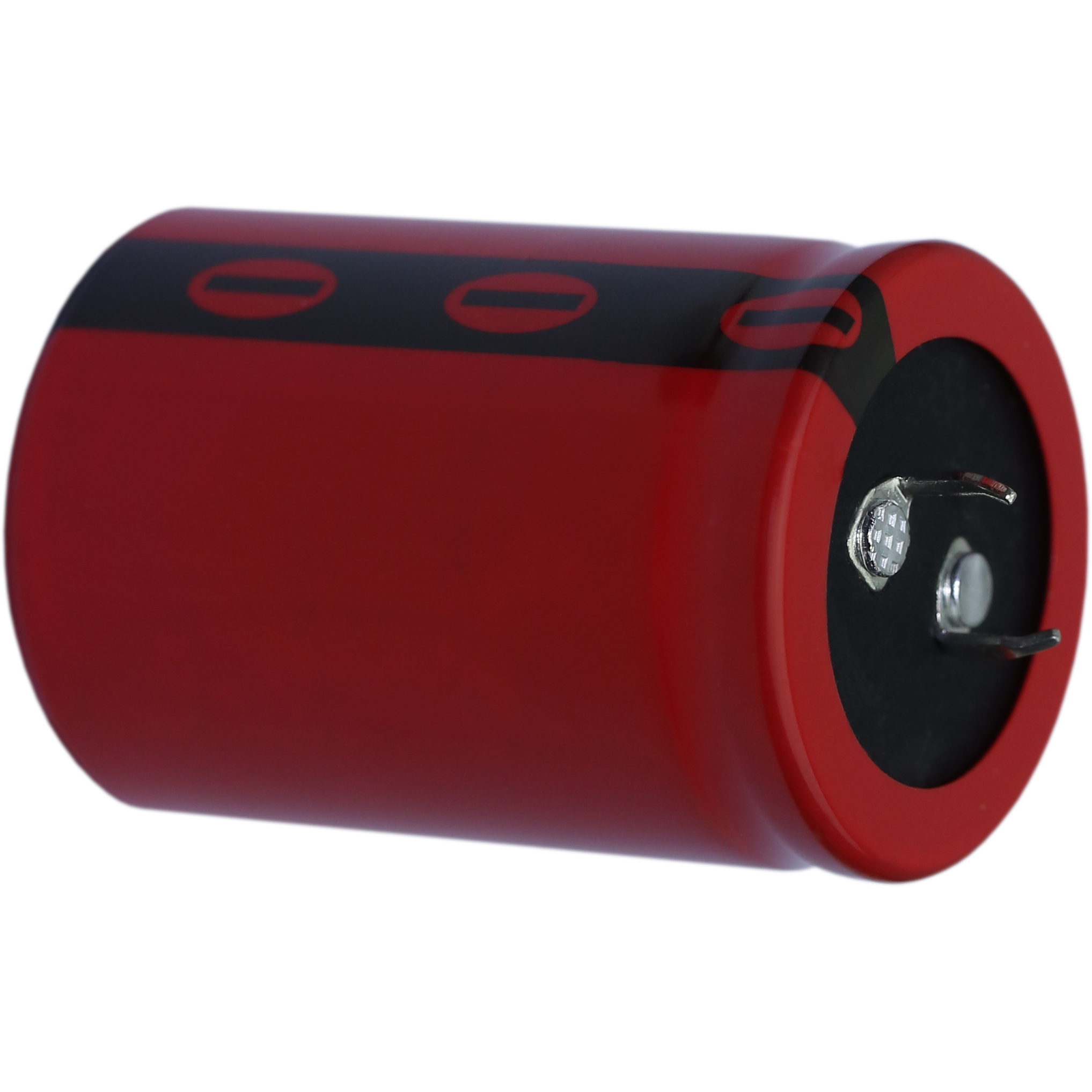

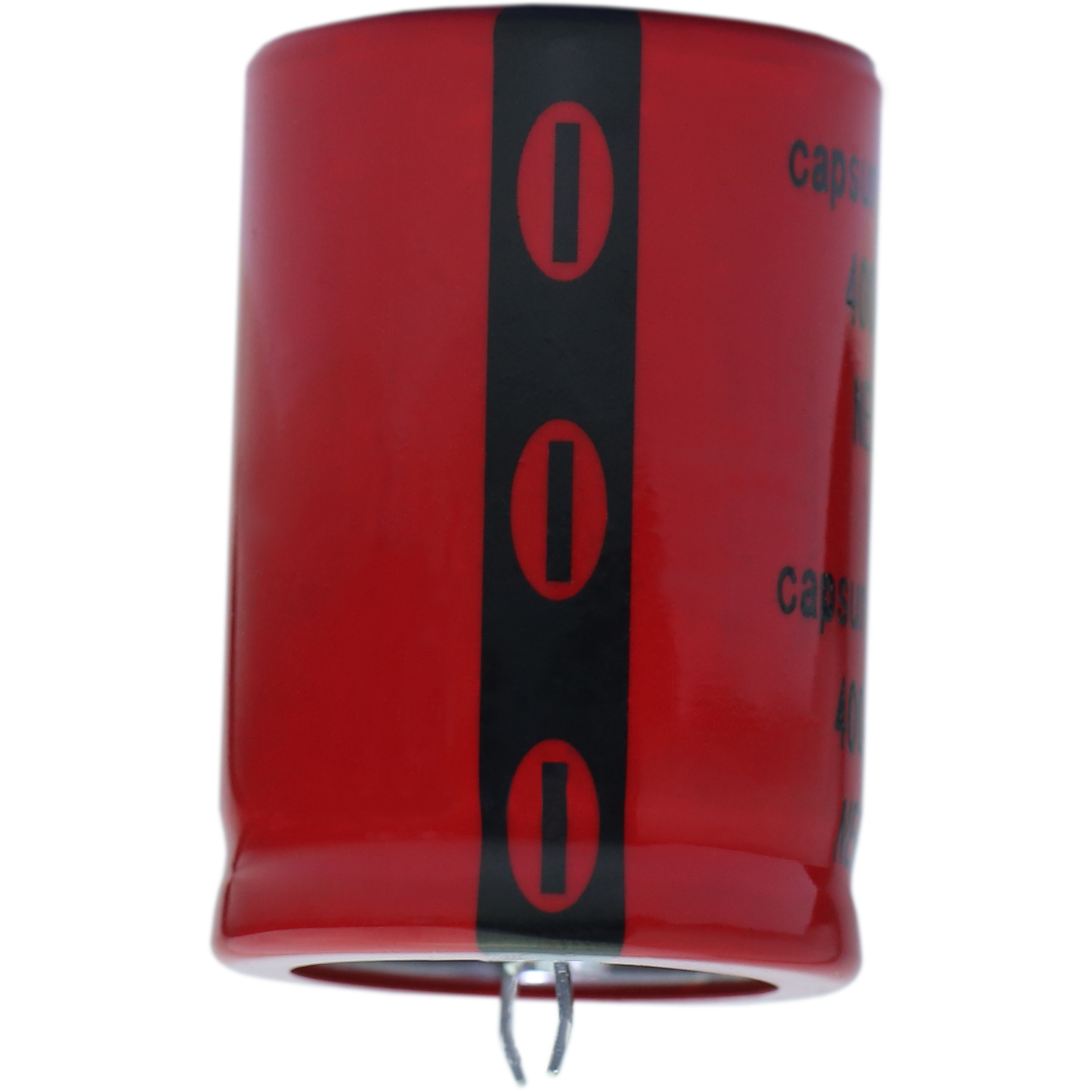

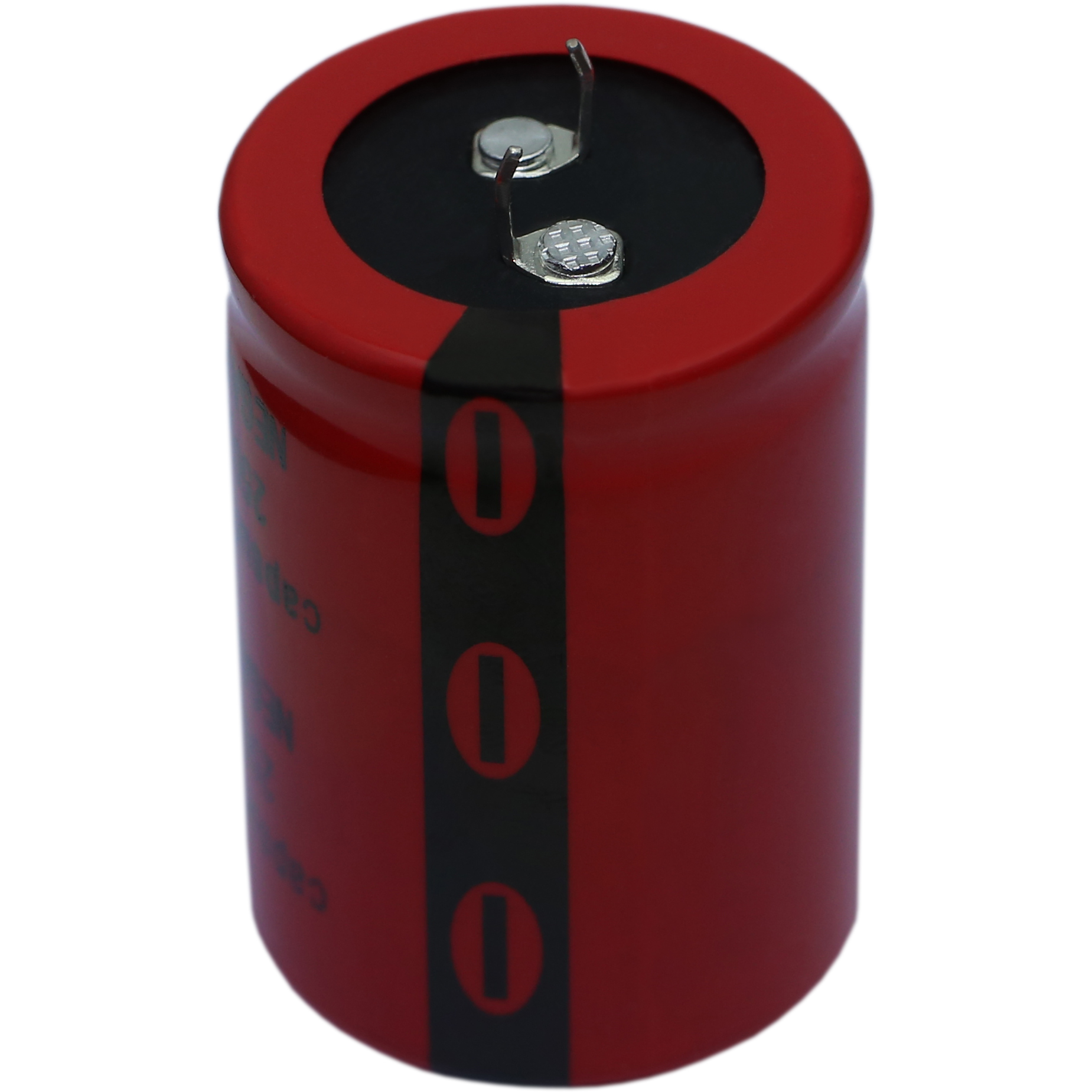

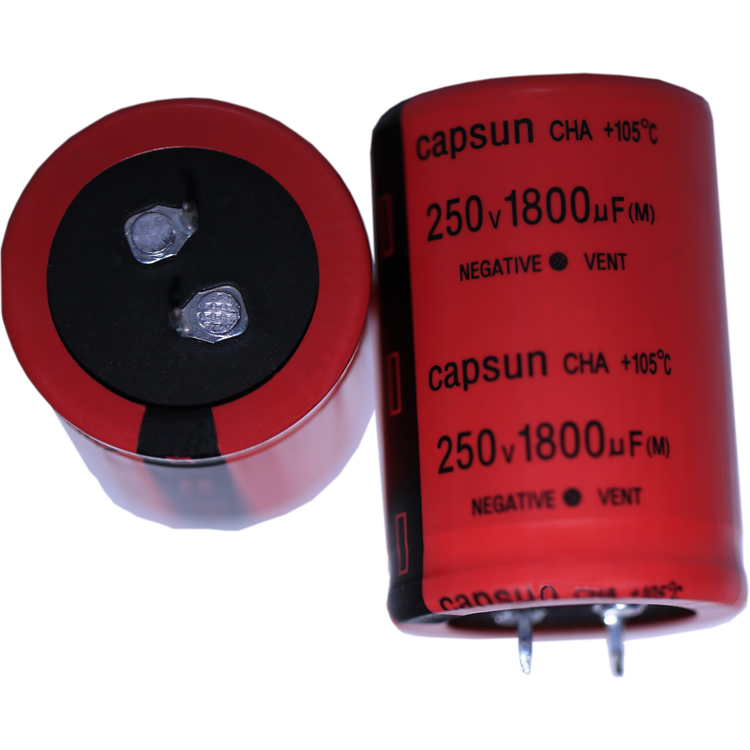

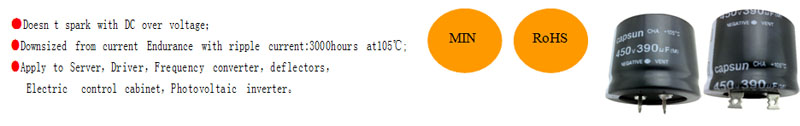

no sparks dc overvoltage, downsized aluminum electrolytic capacitor-足球看盘软件

105℃ 3000~6000hours

◆specific ations

items		characteristics
category temperature range		-40~ 105℃
rated voltage range		200~600vdc
capacitance tolerance		± 20%（m）                                                           20℃、120hz
leakage current		i=0.02cv or 5ma,whichever is smaller i: where, i : max. leakage current（µa）、c: nominal capacitance（µf）、rated voltage (v)at 20℃after 5 minutes)
dissipation factor（max）		≤specified                                                            20℃/120hz
low temperature characteristics		rated voltage（vdc） 200v 250v 400v 450v 500v 550v 600v z(-25℃)/z( 20℃)                    ≤4
endurance	the following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to dc voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) for 3,000 hours at 105℃。
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value
shelf life	the following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1000 hours at 105℃ without voltage applied. before the measurement, the capacitor shall be preconditioned by applying voltage according to item 4.1 of jis c 5101-4
	capacitance change		≤±20% of the initial value
	d.f. (tanδ)		≤300% of the initial specified value
	leakage current		≤the initial specified value




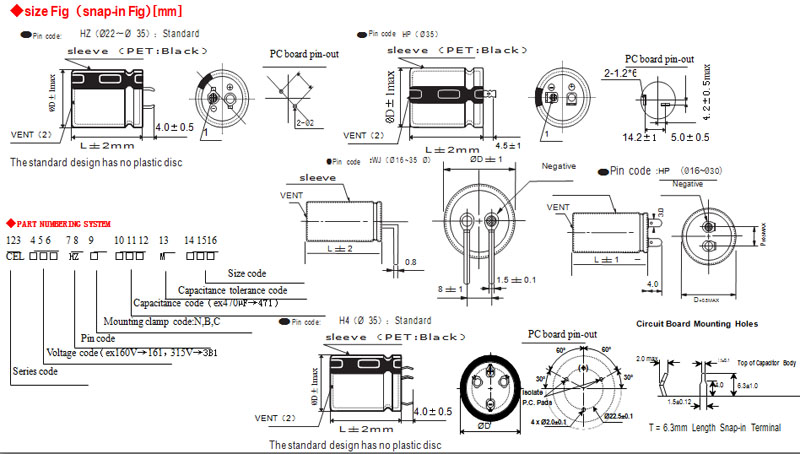

srandrad ratings

wv [vdc]	cap [μf]	case size d x l [mm]	tanδ120hz 20℃	ripple current ams/105℃, 120hz	par t no.
200	180	22×20	0.15	0.82	cha201hzn181mp20
	220	22×20	0.15	0.9	cha201hzn221mp20
	270	22×25	0.15	1.02	cha201hzn271mp25
	330	22×30	0.15	1.2	cha201hzn331mp30
	330	25.4×25	0.15	1.2	cha201hzn331mq25
	390	22×30	0.15	1.35	cha201hzn391mp30
	390	25.4×25	0.15	1.35	cha201hzn391mq25
	470	22×35	0.15	1.45	cha201hzn471mp35
	470	25.4×30	0.15	1.45	cha201hzn471mq30
	470	30×25	0.15	1.47	cha201hzn471mr25
	560	22×40	0.15	1.62	cha201hzn561mp40
	560	25.4×30	0.15	1.6	cha201hzn561mq30
	560	30×25	0.15	1.6	cha201hzn561mr25
	680	25.4×35	0.15	1.82	cha201hzn681mq35
	680	30×30	0.15	1.81	cha201hzn681mr30
	680	35×25	0.15	1.86	cha201hzn681ma25
	820	25.4×45	0.15	2.11	cha201hzn821mq45
	820	30×35	0.15	2.11	cha201hzn821mr35
	820	35×25	0.15	2.11	cha201hzn821ma25
	1000	30×35	0.15	2.4	cha201hzn102mr35
	1000	35×30	0.15	2.4	cha201hzn102ma30
	1200	30×45	0.15	2.69	cha201hzn122mr45
	1200	35×35	0.15	2.65	cha201hzn122ma35
250	120	22×20	0.15	0.68	cha251hzn121mp20
	180	22×25	0.15	0.87	cha251hzn181mp25
	180	25.4×20	0.15	0.93	cha251hzn181mq20
	220	22×30	0.15	1	cha251hzn181mp30
	270	22×35	0.15	1.14	cha251hzn271mp35
	270	25.4×25	0.15	1.13	cha251hzn271mq25
	270	30×25	0.15	1.13	cha251hzn271mr25
	270	35×20	0.15	1.25	cha251hzn271ma20
	330	22×40	0.15	1.28	cha251hzn271ma20
	330	25.4×30	0.15	1.29	cha251hzn331mq30
	390	22×45	0.15	1.42	cha251hzn391mp45
	390	25.4×35	0.15	1.46	cha251hzn391mq35
	390	30×25	0.15	1.52	cha251hzn391mr25
	390	35×20	0.15	1.62	cha251hzn391ma20
	470	25.4×40	0.15	1.64	cha251hzn471mq40
	470	30×30	0.15	1.67	cha251hzn471mr30
	560	25.4×45	0.15	1.82	cha251hzn561mq45
	560	30×35	0.15	1.87	cha251hzn561mr35
	560	35×25	0.15	1.99	cha251hzn561ma25
	680	30×40	0.15	2.12	cha251hzn681mr40
	680	35×30	0.15	2.19	cha251hzn681ma30
	820	30×45	0.15	2.39	cha251hzn821mr45
	820	35×35	0.15	2.42	cha251hzn821ma35
400	56	22×20	0.15	0.45	cha401hzn560mp20
	68	22×20	0.15	0.51	cha401hzn680mp20
	82	22×25	0.15	0.58	cha401hzn820mp25
	100	22×25	0.15	0.66	cha401hzn101mp25
	100	25.4×25	0.15	0.66	cha401hzn101mq25
	120	22×30	0.15	0.76	cha401hzn121mp30
	120	25.4×25	0.15	0.76	cha401hzn121mq25
	150	22×35	0.15	0.85	cha401hzn151mp35
	150	25.4×30	0.15	0.85	cha401hzn151mq30
	150	30×25	0.15	0.85	cha401hzn151mr25
	180	22×40	0.15	0.94	cha401hzn181mp40
	180	25.4×35	0.15	0.95	cha401hzn181mq35
	180	30×25	0.15	0.95	cha401hzn181mr25
	220	25.4×35	0.15	1.24	cha401hzn221mq35
	220	30×30	0.15	1.24	cha401hzn221mr30
	220	35×25	0.15	1.24	cha401hzn221ma25
	270	25.4×45	0.15	1.3	cha401hzn271mq45
	270	30×35	0.15	1.3	cha401hzn271mr35
	270	35×25	0.15	1.3	cha401hzn271ma25
	330	30×35	0.15	1.45	cha401hzn331mr35
	330	30×40	0.15	1.47	cha401hzn331mr40
	330	35×30	0.15	1.47	cha401hzn331ma30
450	82	25.4×25	0.15	0.61	cha451hzn820mq25
	120	25.4×30	0.15	0.76	cha451hzn121mq30
	120	30×25	0.15	0.77	cha451hzn121mr25
	150	25.4×35	0.15	0.88	cha451hzn151mq35
	180	25.4×40	0.15	0.99	cha451hzn181mq40
	180	30×30	0.15	0.97	cha451hzn181mr30
	180	30×35	0.15	1	cha451hzn181mr35
	220	30×35	0.15	1.3	cha451hzn221mr35
	220	35×25	0.15	1.2	cha451hzn221ma25
	270	30×40	0.15	1.28	cha451hzn271mr40
	270	35×30	0.15	1.3	cha451hzn271ma30
	330	35×35	0.15	1.4	cha451hzn331ma35
	390	35×40	0.15	1.6	cha451hzn391ma40
	420	35×50	0.15	1.56	cha451hzn421ma50
	470	35×50	0.15	1.63	cha451hzn471ma50
	560	35×60	0.15	1.75	cha451hzn561ma60
500	47	22×25	0.20	0.51	cha501hzn470mp25
	56	22×30	0.20	0.58	cha501hzn560mp30
	68	25.4×25	0.20	0.65	cha501hzn680mq25
	82	22×35	0.20	0.72	cha501hzn820mp35
	82	25.4×30	0.20	0.74	cha501hzn820mq30
	100	22×45	0.20	0.83	cha501hzn101mp45
	100	30×25	0.20	0.82	cha501hzn101mr25
	120	22×50	0.20	0.93	cha501hzn121mp50
	120	25.4×35	0.20	0.93	cha501hzn121mq35
	120	30×30	0.20	0.91	cha501hzn121mr30
	150	25.4×45	0.20	1.08	cha501hzn151mq45
	150	30×35	0.20	1.04	cha501hzn151mr35
	150	35×25	0.20	0.99	cha501hzn151ma25
	180	25.4×50	0.20	1.20	cha501hzn181mq50
	180	30×40	0.20	1.17	cha501hzn181mr40
	180	35×30	0.20	1.10	cha501hzn181ma30
	220	30×45	0.20	1.33	cha501hzn221mr45
	220	35×35	0.20	1.23	cha501hzn221ma35
	270	30×50	0.20	1.50	cha501hzn271mr50
	270	35×40	0.20	1.42	cha501hzn271ma40
	330	35×45	0.20	1.60	cha501hzn331ma45
	390	35×50	0.20	1.78	cha501hzn391ma50
	470	35×60	0.20	2.03	cha501hzn471ma60
550	82	22×35	0.20	0.72	cha551hzn820mp35
	82	25.4×30	0.20	0.74	cha551hzn820mq30
	100	22×45	0.20	0.83	cha551hzn101mp45
	100	25.4×35	0.20	0.85	cha551hzn101mq35
	100	30×25	0.20	0.82	cha551hzn101mr25
	120	22×50	0.20	0.93	cha551hzn121mp50
	120	25.4×40	0.20	0.95	cha551hzn121mq40
	120	30×30	0.20	0.91	cha551hzn121mr30
	120	35×25	0.20	0.88	cha551hzn121ma25
	150	25.4×45	0.20	0.08	cha551hzn151mq45
	150	30×35	0.20	1.04	cha551hzn151mr35
	180	25.4×50	0.20	1.20	cha551hzn181mq50
	180	30×40	0.20	1.17	cha551hzn181mr40
	180	35×30	0.20	1.10	cha551hzn181ma30
	220	30×45	0.20	1.33	cha551hzn221mr45
	220	35×35	0.20	1.23	cha551hzn221ma35
	270	30×50	0.20	1.50	cha551hzn271mr50
	270	35×40	0.20	1.42	cha551hzn271ma40
	330	35×45	0.20	1.60	cha551hzn331ma45
	330	35×50	0.20	1.64	cha551hzn331ma50
	470	35×60	0.20	2.03	cha551hzn471ma60
600	100	30×30	0.20	0.83	cha601hzn101mr30
	100	35×25	0.20	0.85	cha601hzn101ma25
	120	30×35	0.20	0.93	cha601hzn121mr35
	150	30×40	0.20	1.07	cha601hzn151mr40
	150	35×30	0.20	1.06	cha601hzn151ma30
	180	30×45	0.20	1.20	cha601hzn181mr45
	180	30×50	0.20	1.22	cha601hzn181mr50
	180	35×35	0.20	1.18	cha601hzn181ma35
	220	30×60	0.20	1.40	cha601hzn221mr60
	220	35×40	0.20	1.35	cha601hzn221ma40
	220	35×45	0.20	1.38	cha601hzn221ma45
	270	35×50	0.20	1.56	cha601hzn271ma50
	330	35×60	0.20	1.79	cha601hzn331ma60
	470	35×65	0.20	1.88	cha601hzn471ma65

◆rated ripple current multipliers
 ●frequency multipliers

frequency （hz）	50	120	300	1k	10k	50k
200～600vdc	0.77	1.00	1.16	1.30	1.41	1.43





×the endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise. when long life
performance is required in actual use,the rms ripple current has to be reduced

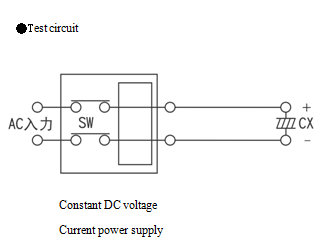

  ◆dc overvoltage test conditions
the vent will operate and the capacitor shall become an open circuit without burning materials。
when the following test dc voltage is applied
 ●test dc voltage

rated voltage	nominal capacitance	current limit	test voltage
200vdc	<330µf	2a	300/375vdc
	330µf≦c<470µf	4a
	≧470µf	7a
250vdc	<330µf	2a	350/450vdc
	330µf≦c<470µf	4a
	≧470µf	7a
400vdc	<100µf	2a	500/600vdc
	100µf≦c<220µf	4a
	≧220µf	7a
450vdc	<100µf	2a	550/675vdc
	100µf≦c<220µf	4a
	≧220µf	7a
